Lexus ES: Terminals Of Ecu
TERMINALS OF ECU
CHECK SWING GRILLE ACTUATOR ASSEMBLY

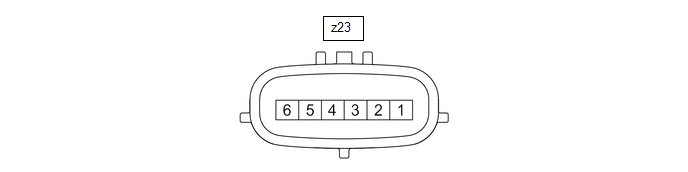

(a) Disconnect the z23 swing grille actuator assembly connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
Tester Connection | Wiring Color | Terminal Description | Condition | Specified Condition |
z23-1 (+B) - Body ground | - | Auxiliary battery power supply | Power switch off | 11 to 14 V |
z23-3 (GND) - Body ground | - | Ground | Always | Below 1 Ω |
