TERMINALS OF ECU
CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
.png)
(a) Disconnect the MB main body ECU (multiplex network body ECU) connector.
Click here .gif)
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connectors disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| MB-11 (GND1) - Body ground | - | Ground | Always | Below 1 Ω |
| MB-31 (BECU) - Body ground | - | Battery power supply | Always | 11 to 14 V |
| MB-30 (ACC) - Body ground | - | ACC power supply | Engine switch on (IG) | 11 to 14 V |
| Engine switch off | Below 1 V | |||
| MB-32 (IG) - Body ground | - | IG power supply | Engine switch on (IG) | 11 to 14 V |
| Engine switch off | Below 1 V |
(c) Reconnect the MB main body ECU (multiplex network body ECU) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| 3D-25 - Body ground | BE - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |
| 3D-17 - Body ground | L - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

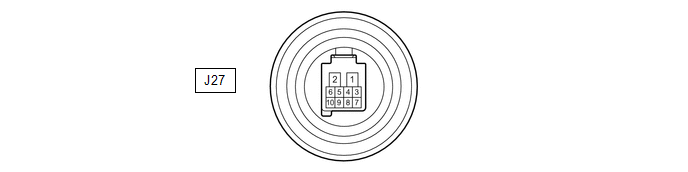

CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR)
(a) Disconnect the J27 power window regulator motor assembly (driver door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| J27-2 (B) - Body ground | GR - Body ground | Battery power supply | Always | 11 to 14 V |
| J27-1 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the J27 power window regulator motor assembly (driver door) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| J27-9 (LIN) - Body ground | G - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

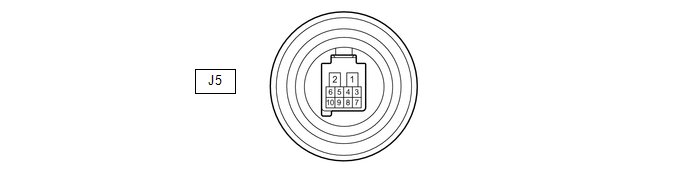

CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR)
(a) Disconnect the J5 power window regulator motor assembly (front passenger door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| J5-2 (B) - Body ground | GR - Body ground | Battery power supply | Always | 11 to 14 V |
| J5-1 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the J5 power window regulator motor assembly (front passenger door) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| J5-9 (LIN) - Body ground | P - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

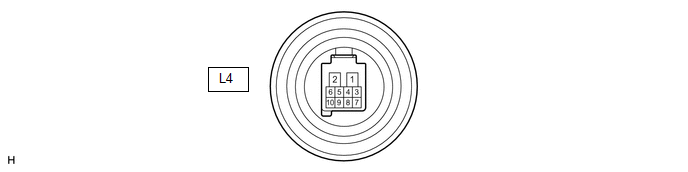

CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR)
.png)
(a) Disconnect the L4 power window regulator motor assembly (rear RH door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| L4-2 (B) - Body ground | B - Body ground | Battery power supply | Always | 11 to 14 V |
| L4-1 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the L4 power window regulator motor assembly (rear RH door) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| L4-9 (LIN) - Body ground | P - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

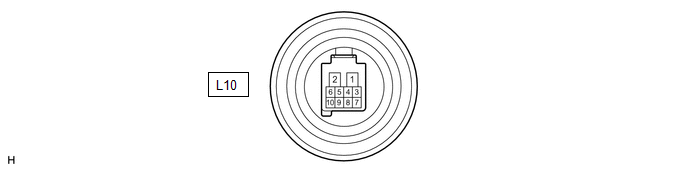

CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR)
.png)
(a) Disconnect the L10 power window regulator motor assembly (rear LH door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| L10-2 (B) - Body ground | B - Body ground | Battery power supply | Always | 11 to 14 V |
| L10-1 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the L10 power window regulator motor assembly (rear LH door) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| L10-9 (LIN) - Body ground | P - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

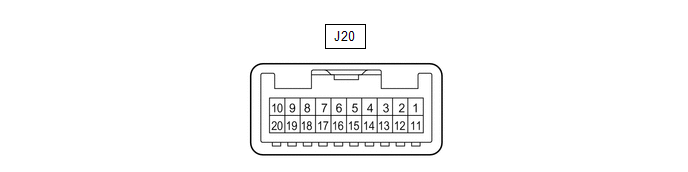

CHECK MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
(a) Disconnect the J20 multiplex network master switch assembly connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| J20-11 (B) - Body ground | LA-R - Body ground | Battery power supply | Always | 11 to 14 V |
| J20-12 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the J20 multiplex network master switch assembly connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| J20-17 (LIN1) - Body ground | P - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

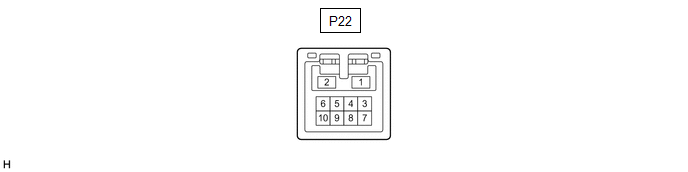

CHECK SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) (w/ Sliding Roof System)
.png)
(a) Disconnect the P22 sliding roof ECU (sliding roof drive gear sub-assembly) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P22-1 (B) - Body ground | B - Body ground | Battery power supply | Always | 11 to 14 V |
| P22-2 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the P22 sliding roof ECU (sliding roof drive gear sub-assembly) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P22-7 (MPX1) - Body ground | LA-P - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

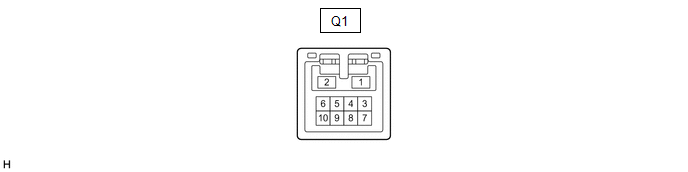

CHECK SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) (w/ Panoramic Moon Roof System)
(a) Disconnect the Q1 sliding roof ECU (sliding roof drive gear assembly) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| Q1-1 (B) - Body ground | L - Body ground | Battery power supply | Always | 11 to 14 V |
| Q1-2 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the Q1 sliding roof ECU (sliding roof drive gear assembly) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| Q1-7 (MPX1) - Body ground | B - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

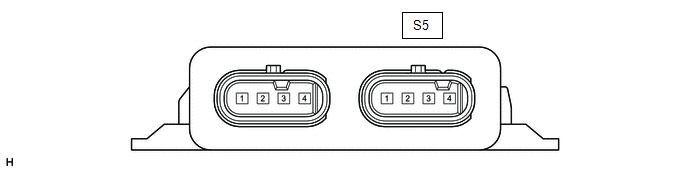

CHECK KICK DOOR CONTROL SENSOR (w/ Power Trunk Lid System)
.png)
(a) Disconnect the S5 kick door control sensor connector.
(b) Measure the resistance and voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| S5-1 (B) - Body ground | B - Body ground | Battery power supply | Always | 11 to 14 V |
| S5-4 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the S5 kick door control sensor connector.
(d) Measure the pulse according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| S5-2 (LIN) - Body ground | G - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

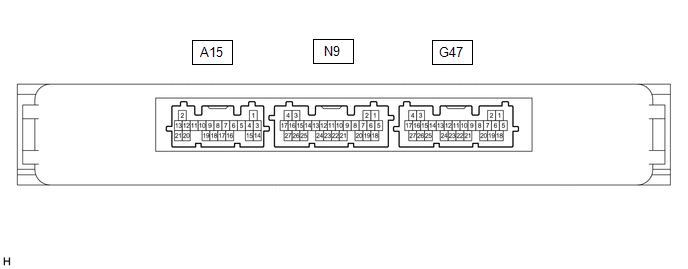

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
.png)
(a) Disconnect the G47 certification ECU (smart key ECU assembly) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G47-4 (+B) - Body ground | W - Body ground | Battery power supply | Always | 11 to 14 V |
| G47-18 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the G47 certification ECU (smart key ECU assembly) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G47-13 (LIN) - Body ground | B - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

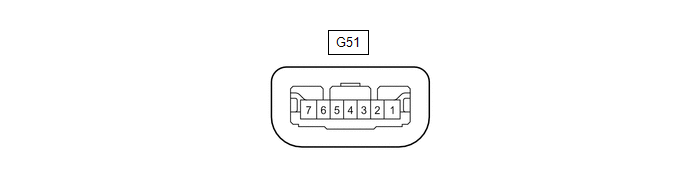

CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)
.png)
(a) Disconnect the G51 steering lock ECU (steering lock actuator or upper bracket assembly) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G51-7 (B) - Body ground | W - Body ground | Battery power supply | Always | 11 to 14 V |
| G51-1 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the G51 steering lock ECU (steering lock actuator or upper bracket assembly) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G51-5 (LIN) - Body ground | B - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |

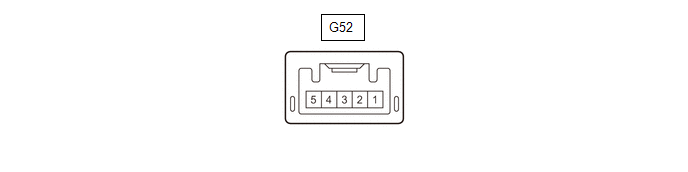

CHECK ID CODE BOX (IMMOBILISER CODE ECU)
.png)
(a) Disconnect the G52 ID code box (immobiliser code ECU) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G52-5 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| G52-1 (+B) - Body ground | G - Body ground | +B power supply | Always | 11 to 14 V |
(c) Reconnect the G52 ID code box (immobiliser code ECU) connector.
(d) Check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G52-2 (LIN1) - Body ground | B - Body ground | LIN communication line | Engine switch on (IG) | Pulse generation |
