Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (lubrication) / Oil Level Sensor / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during engine oil level sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*1

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

Replacement of ECM

Vehicle Identification Number (VIN) registration

MIL comes on

ECU communication ID registration (Immobiliser system)

Engine start function

  • Replacement of engine assembly
  • Gas leak from exhaust system is repaired

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

Replacement of automatic transaxle assembly
  • Perform reset memory
  • Input transaxle compensation code into ECM
  • Perform road test to allow ECM to learn
  • Large shift shock
  • Deterioration of fuel efficiency

for Initialization:

for Registration:

Replacement of ECM

(If transaxle compensation code read from ECM)
  • Perform reset memory*2
  • Transfer transaxle compensation code
  • Perform road test to allow ECM to learn

Replacement of ECM

(If transaxle compensation code not read from ECM)
  • Perform reset memory*2
  • Reset transaxle compensation code
  • Perform road test to allow ECM to learn

Replacement of ECM

Code registration (Smart access system with push-button start (for Start Function, Gasoline Model)
  • Wireless Door Lock Control System
  • Smart Access System with Push-button Start (for Entry Function, Gasoline Model)
  • Smart Access System with Push-button Start (for Start Function, Gasoline Model)
  • Steering lock function
  • Telematics System

Replacement of automatic transaxle fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

Suspension, tires, etc.

(The vehicle height changes because of suspension or tire replacement)

Rear television camera assembly optical axis adjustment (Back camera position setting)

Parking assist monitor system

for Initialization:

for Calibration:

Perform headlight ECU sub-assembly LH initialization

Lighting system

Front wheel alignment adjustment
  1. Perform "Reset Memory".
  2. Perform acceleration sensor zero point calibration and store system information memorization.
  • VSC is disabled or malfunctions
  • DTCs are output
  • Slip indicator light illuminates
  • ABS warning light illuminates

  • *1: When performing learning using the Techstream.

    Click here

  • *2: Not necessary when ECM replaced with new one

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)

PROCEDURE

1. INSTALL ENGINE ASSEMBLY TO ENGINE STAND

Click here

2. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

Click here

3. REMOVE OIL STRAINER SUB-ASSEMBLY

Click here

4. REMOVE ENGINE OIL LEVEL SENSOR

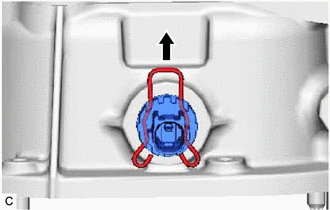

(a) Remove the clip from the engine oil level sensor.

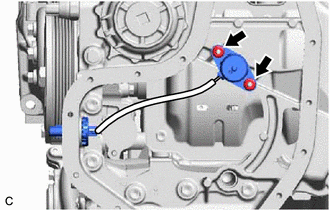

(b) Remove the 2 nuts and engine oil level sensor from the oil pan sub-assembly.
