Lexus ES: Terminals Of Ecu
TERMINALS OF ECU
NOTICE:
- DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the Techstream once the inspection has been completed.
- Do not apply excessive force to the forward recognition camera connector.
.png)

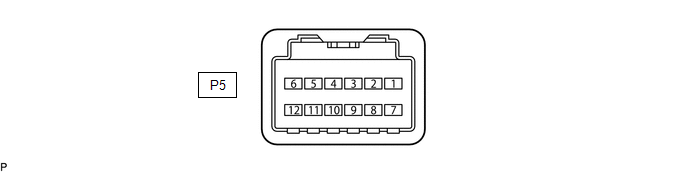

CHECK FORWARD RECOGNITION CAMERA
(a) Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P5-7 (IGB) - P5-10 (GND) | LA-P - LA | Power source | Power switch on (IG) | 11 to 14 V |
| Power switch off | Below 1 V | |||
| P5-1 (HTR) - P5-10 (GND) | B - LA | Forward recognition with heater hood sub-assembly operation signal | Power switch on (IG) Forward recognition with heater hood sub-assembly not operating | 11 to 14 V |
| Power switch on (IG) Forward recognition with heater hood sub-assembly operating | Below 1 V | |||
| P5-10 (GND) - Body ground | LA - Body ground | Ground | Always | Below 1 Ω |
(b) Measure the waveform according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P5-2 (STRV) - P5-10 (GND) | P - LA | LIN communication signal | Power switch on (IG) | Pulse generation |
(c) Check for pulses according to the value(s) in the table below.
HINT:
If the waveform is not similar to that shown in the illustration, a malfunction of a CAN bus line, terminating resistor, or the forward recognition camera is suspected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P5-5 (CA1P) - P5-10 (GND) | L - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 1) |
| P5-11 (CA1N) - P5-10 (GND) | W - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 2) |
| P5-6 (CANH) - P5-10 (GND) | B - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 1) |
| P5-12 (CANL) - P5-10 (GND) | W - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 2) |

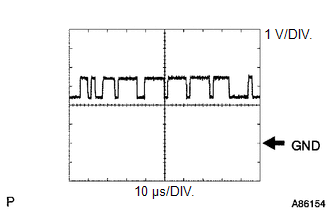

(1) WAVEFORM 1
| Item | Content |
|---|---|
| Terminal Name | Between P5-5 (CA1P) and P5-10 (GND) Between P5-6 (CANH) and P5-10 (GND) |
| Tester Range | 1 V/DIV., 10 μs/DIV. |
| Condition | Power switch on (IG) |
HINT:
The waveform varies depending on the CAN communication signal.
.png)

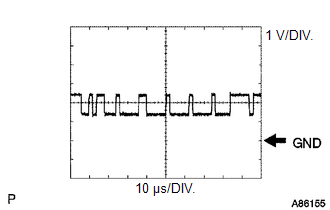

(2) WAVEFORM 2
| Item | Content |
|---|---|
| Terminal Name | Between P5-11 (CA1N) and P5-10 (GND) Between P5-12 (CANL) and P5-10 (GND) |
| Tester Range | 1 V/DIV., 10 μs/DIV. |
| Condition | Power switch on (IG) |
HINT:
The waveform varies depending on the CAN communication signal.
.png)
NOTICE:
DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the Techstream once the inspection has been completed.

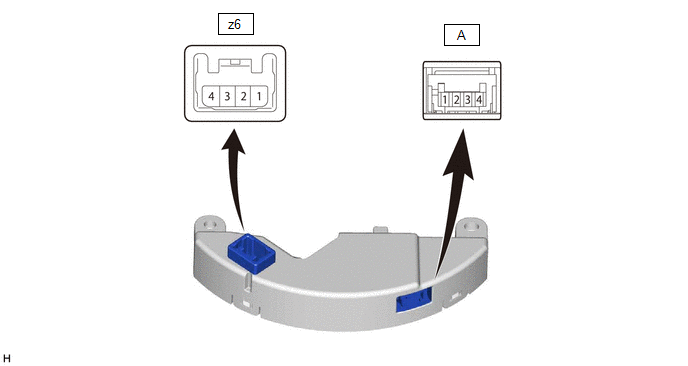

CHECK STEERING VIBRATION ECU
.png)
(a) Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| z6-4 (IG) - z6-1 (GND) | Power source | Power switch on (IG) | 11 to 14 V |
| Power switch off | Below 1 V | ||
| z6-1 (GND) - Body ground | Ground | Always | Below 1 Ω |
| A-1 (M+) - z6-1 (GND) | Steering vibration operation signal | Power switch on (IG) Steering vibration operating | Pulse generation |
| Power switch on (IG) Steering vibration not operating | Below 1 V |
(b) Measure the waveform according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| z6-2(LIN1) - z6-1(GND) | LIN communication signal | Power switch on (IG) | Pulse generation |
