Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Vehicle Interior / Lighting (ext) / Lighting System (for Hv Model) / System Diagram

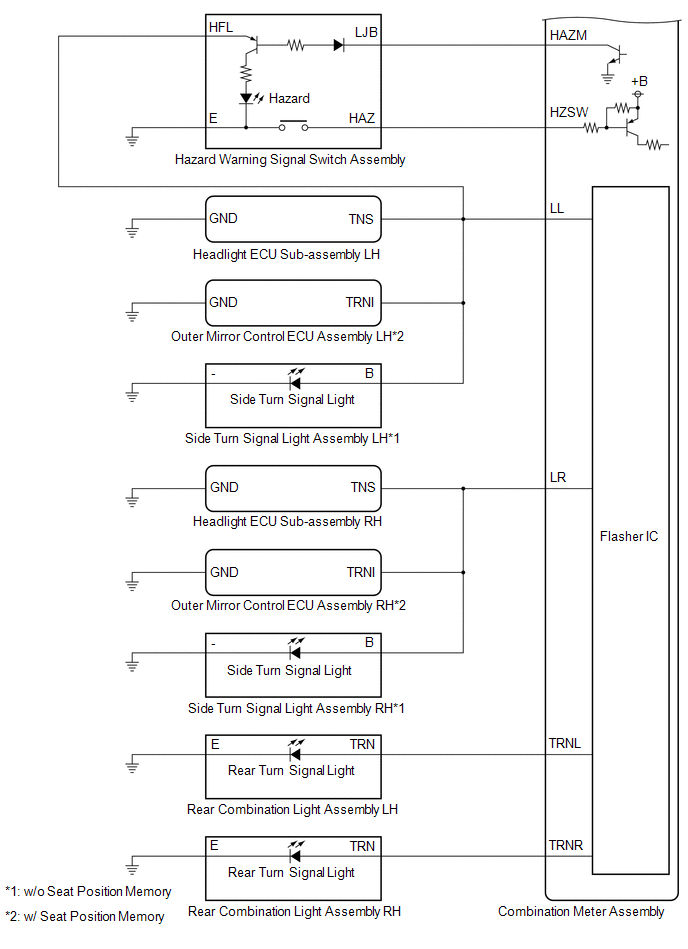

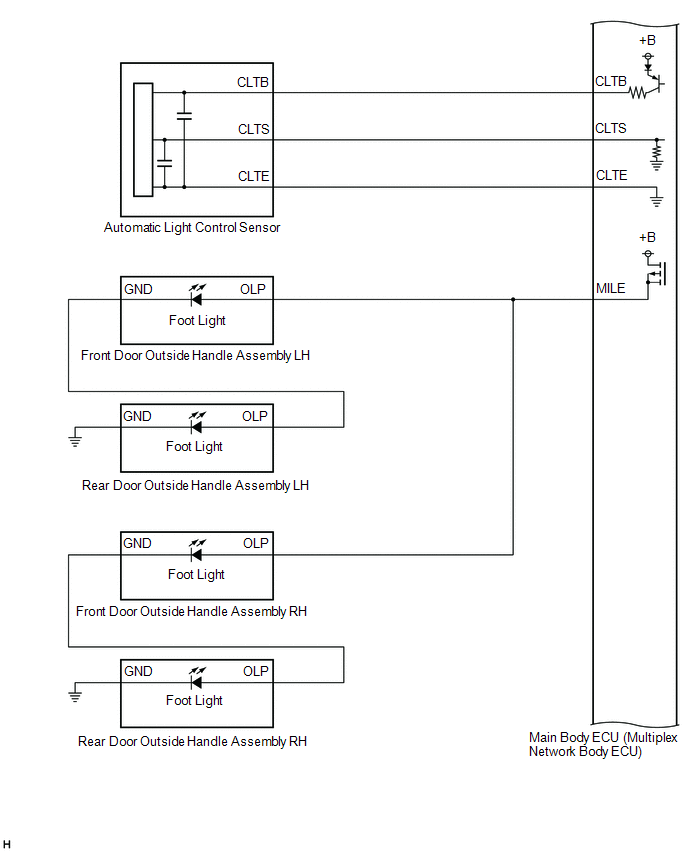

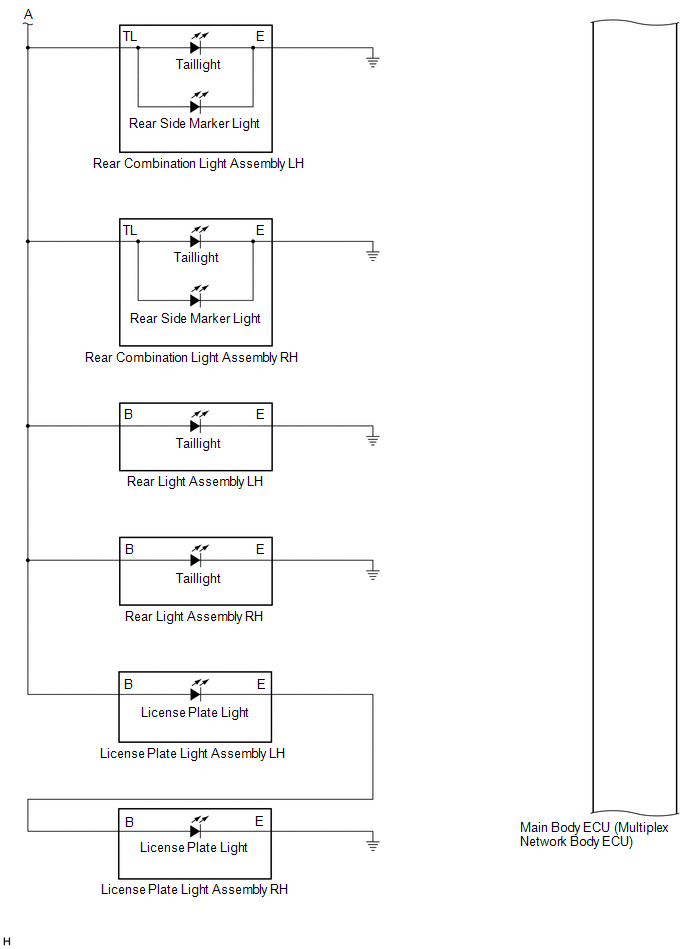

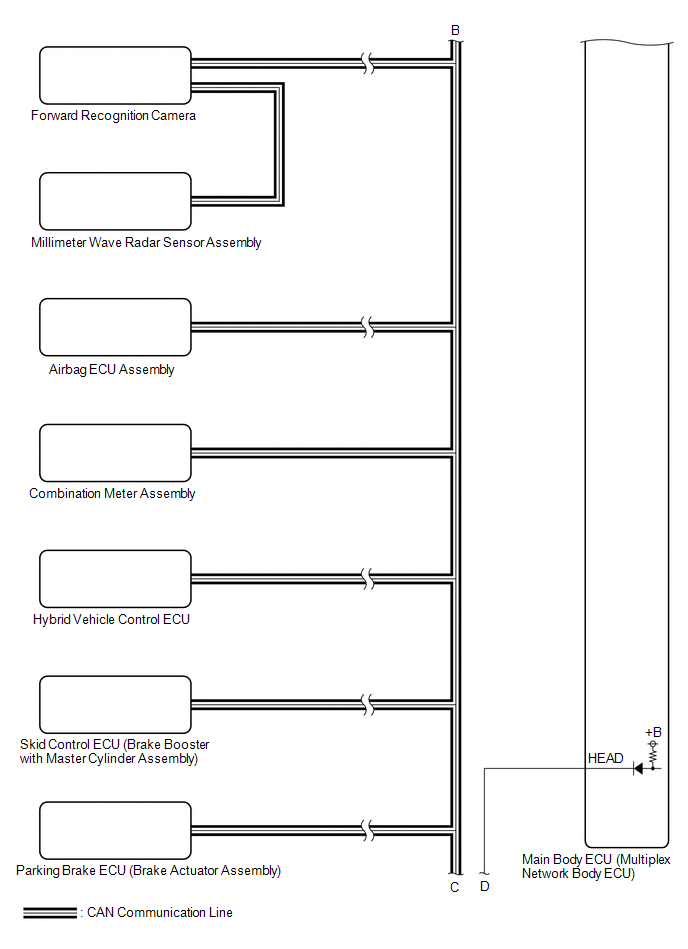

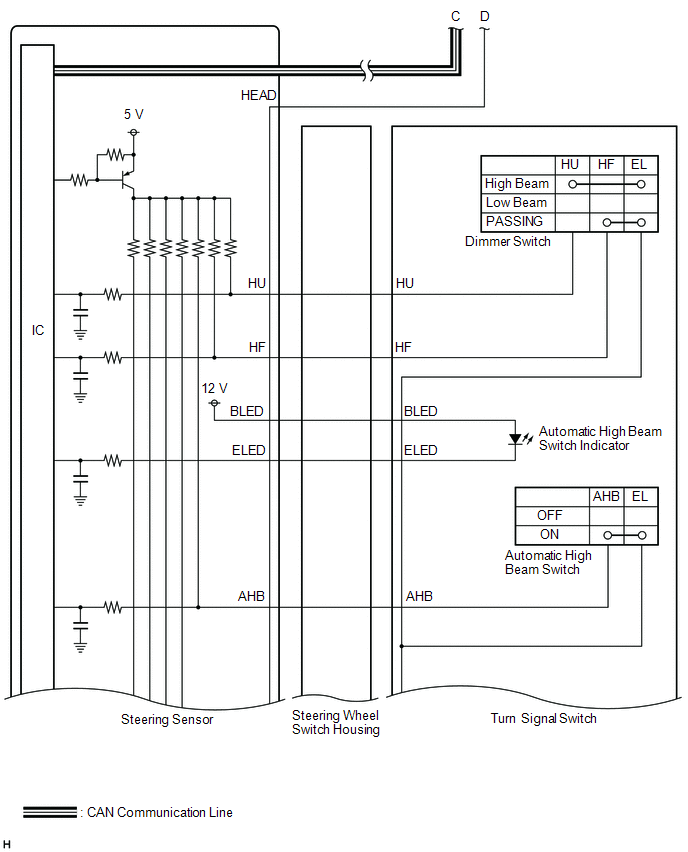

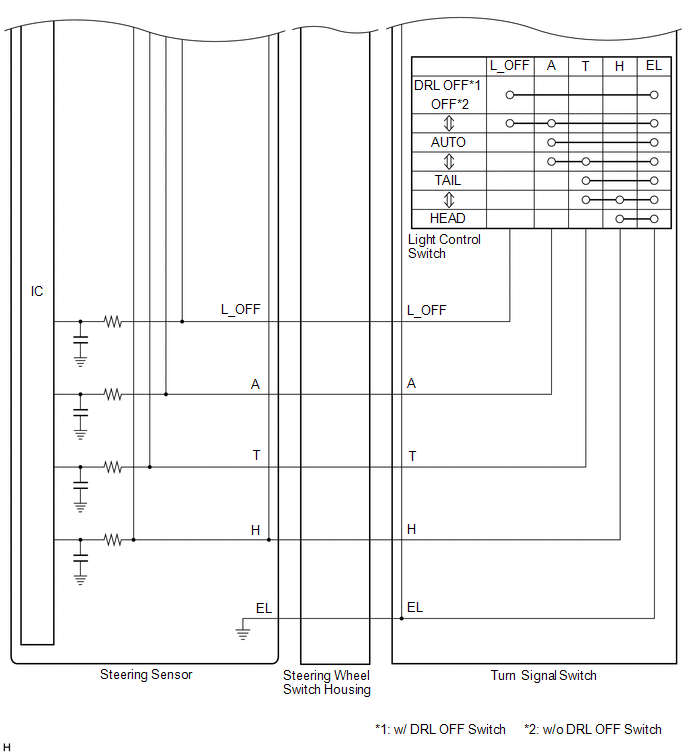

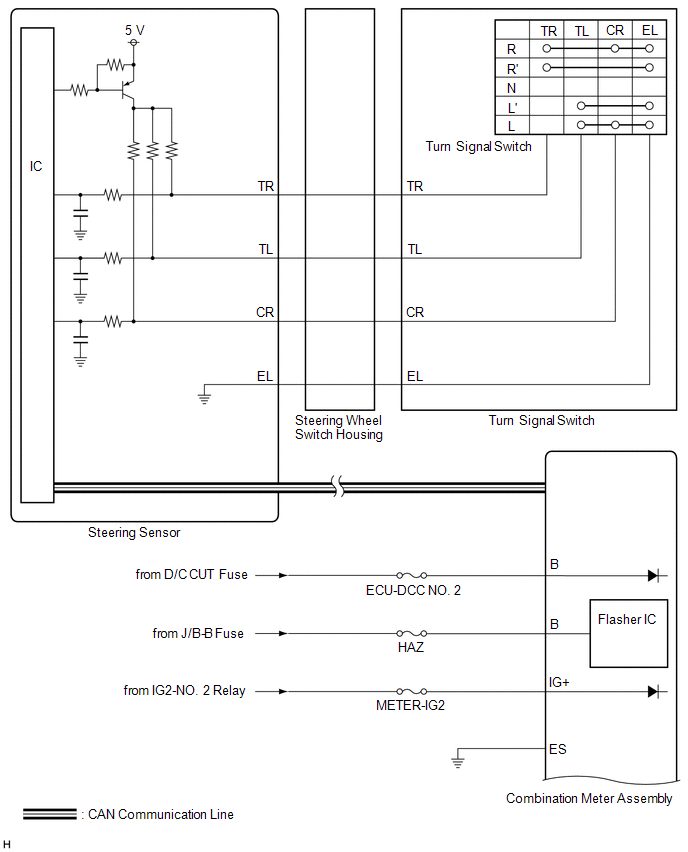

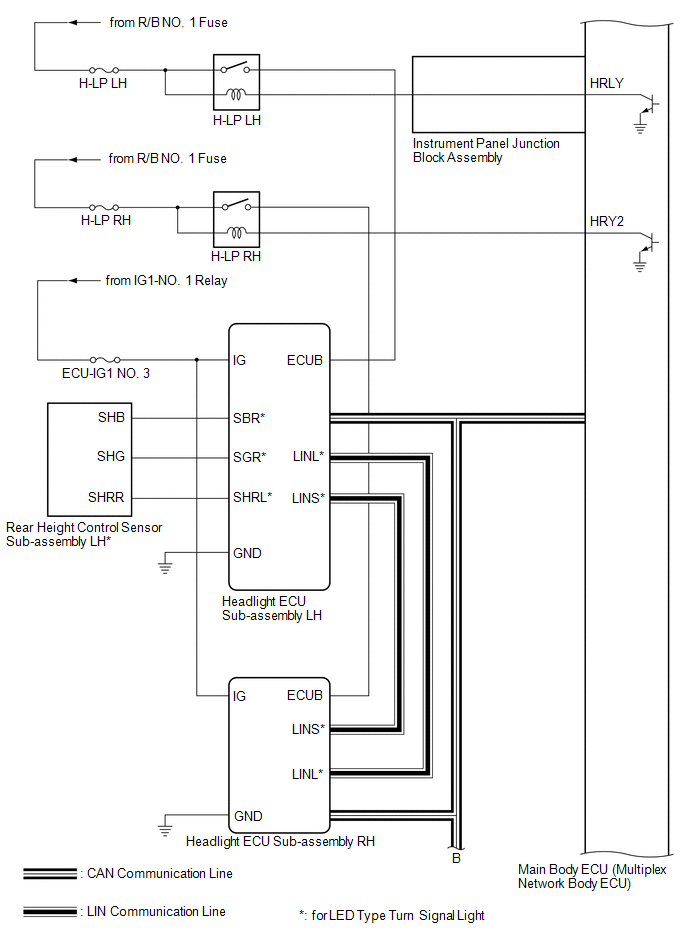

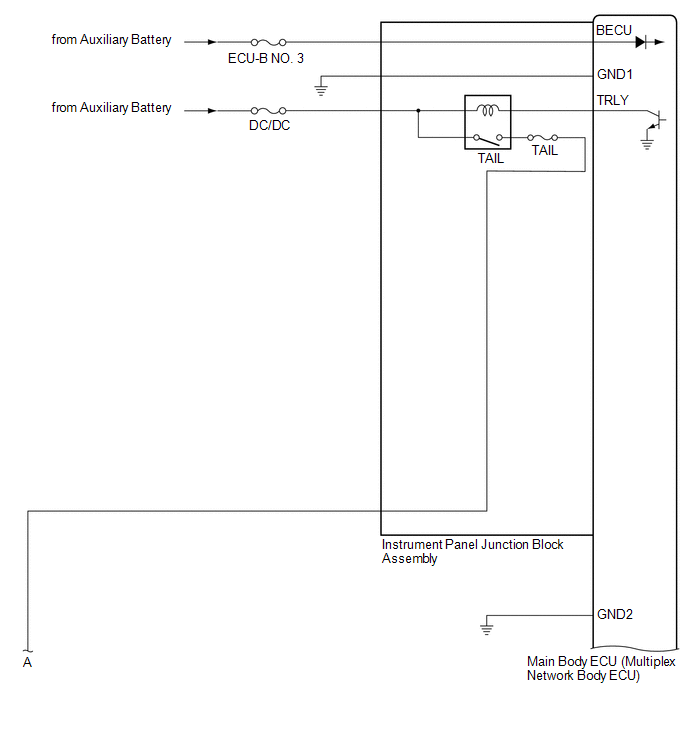

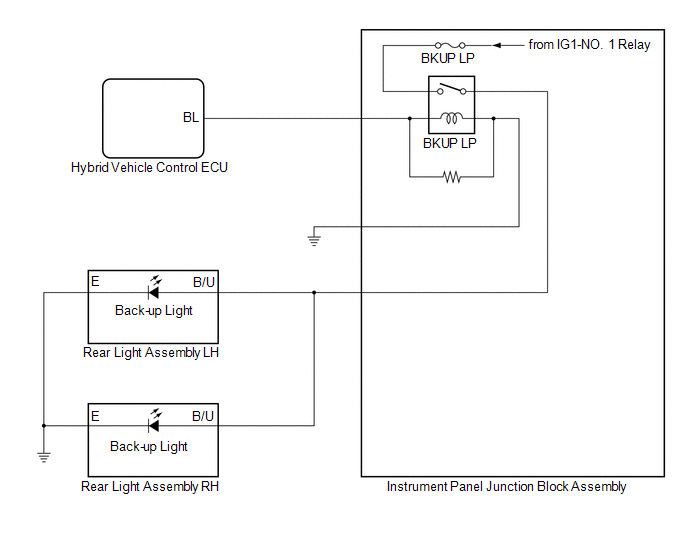

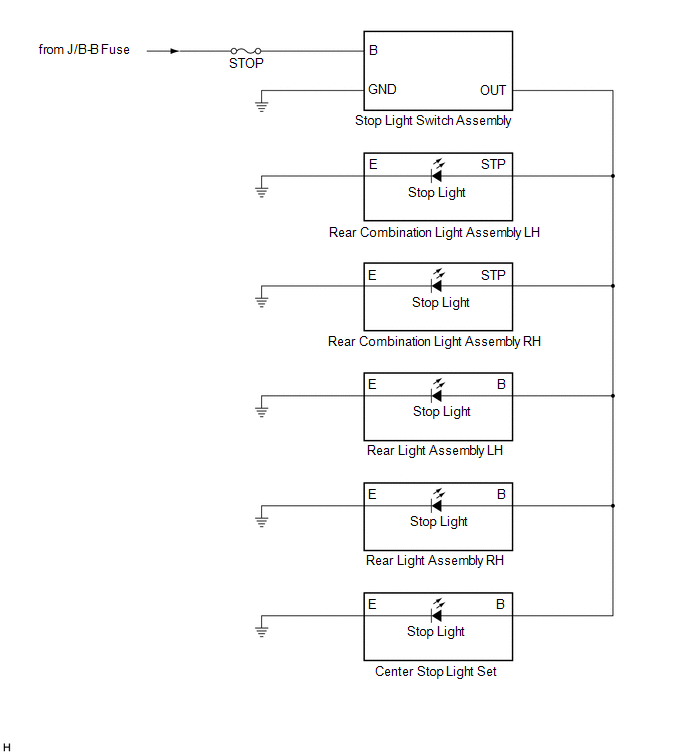

SYSTEM DIAGRAM
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)

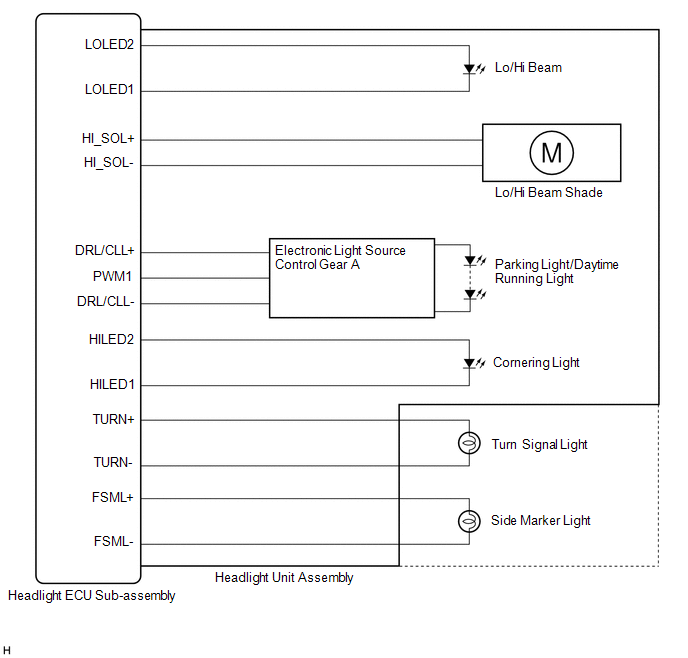

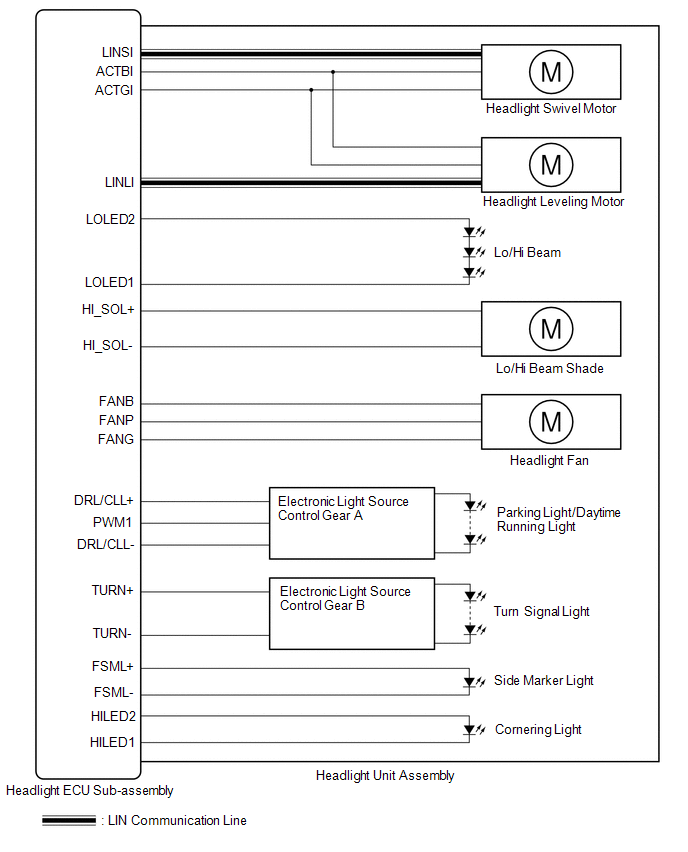

HEADLIGHT ASSEMBLY CIRCUIT (for LED Type Turn Signal Light)
.png)
HEADLIGHT ASSEMBLY CIRCUIT (for Bulb Type Turn Signal Light) (for TMC Made)
.png)
HEADLIGHT ASSEMBLY CIRCUIT (for Bulb Type Turn Signal Light) (for TMMK Made)
.png)
