Lexus ES: System Diagram

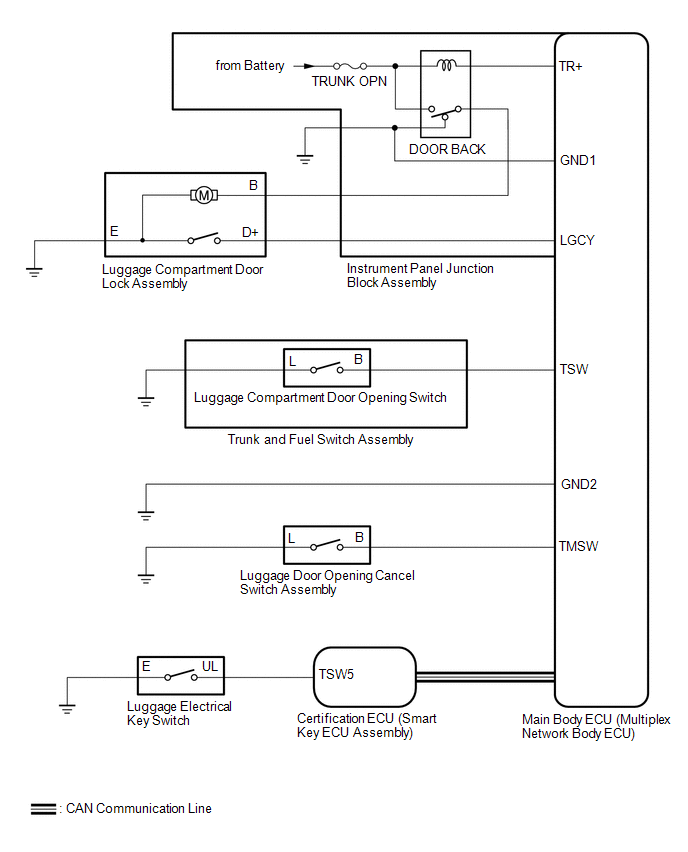

SYSTEM DIAGRAM
![](images/books/5679/B516873E02.png)
Communication Table
Sender | Receiver | Signal | Line |
Certification ECU (Smart Key ECU Assembly) | Main Body ECU (Multiplex Network Body ECU) | Luggage compartment door lock assembly open operation signal | CAN |
