Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Vehicle Interior / Door / Hatch / Fuel Lid Opener System (for Hv Model) / System Diagram

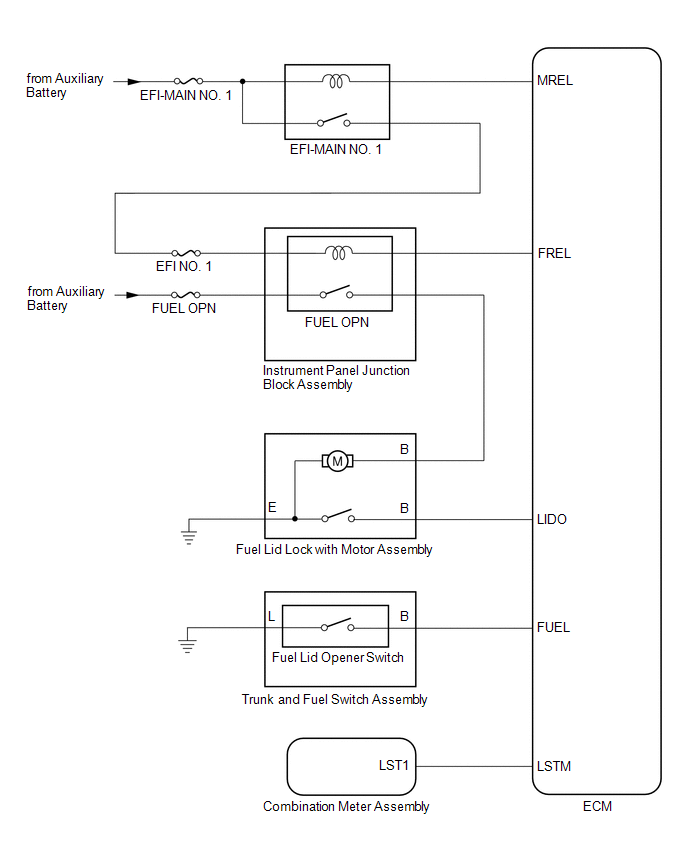

SYSTEM DIAGRAM
READ NEXT:
System Description
SYSTEM DESCRIPTION When the trunk and fuel switch assembly (fuel lid opener switch) is operated, the pressure in the fuel tank is decreased and a message is displayed on the multi-information display.
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT HINT:
Use the following procedure to troubleshoot the fuel lid opener system.
*: Use the Techstream.
PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP
NEXT
Operation Check
OPERATION CHECK CHECK FUEL LID OPENER SYSTEM Push the trunk and fuel switch assembly (fuel lid opener switch) and check that messages are displayed on the multi-information display in the combination
