Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Cruise Control / Front Camera System (for Hv Model) / System Diagram

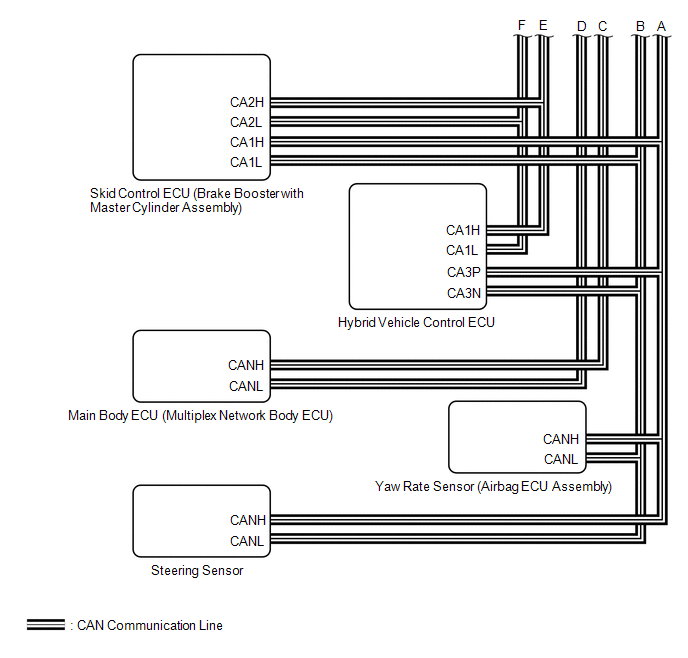

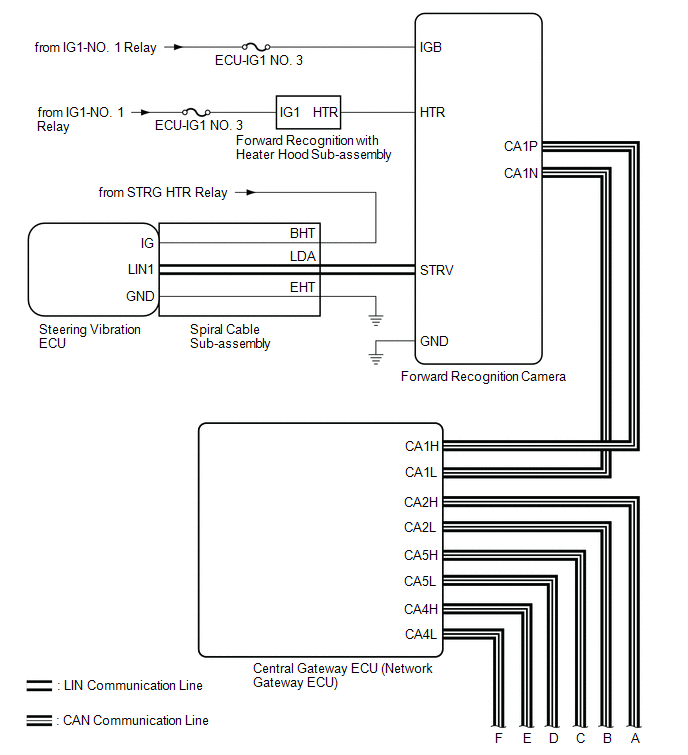

SYSTEM DIAGRAM
.png)
