Lexus ES: Steering Pad Switch Circuit
DESCRIPTION
- The steering pad switch assembly outputs the dynamic cruise control on/off signal and various control signals to the hybrid vehicle control ECU.
- The hybrid vehicle control ECU controls the dynamic cruise control system according to the signals received from the steering pad switch assembly.

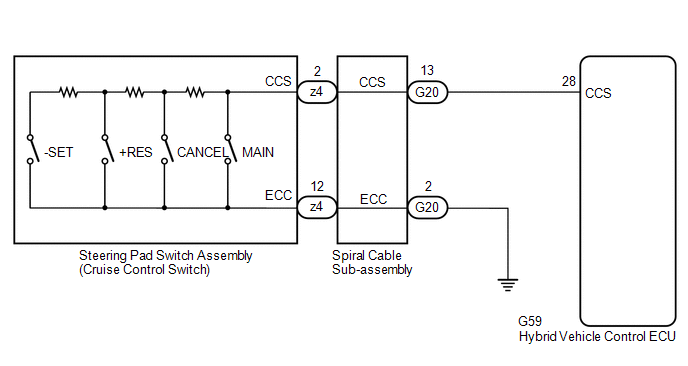

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
-
Before replacing the hybrid vehicle control ECU, refer to Registration.
Click here
.gif)
-
The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.
Click here
PROCEDURE
| 1. | READ VALUE USING TECHSTREAM |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Radar Cruise 1 / Data List.
(e) Read the Data List according to the display on the Techstream.
Powertrain > Radar Cruise1 > Data List| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Cancel Switch | CANCEL switch status | ON or OFF | ON: CANCEL switch pushed OFF: CANCEL switch not pushed | - |
| -SET Switch | -SET switch status | ON or OFF | ON: -SET switch pushed OFF: -SET switch not pushed | - |
| +RES Switch | +RES switch status | ON or OFF | ON: +RES switch pushed OFF: +RES switch not pushed | - |
| Cruise Main Switch Operation Condition | Cruise control main switch status | ON or OFF | ON: Cruise control main switch pushed OFF: Cruise control main switch not pushed | - |
| Tester Display |
|---|
| Cancel Switch |
| -SET Switch |
| +RES Switch |
| Cruise Main Switch Operation Condition |
OK:
The value of each Data List item changes according to the operation of the steering pad switch assembly.
| OK | .gif) | PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
|
.gif)
| 2. | INSPECT STEERING PAD SWITCH ASSEMBLY |
(a) Remove the steering pad switch assembly.
Click here
(b) Inspect the steering pad switch assembly.
Click here
| NG | | REPLACE STEERING PAD SWITCH ASSEMBLY |
|
| 3. | INSPECT SPIRAL CABLE SUB-ASSEMBLY |
(a) Remove the spiral cable sub-assembly.
Click here
(b) Inspect the spiral cable sub-assembly.
Click here
| NG | | REPLACE SPIRAL CABLE SUB-ASSEMBLY |
|
| 4. | CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - HYBRID VEHICLE CONTROL ECU AND BODY GROUND) |
(a) Disconnect the G20 spiral cable sub-assembly connector.
(b) Disconnect the G59 hybrid vehicle control ECU connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| G20-13 (CCS) - G59-28 (CCS) | Always | Below 1 Ω |
| G20-2 (ECC) - Body ground | Always | Below 1 Ω |
| G20-13 (CCS) or G59-28 (CCS) - Body ground | Always | 10 kΩ or higher |
(d) Connect the G59 hybrid vehicle control ECU connector.
(e) Connect the G20 spiral cable sub-assembly connector.
| OK | | REPLACE HYBRID VEHICLE CONTROL ECU |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
