Lexus ES: Sensor (Motor) Failure (B2341,B2344)
DESCRIPTION
When the sliding roof ECU (sliding roof drive gear assembly) detects a motor malfunction and the sliding roof operation is stopped, DTC B2341 is stored.
When the sliding roof ECU (sliding roof drive gear assembly) detects a gear position malfunction and the sliding roof operation is stopped, DTC B2344 is stored.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B2341 | Sensor (Motor) Failure | Sensor (motor) failure (When the sliding roof ECU (sliding roof drive gear assembly) enters fail-safe mode due to a problem with the motor) |
|
| B2344 | Position Failure | Position failure (When the sliding roof ECU (sliding roof drive gear assembly) enters fail-safe mode due to a problem with the gear position) |
|

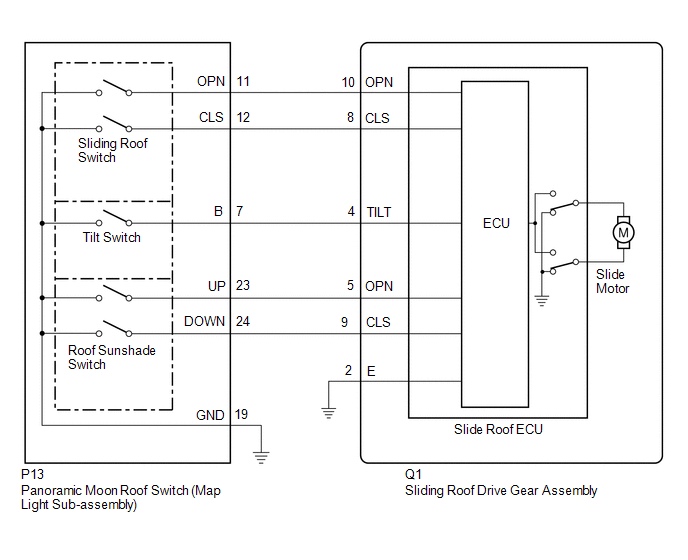

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
-
If the sliding roof ECU (sliding roof drive gear assembly) is removed and reinstalled or replaced, the sliding roof ECU (sliding roof drive gear assembly) must be initialized.
Click here
.gif)
- DTCs B2341 and B2344 are stored in the sliding roof ECU (sliding roof drive gear assembly).
PROCEDURE
| 1. | CHECK FOR DTC |
(a) Clear the DTCs.
Body Electrical > Sliding Roof > Clear DTCs(b) Check for DTCs.
Body Electrical > Sliding Roof > Trouble CodesOK:
DTCs B2341 and B2344 are not output.
| OK | .gif) | USE SIMULATION METHOD TO CHECK |
|
.gif)
| 2. | CHECK SLIDING ROOF OPERATION |
(a) Check the sliding roof auto operation function.
Click here
OK:
Auto operation function operates normally.
| NG | | GO TO STEP 4 |
|
| 3. | CHECK DTC OUTPUT |
(a) Clear the DTCs.
Body Electrical > Sliding Roof > Clear DTCs(b) Check for DTCs.
Body Electrical > Sliding Roof > Trouble CodesOK:
DTCs B2341 and B2344 are not output.
| OK | | USE SIMULATION METHOD TO CHECK |
| NG | | REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| 4. | INITIALIZE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
(a) Check that the sliding roof ECU (sliding roof drive gear assembly) can be initialized.
Click here
OK:
Sliding roof ECU (sliding roof drive gear assembly) can be initialized.
| NG | | GO TO STEP 6 |
|
| 5. | CHECK DTC OUTPUT |
(a) Clear the DTCs.
Body Electrical > Sliding Roof > Clear DTCs(b) Check for DTCs.
Body Electrical > Sliding Roof > Trouble CodesOK:
DTCs B2341 and B2344 are not output.
| OK | | END (MALFUNCTION DUE TO INITIALIZATION FAILURE) |
| NG | | REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| 6. | CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) - PANORAMIC MOON ROOF SWITCH (MAP LIGHT SUB-ASSEMBLY) AND BODY GROUND) |
(a) Disconnect the Q1 sliding roof ECU (sliding roof drive gear assembly) connector.
(b) Disconnect the P13 panoramic moon roof switch (map light sub-assembly) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| Q1-8 (CLS) - P13-12 (CLS) | Always | Below 1 Ω |
| Q1-8 (CLS) or P13-12 (CLS) - Body ground | Always | 10 kΩ or higher |
| Q1-10 (OPN) - P13-11 (OPN) | Always | Below 1 Ω |
| Q1-10 (OPN) or P13-11 (OPN) - Body ground | Always | 10 kΩ or higher |
| Q1-4 (TILT) - P13-7 (B) | Always | Below 1 Ω |
| Q1-4 (TILT) or P13-7 (B) - Body ground | Always | 10 kΩ or higher |
| Q1-5 (OPN) - P13-23 (UP) | Always | Below 1 Ω |
| Q1-5 (OPN) or P13-23 (UP) - Body ground | Always | 10 kΩ or higher |
| Q1-9 (CLS) - P13-24 (DOWN) | Always | Below 1 Ω |
| Q1-9 (CLS) or P13-24 (DOWN) - Body ground | Always | 10 kΩ or higher |
| Q1-2 (E) - Body ground | Always | Below 1 Ω |
| P13-19 (GND) - Body ground | Always | Below 1 Ω |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 7. | INSPECT PANORAMIC MOON ROOF SWITCH (MAP LIGHT SUB-ASSEMBLY) |
(a) Remove the panoramic moon roof switch (map light sub-assembly).
Click here
(b) Inspect the panoramic moon roof switch (map light sub-assembly).
Click here
| OK | | REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| NG | | REPLACE PANORAMIC MOON ROOF SWITCH (MAP LIGHT SUB-ASSEMBLY) |
