Lexus ES: Right Rear Wheel Speed Sensor Internal Electronic Failure (C051249)

Lexus ES (XZ10) Service Manual / Brake / Brake Control / Dynamic Control Systems / Electronically Controlled Brake System (for Gasoline Model) / Right Rear Wheel Speed Sensor Internal Electronic Failure (C051249)

DESCRIPTION

When the system is starting up and the skid control ECU (brake actuator assembly) detects a speed sensor circuit malfunction via the speed sensor circuit self-diagnosis function, this DTC is stored.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C051249

Right Rear Wheel Speed Sensor Internal Electronic Failure

A circuit malfunction in the speed sensor is detected during the self test.
  • Rear speed sensor RH (rear axle hub and bearing assembly RH)*1
  • Rear speed sensor RH*2
  • Wire harness or connector
  • Skid control sensor wire RH (No. 1 parking brake wire assembly)
  • Skid control ECU (brake actuator assembly)

*1: for 2WD

*2: for AWD

WIRING DIAGRAM

Refer to DTC C051212.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

    Click here

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

PROCEDURE

1.

CHECK VEHICLE

(a) Check the vehicle specification.

Result

Proceed to

for 2WD (w/o AVS)

A

for 2WD (w/ AVS)

B

for AWD

C
B

GO TO STEP 13

C

GO TO STEP 24

A

2.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

(to Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH))

(b) Disconnect the b2 rear speed sensor RH (rear axle hub and bearing assembly RH) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

b2-2 (RA+) - b2-1 (RA-)

Engine switch on (IG)

11 to 14 V
NG

GO TO STEP 8

OK

3.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

(to Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH))

(b) Disconnect the b2 rear speed sensor RH (rear axle hub and bearing assembly RH) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

b2-2 (RA+) - Body ground

Engine switch off

Below 1.5 V
NG

GO TO STEP 6

OK

4.

INSPECT NO. 1 PARKING BRAKE WIRE ASSEMBLY

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

*b

Front view of wire harness connector

(to Sensor Side Connector)

*c

Front view of wire harness connector

(to Vehicle Side Connector)

(b) Disconnect the b2 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

b2-1 (RA-) or bN1-2 (RR-) - Body ground and other terminals

Always

10 kΩ or higher
NG

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
OK

5.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN1-2 (RR-) or A40-37 (RR-) - Body ground

Always

10 kΩ or higher
OK

REPLACE REAR AXLE HUB AND BEARING ASSEMBLY RH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN1-1 (RR+) - Body ground

Engine switch off

Below 1.5 V
OK

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
NG

7.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No.1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN1-1 (RR+) - Body ground

Always

Below 1.5 V
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN1-1 (RR+) - bN1-2 (RR-)

Engine switch on (IG)

11 to 14 V
OK

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
NG

9.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

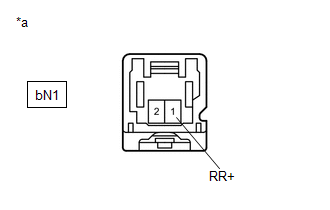

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN1-1 (RR+) - Body ground

Engine switch on (IG)

11 to 14 V
NG

GO TO STEP 12

OK

10.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

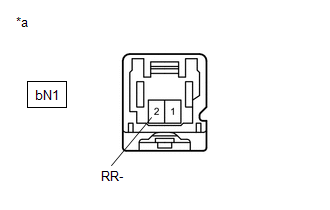

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN1-2 (RR-) - Body ground

Always

Below 1.5 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

11.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN1-2 (RR-) - A40-37 (RR-)

Always

Below 1 Ω

bN1-1 (RR+) or A40-22 (RR+) - bN1-2 (RR-) or A40-37 (RR-)

Always

10 kΩ or higher
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN1-1 (RR+) - A40-22 (RR+)

Always

Below 1 Ω

bN1-1 (RR+) or A40-22 (RR+) - Body ground

Always

10 kΩ or higher
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

(to Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH))

(b) Disconnect the b2 rear speed sensor RH (rear axle hub and bearing assembly RH) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

b2-2 (RA+) - b2-1 (RA-)

Engine switch on (IG)

11 to 14 V
NG

GO TO STEP 19

OK

14.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

(to Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH))

(b) Disconnect the b2 rear speed sensor RH (rear axle hub and bearing assembly RH) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

b2-2 (RA+) - Body ground

Engine switch off

Below 1.5 V
NG

GO TO STEP 17

OK

15.

INSPECT NO. 1 PARKING BRAKE WIRE ASSEMBLY

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

*b

Front view of wire harness connector

(to Sensor Side Connector)

*c

Front view of wire harness connector

(to Vehicle Side Connector)

(b) Disconnect the b2 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

b2-1 (RA-) or bN5-2 (RR-) - Body ground and other terminals

Always

10 kΩ or higher
NG

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
OK

16.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN5-2 (RR-) or A40-37 (RR-) - Body ground

Always

10 kΩ or higher
OK

REPLACE REAR AXLE HUB AND BEARING ASSEMBLY RH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

17.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

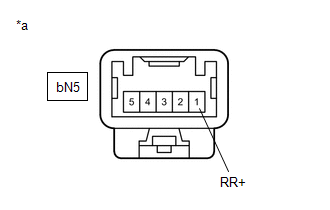

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN5-1 (RR+) - Body ground

Engine switch off

Below 1.5 V
OK

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
NG

18.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN5-1 (RR+) - Body ground

Always

Below 1.5 V
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

19.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN5-1 (RR+) - bN5-2 (RR-)

Engine switch on (IG)

11 to 14 V
OK

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
NG

20.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN5-1 (RR+) - Body ground

Engine switch on (IG)

11 to 14 V
NG

GO TO STEP 23

OK

21.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN5-2 (RR-) - Body ground

Always

Below 1.5 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

22.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN5-2 (RR-) - A40-37 (RR-)

Always

Below 1 Ω

bN5-1 (RR+) or A40-22 (RR+) - bN5-2 (RR-) or A40-37 (RR-)

Always

10 kΩ or higher
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

23.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN5-1 (RR+) - A40-22 (RR+)

Always

Below 1 Ω

bN5-1 (RR+) or A40-22 (RR+) - Body ground

Always

10 kΩ or higher
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

24.

CHECK HARNESS AND CONNECTOR (SENSOR CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

(to Rear Speed Sensor RH)

(b) Disconnect the b2 rear speed sensor RH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

b2-2 (RA+) - b2-1 (RA-)

Engine switch on (IG)

11 to 14 V
NG

GO TO STEP 8

OK

25.

CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

(to Rear Speed Sensor RH)

(b) Disconnect the b2 rear speed sensor RH connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

b2-2 (RA+) - Body ground

Engine switch off

Below 1.5 V
NG

GO TO STEP 6

OK

26.

INSPECT NO. 1 PARKING BRAKE WIRE ASSEMBLY

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

*b

Front view of wire harness connector

(to Sensor Side Connector)

*c

Front view of wire harness connector

(to Vehicle Side Connector)

(b) Disconnect the b2 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

b2-1 (RA-) or bN1-2 (RR-) - Body ground and other terminals

Always

10 kΩ or higher
NG

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
OK

27.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN1-2 (RR-) or A40-37 (RR-) - Body ground

Always

10 kΩ or higher
OK

REPLACE REAR SPEED SENSOR RH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

READ NEXT:

 Multi-axis Acceleration Sensor Module "A" Component Internal Failure (C052096)

DESCRIPTION The airbag ECU assembly has a built-in yaw rate and acceleration sensor and detects the vehicle condition. The skid control ECU (brake actuator assembly) receives signals from the yaw rate

 Steering Angle Sensor Module Calibration / Parameter Memory Failure (C052646)

DESCRIPTION When the vehicle is being driven in a straight line at 15 km/h (9 mph) for 1 second or more, the skid control ECU (brake actuator assembly) calculates the steering angle sensor zero point

 Steering Angle Sensor Module Component Internal Failure (C052696)

DESCRIPTION This DTC is stored when the skid control ECU (brake actuator assembly) receives an internal malfunction signal from the steering angle sensor. DTC No. Detection Item DTC Detection C

SEE MORE:

 High Beam Headlight Circuit

DESCRIPTION The headlight ECU sub-assembly controls the high beam headlights. WIRING DIAGRAM except Bulb Type Turn Signal Light (for TMMK Made) for Bulb Type Turn Signal Light (for TMMK Made) CAUTION / NOTICE / HINT NOTICE: If the headlight ECU sub-assembly LH has been replaced, it is necessary

 Left Rear Wheel Speed Sensor Circuit Short to Ground or Open (C050C14)

DESCRIPTION Refer to DTC C050C12 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C050C14 Left Rear Wheel Speed Sensor Circuit Short to Ground or Open A short or open circuit is detected in the speed sensor signal circuit for 0.12 seconds or more. Rear s

© 2016-2024 Copyright www.lexguide.net
