Lexus ES: Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transfer case oil seal RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Automatic transaxle fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly.

Front wheel alignment adjustment

  1. Perform "Reset Memory".
  2. Perform acceleration sensor zero point calibration and store system information memorization.
  • VSC disabled or malfunctioning
  • DTCs are output
  • Slip indicator light illuminated
  • ABS warning light illuminated

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

Click here

4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

5. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

Click here

6. REMOVE DRIVE SHAFT BEARING BRACKET

Click here

7. REMOVE TRANSFER CASE OIL SEAL RH

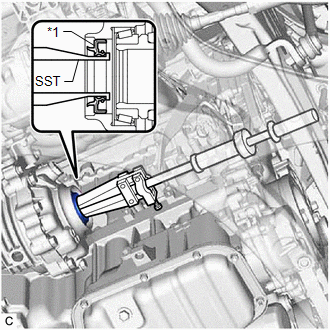

(a) Using SST, remove the transfer case oil seal RH from the transfer assembly.

SST: 09308-00010

NOTICE:

Do not scratch the press-fitting surface of the transfer case oil seal RH.

*1

Transfer Case Oil Seal RH

8. INSTALL TRANSFER CASE OIL SEAL RH

(a) Coat the lip of a new transfer case oil seal RH with MP grease.

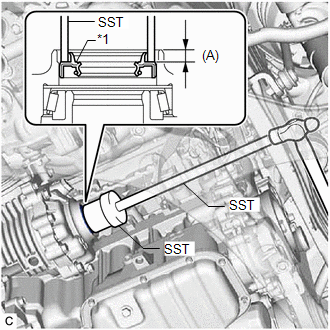

(b) Using SST and a hammer, tap in the transfer case oil seal RH to the transfer assembly as shown in the illustration.

SST: 09631-32020

SST: 09950-60021

09951-00680

SST: 09950-70010

09951-07360

Drive in Depth (A):

7.5 to 8.5 mm (0.296 to 0.334 in.)

NOTICE:

  • Tap the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.
  • Do not tap the transfer case oil seal RH in too far.

*1

Transfer Case Oil Seal RH

9. INSTALL DRIVE SHAFT BEARING BRACKET

Click here

10. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

Click here

11. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

12. INSTALL NO. 1 ENGINE UNDER COVER

Click here

13. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

Click here

14. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

Click here
