ON-VEHICLE INSPECTION

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

Click here

4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

5. CHECK TRANSFER OIL

(a) Stop the vehicle on a level surface.

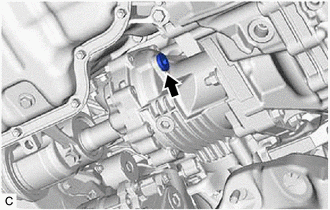

(b) Using a 10 mm straight hexagon wrench and 10 x 12 mm long offset wrench, remove the transfer filler plug and gasket from the transfer assembly.

(c) Check that the oil level is between 0 to 5 mm (0 to 0.197 in.) from the bottom lip of the transfer filler plug hole.

If the result is not as specified, add transfer oil.

Oil Type and Viscosity:

Toyota genuine differential gear oil LT SAE 75W-85 API GL-5 or equivalent

NOTICE:

  • Using transfer oil other than the specified oil may cause abnormal noise or vibration, or damage the transfer of the vehicle.
  • When adding transfer oil, pour it slowly.
  • Too much or too little transfer oil will lead to transfer problems.

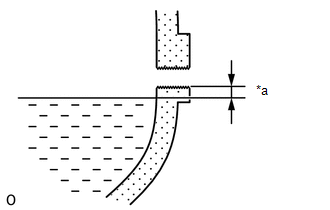

*a

0 to 5 mm (0 to 0.197 in.)

(d) If the oil level is low, refill transfer oil after checking for oil leaks.

(e) Using SST, a 10 mm straight hexagon wrench and 10 mm union nut wrench, install the transfer filler plug and a new gasket to the transfer assembly.

SST: 09961-00950

Torque:

Specified tightening torque :

39 N·m {398 kgf·cm, 29 ft·lbf}

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 19.9 N*m (203 kgf*cm, 15 ft.*lbf)

*a

10 mm Straight Hexagon Wrench

*b

10 mm Union Nut Wrench

*c

Torque Wrench Fulcrum Length

6. INSPECT FOR TRANSFER OIL LEAK

7. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

8. INSTALL NO. 1 ENGINE UNDER COVER

Click here

9. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

Click here

10. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

Click here
