REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during sliding roof housing removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative (-) battery terminal

Perform steering sensor zero point calibration

Lane Control System (for Gasoline Model)

Pre-collision System (for Gasoline Model)

Parking Support Brake System (for Gasoline Model)*

Lighting System (for Gasoline Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for Gasoline Model)

Panoramic View Monitor System (for Gasoline Model)

Initialize power trunk lid system

Power Trunk Lid System (for Gasoline Model)

Removal/installation of the front passenger seat

Zero point calibration (Occupant Classification System)

  • Occupant Classification System
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

Steering sensor

Steering angle zero point learning (Initialize parking support brake system)

  • Parking Support Alert System (for Gasoline Model)
  • Parking Support Brake System (for Gasoline Model)

  • Steering angle zero point learning (Initialize parking assist monitor system)
  • Steering angle setting

Parking Assist Monitor System (for Gasoline Model)

for Initialization

for Calibration

Steering angle zero point learning (Initialize panoramic view monitor system)

Panoramic View Monitor System (for Gasoline Model)

for Initialization

for Calibration

  • Sliding roof ECU (sliding roof drive gear sub-assembly)
  • Sliding roof panel sub-assembly
  • Sliding roof drive cable sub-assembly
  • Sliding roof housing sub-assembly

Initialize sliding roof system

  • Auto operation function
  • Jam protection function
  • Key-off operation function
  • Key-linked function
  • Wireless transmitter-linked function
  • Sliding roof open warning function

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)
Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative (-) auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Control System (for HV Model)

Pre-collision System (for HV Model)

Parking Support Brake System (for HV Model)*

Lighting System (for HV Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for HV Model)

Panoramic View Monitor System (for HV Model)

Initialize power trunk lid system

Power Trunk Lid System (for HV Model)

Removal/installation of the front passenger seat

Zero point calibration (Occupant classification system)

  • Occupant Classification System
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

Steering sensor

Steering angle zero point learning (Initialize parking support brake system)

  • Parking Support Alert System (for HV Model)
  • Parking Support Brake System (for HV Model)

  • Steering angle zero point learning (Initialize parking assist monitor system)
  • Steering angle setting

Parking Assist Monitor System (for HV Model)

for Initialization

for Calibration

Steering angle zero point learning (Initialize panoramic view monitor system)

Panoramic View Monitor System (for HV Model)

for Initialization

for Calibration

  • Sliding roof ECU (sliding roof drive gear sub-assembly)
  • Sliding roof panel sub-assembly
  • Sliding roof drive cable sub-assembly
  • Sliding roof housing sub-assembly

Initialize sliding roof system

  • Auto operation function
  • Jam protection function
  • Key-off operation function
  • Key-linked function
  • Wireless transmitter-linked function
  • Sliding roof open warning function

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

NOTICE:

  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)

PROCEDURE

1. REMOVE SLIDING ROOF SIDE GARNISH LH

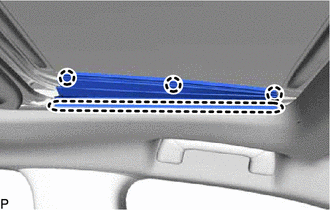

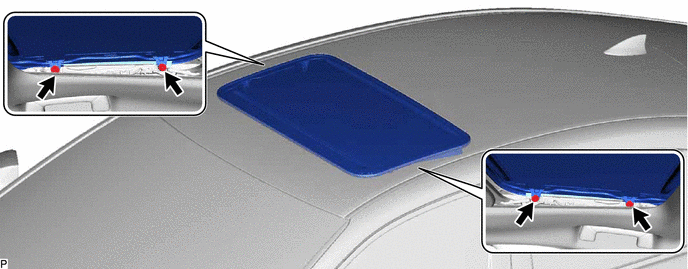

(a) Disengage the 4 claws to remove the sliding roof side garnish LH.

2. REMOVE SLIDING ROOF SIDE GARNISH RH

HINT:

Use the same procedure as for the LH side.

3. REMOVE SLIDING ROOF OR REMOVABLE ROOF PANEL SUB-ASSEMBLY

(a) Move the sliding roof or removable roof panel sub-assembly to the fully closed position.

(b) Using a T25 "TORX" socket wrench, remove the 4 screws and sliding roof or removable roof panel sub-assembly.

NOTICE:

To prevent the sliding roof or removable roof panel sub-assembly and sliding roof drive gear sub-assembly from becoming misaligned, move the sliding roof or removable roof panel sub-assembly (sliding roof drive cable sub-assembly) to the fully closed position before removing it.

4. REMOVE SLIDING ROOF WEATHERSTRIP

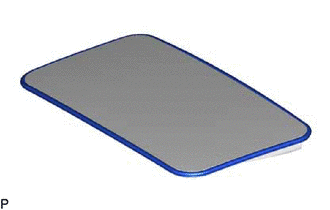

(a) Remove the sliding roof weatherstrip from the sliding roof panel sub-assembly.

5. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

Click here

6. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

7. DISCONNECT SLIDING ROOF DRAIN HOSE

HINT:

Use the same procedure for all of the sliding roof drain hoses.

(a) for Clamp Type:

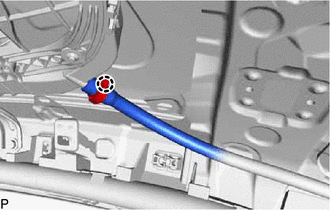

(1) Disengage the claw and disconnect the sliding roof drain hose.

(b) for Clip Type:

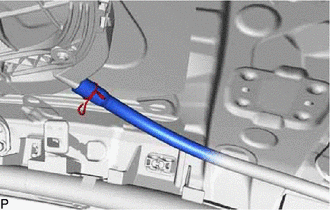

(1) Expand the clip and disconnect the sliding roof drain hose.

8. REMOVE SLIDING ROOF OR REMOVABLE ROOF HOUSING SUB-ASSEMBLY

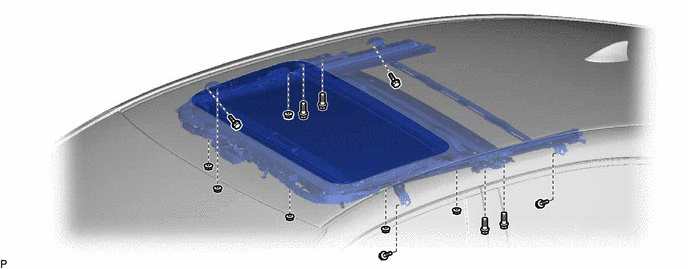

(a) Remove the 8 bolts, 6 nuts and sliding roof or removable roof housing sub-assembly.
