Lexus ES (XZ10) Service Manual / Vehicle Interior / Exterior Panels / Trim / Front Door Window Frame Moulding / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door window frame moulding removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link
*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

  • Front door glass sub-assembly
  • Front door glass run

Initialize power window control system
  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

NOTICE:

  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)
Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link
*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

  • Front door glass sub-assembly
  • Front door glass run

Initialize power window control system
  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

Click here

2. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER

Click here

3. REMOVE FRONT DOOR GLASS RUN

Click here

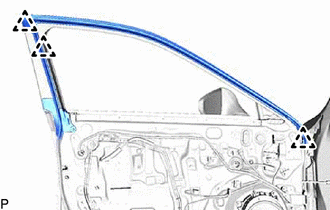

4. DISCONNECT FRONT DOOR WEATHERSTRIP

(a) Disengage the 3 clips and disconnect the front door weatherstrip.

5. REMOVE FRONT DOOR REAR WINDOW FRAME MOULDING

HINT:

When removing the front door rear window frame moulding, heat the vehicle body and front door rear window frame moulding using a heat light.

Heating Temperature

Item

Temperature

Vehicle Body

40 to 60°C (104 to 140°F)

Front Door Rear Window Frame Moulding

20 to 30°C (68 to 86°F)

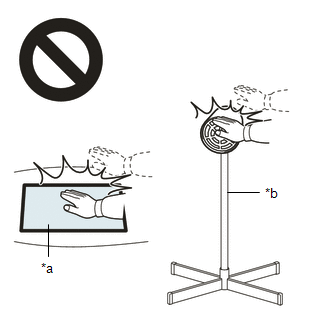

CAUTION:

  • Do not touch the heat light and heated parts, touching the heat light may result in burns.
  • Touching heated parts for a long time may result in burns.

*a

Heated Part

*b

Heat Light

NOTICE:

Do not heat the vehicle body or front door rear window frame moulding excessively.

(a) Using a heat light, heat the front door rear window frame moulding.

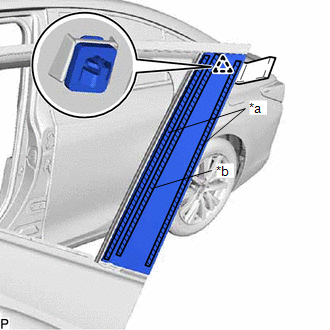

(b) Using a moulding remover, disengage the clip and separate the double-sided tape and caulking sponge to remove the front door rear window frame moulding.

*a

Double-sided Tape

*b

Caulking Sponge

6. REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

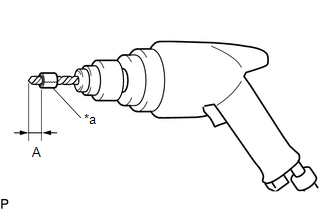

(a) Insert a 4.0 mm (0.157 in.) drill bit into a drill.

(b) Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:

Area

Measurement

A

5.0 mm (0.197 in.)

NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

*a

Tape

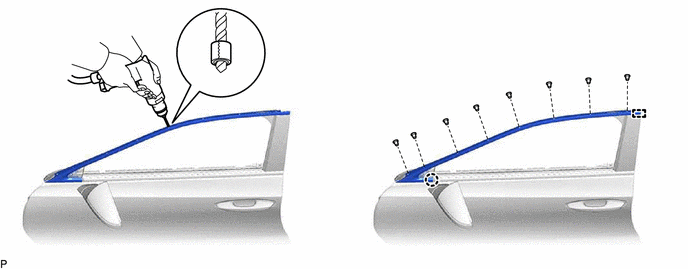

(c) Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 8 rivets.

CAUTION:

Be careful of the drilled rivets, as they may be hot.

NOTICE:

  • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
  • Prying the rivets with the drill may damage the rivet installation holes or drill bit.

(d) Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.

(e) Disengage the claw and guide to remove the front door outside moulding sub-assembly from the door frame.
