Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click here

2. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

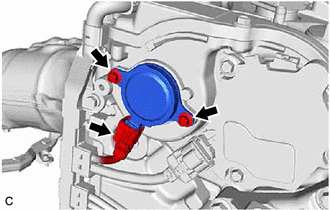

(a) Disconnect the cam timing oil control solenoid assembly connector.

(b) Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing gear cover assembly.

NOTICE:

If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

3. REMOVE O-RING

HINT:

Perform this procedure only when replacement of the O-ring is necessary.

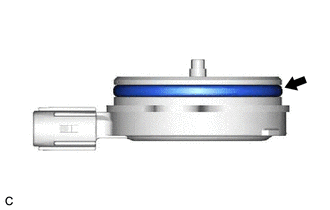

(a) Remove the O-ring from the cam timing oil control solenoid assembly.

NOTICE:

  • When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
  • If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
