Lexus ES: Removal
REMOVAL
PROCEDURE
1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Click here .gif)
2. REMOVE DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)

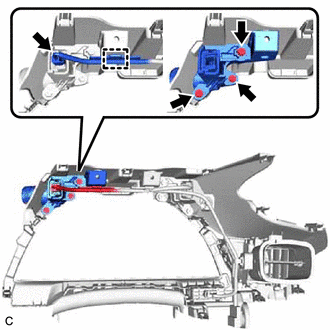

| (a) Disconnect the drive mode select switch (combination switch assembly) connector. |
|
.png)
(b) Disengage the clamp to disconnect the wire harness from the instrument cluster finish panel assembly.
(c) Remove the 3 screws and drive mode select switch (combination switch assembly) from the instrument cluster finish panel assembly.
