Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle hub and bearing assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model:)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Auxiliary battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System (for HV Model)

NOTICE:

for HV Model:
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)

CAUTION / NOTICE / HINT

for HV Model:

  • When removing or installing the rear disc brake caliper assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C1214 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure.
  • While the auxiliary battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION (for HV Model)

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

2. DISABLE BRAKE CONTROL (for HV Model)

Click here

3. REMOVE REAR WHEEL

Click here

4. DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

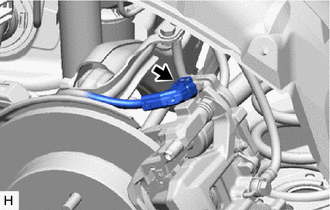

(a) Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

NOTICE:

  • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
  • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

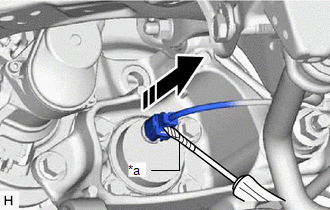

(b) Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 2 parking brake wire assembly connector from the rear axle hub and bearing assembly.

NOTICE:

Be careful not to damage the rear axle hub and bearing assembly or connector cover.

*a

Protective Tape

5. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click here

6. REMOVE REAR DISC

Click here

7. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

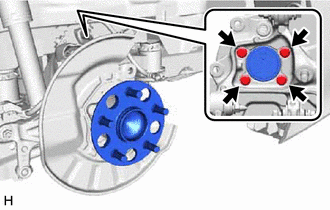

(a) Remove the 4 bolts, rear axle hub and bearing assembly and rear disc brake dust cover sub-assembly from the rear axle carrier sub-assembly.
