Lexus ES: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL HEADLIGHT SEAL (for TMC Made)

HINT:

Perform this procedure only when replacement of the headlight seal is necessary.

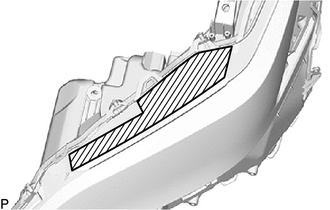

(a) Clean the installation area of the headlight seal shown in the illustration.

NOTICE:

Remove any remaining double-sided tape, and then clean the area with non-residue solvent.

Cleaning Area

(b) Remove approximately 30 mm (1.18 in.) of the release paper from a new headlight seal.

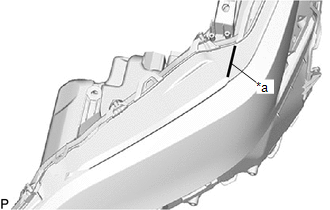

(c) Align the exposed end of the headlight seal with the line.

*a

Line

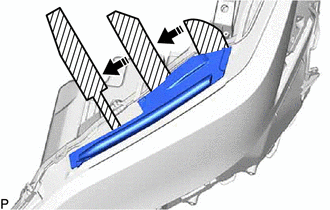

(d) Gradually remove the release paper and temporarily install the headlight seal while keeping it aligned with the curve of the headlight unit assembly.

Release Paper

Remove in this Direction

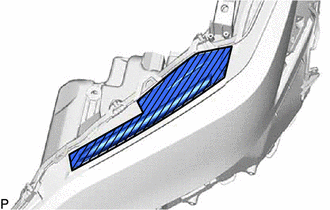

(e) Press the entire length of the headlight seal to install it.

NOTICE:

When pressing, do not slide your finger, as doing so may stretch the part.

Press Area

2. INSTALL HEADLIGHT UNIT ASSEMBLY

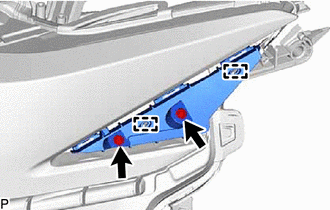

3. INSTALL NO. 2 HEADLIGHT FITTING RIM

(a) Engage the 2 guides.

(b) Install the No. 2 headlight fitting rim with the 2 screws.

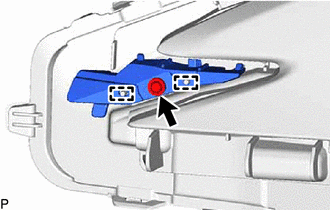

4. INSTALL HEADLIGHT RIM

(a) Engage the 2 guides.

(b) Install the headlight rim with the screw.

5. INSTALL HEADLIGHT GASKET

Click here

6. INSTALL HEADLIGHT ECU SUB-ASSEMBLY

Click here
