Lexus ES: Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL HEADLIGHT ASSEMBLY

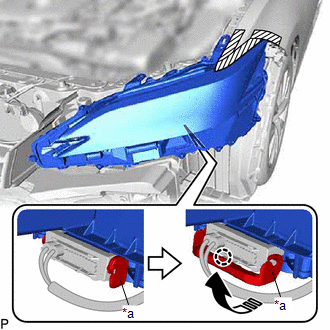

(a) Connect the connector and raise the connector lock lever to engage the claw and lock the connector as shown in the illustration.
| *a | Connector Lock Lever |
.png) | Connect in this Direction |

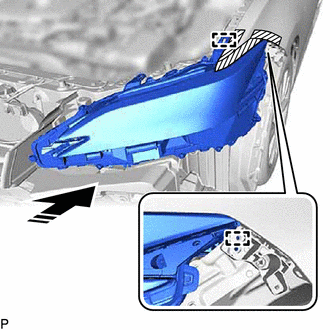

(b) Engage the 2 guides to temporarily install the headlight assembly as shown in the illustration.
| | Install in this Direction |

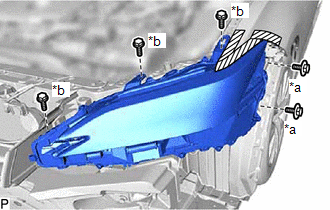

| (c) Install the headlight assembly with the 2 bolts and 3 screws. Torque: Bolt : 5.4 N·m {55 kgf·cm, 48 in·lbf} |
|
.png)
(d) Remove the protective tape.
2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY
Click here .gif)
3. INSTALL COWL TOP PANEL INSULATOR
Click here
4. INSTALL FRONT BUMPER ASSEMBLY
Click here
5. PERFORM INITIALIZATION
for HV Model:
Click here
for Gasoline Model:
Click here
6. ADJUST HEADLIGHT AIMING
Click here
