Lexus ES: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL REAR SPOILER SUB-ASSEMBLY (w/ Rear Spoiler)

Click here

2. INSTALL LICENSE PLATE LIGHT ASSEMBLY LH

Click here

3. INSTALL LICENSE PLATE LIGHT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

4. INSTALL TELEVISION CAMERA ASSEMBLY WITH WIRE

Click here

5. INSTALL LUGGAGE ELECTRICAL KEY SWITCH

Click here

6. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here

7. INSTALL REAR LIGHT ASSEMBLY LH

Click here

8. INSTALL REAR LIGHT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

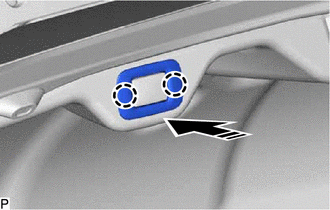

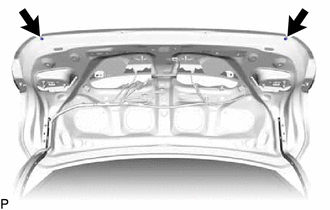

9. INSTALL HOLE PLUG

(a) Install 2 new hole plugs.

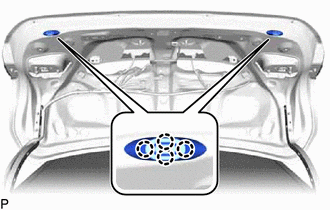

10. INSTALL LUGGAGE COMPARTMENT DOOR CUSHION

(a) Engage the 8 claws to install 2 new luggage compartment door cushions.

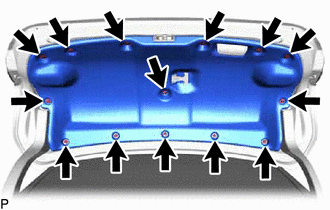

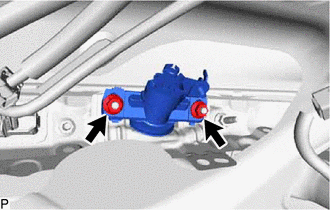

11. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

(a) Install the luggage compartment door lock cylinder assembly with the 2 nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

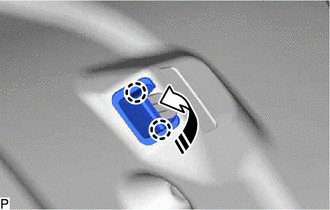

12. INSTALL LUGGAGE LOCK CONTROL CABLE CLAMP

(a) Engage the guide and 2 claws to install the luggage lock control cable clamp.

13. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/o Power Trunk Lid System)

Click here

14. INSTALL LUGGAGE DOOR CLOSER ASSEMBLY (w/ Power Trunk Lid System)

Click here

15. INSTALL LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR

Click here

16. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

Click here

17. INSTALL DOOR CONTROL SWITCH (w/ Power Trunk Lid System)

Click here

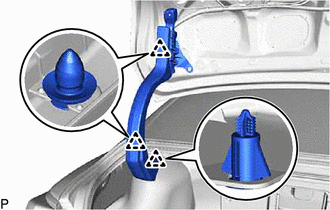

18. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH

(a) Engage the 3 clips to install the luggage compartment door hinge cover LH.

19. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

HINT:

Use the same procedure as for the LH side.

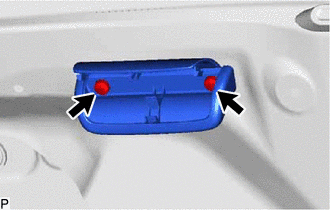

20. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

(a) Install the luggage compartment door assist grip with the 2 screws.

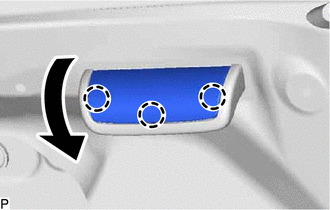

(b) Engage the 3 claws as shown in the illustration.

21. INSTALL LUGGAGE COMPARTMENT DOOR COVER

(a) Install the luggage compartment door cover with the 14 clips.

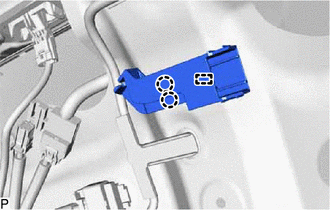

22. INSTALL SWITCH BEZEL (w/ Power Trunk Lid System)

(a) Engage the 2 claws to install the switch bezel as shown in the illustration.

Install in this Direction

23. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE

(a) Engage the 2 claws to install the luggage lock control cable plate as shown in the illustration.

Install in this Direction

24. INSPECT LUGGAGE DOOR CLOSER SYSTEM (w/ Power Trunk Lid System)

for HV Model:

Click here

for Gasoline Model:

Click here

25. PERFORM CALIBRATION (w/ Parking Assist Monitor System)

for HV Model:

Click here

for Gasoline Model:

Click here

26. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

for HV Model:

Click here

for Gasoline Model:

Click here
