Lexus ES: Precaution
PRECAUTION
PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
NOTICE:
When disconnecting the cable from the negative (-) auxiliary battery terminal, initialize the following system(s) after the cable is reconnected:
| System | See Procedure |
|---|---|
| Lane Control System (for HV Model) | |
| Parking Support Brake System (for HV Model) | |
| Parking Assist Monitor System (for HV Model) | |
| Panoramic View Monitor System (for HV Model) | |
| Pre-collision System (for HV Model) | |
| Power Trunk Lid System (for HV Model) | |
| Lighting System (for HV Model) |

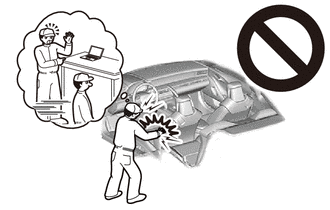

HANDLING PRECAUTIONS FOR SRS AIRBAG SYSTEM
CAUTION:
This vehicle is equipped with a Supplemental Restraint System (SRS). Failure to carry out service operations in the correct sequence could cause the SRS to unexpectedly deploy during servicing. This may cause a serious accident.
Before servicing (including inspection, replacement, removal and installation of parts), be sure to read the precautionary notices for Supplemental Restraint System.
.png)
Click here .gif)
