Lexus ES: Parts Location
Lexus ES (XZ10) Service Manual / Steering / Steering Column / Heated Steering Wheel System (for Hv Model) / Parts Location
PARTS LOCATION

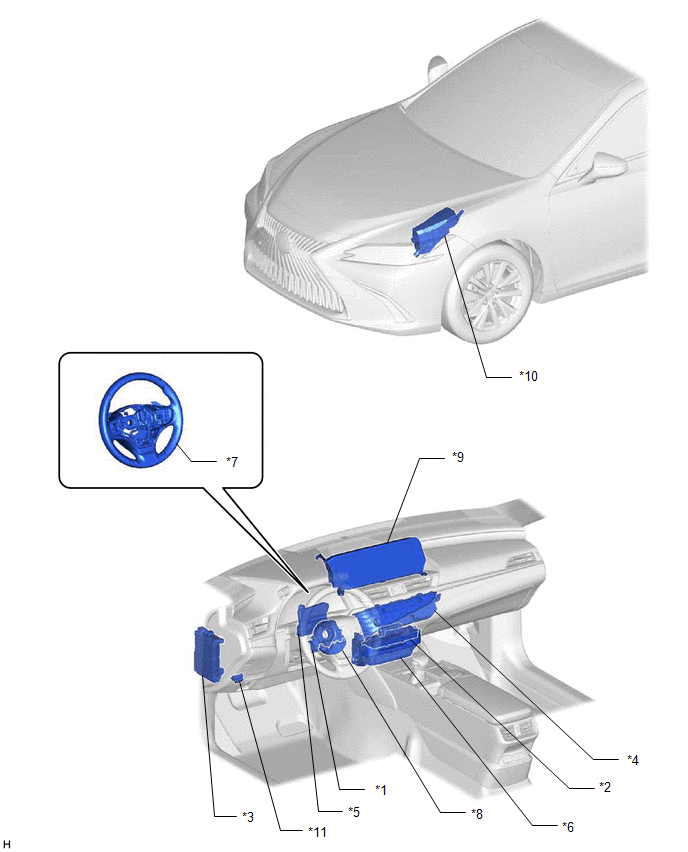

ILLUSTRATION
.png)
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING WHEEL HEATER SWITCH (REFRESHING SEAT SWITCH) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE | *4 | AIR CONDITIONING CONTROL ASSEMBLY |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | RADIO RECEIVER ASSEMBLY |
| *7 | STEERING WHEEL ASSEMBLY - STEERING WHEEL HEATER UNIT | *8 | HEATED STEERING WHEEL CONTROLLER (STEERING VIBRATION ECU) |
| *9 | MULTI-DISPLAY ASSEMBLY | *10 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - STRG HTR FUSE - STRG HTR RELAY |
| *11 | DLC3 | - | - |
