Lexus ES: Parts Location

PARTS LOCATION

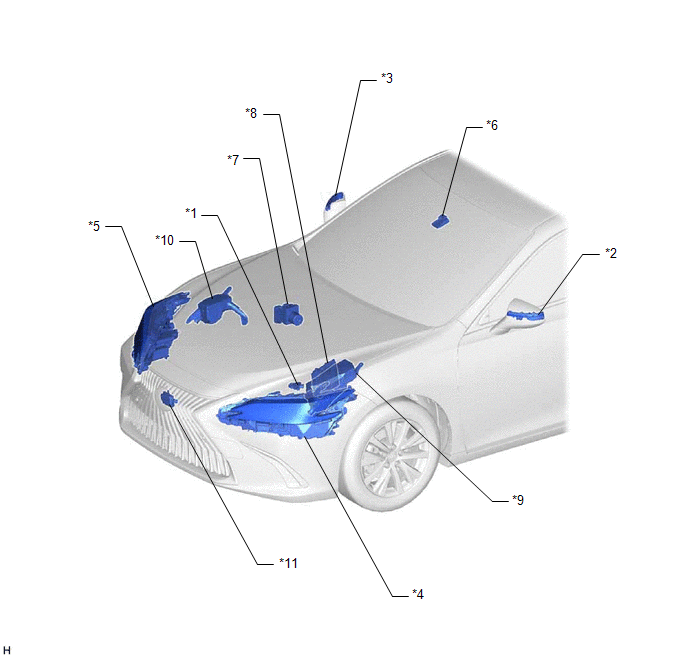

ILLUSTRATION

*1

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*2

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*3

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*4

HEADLIGHT ASSEMBLY LH

- HEADLIGHT ECU SUB-ASSEMBLY LH

- HEADLIGHT UNIT ASSEMBLY LH (for TMC Made)

- HEADLIGHT CORD LH (for Bulb Type Turn Signal Light) (for TMC Made)

*5

HEADLIGHT ASSEMBLY RH

- HEADLIGHT ECU SUB-ASSEMBLY RH

- HEADLIGHT UNIT ASSEMBLY RH (for TMC Made)

- HEADLIGHT CORD RH (for Bulb Type Turn Signal Light) (for TMC Made)

*6

FORWARD RECOGNITION CAMERA

*7

SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

*8

ECM

*9

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- ALT FUSE

*10

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY

- H-LP LH RELAY

- H-LP RH RELAY

- H-LP LH FUSE

- H-LP RH FUSE

*11

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

-

-

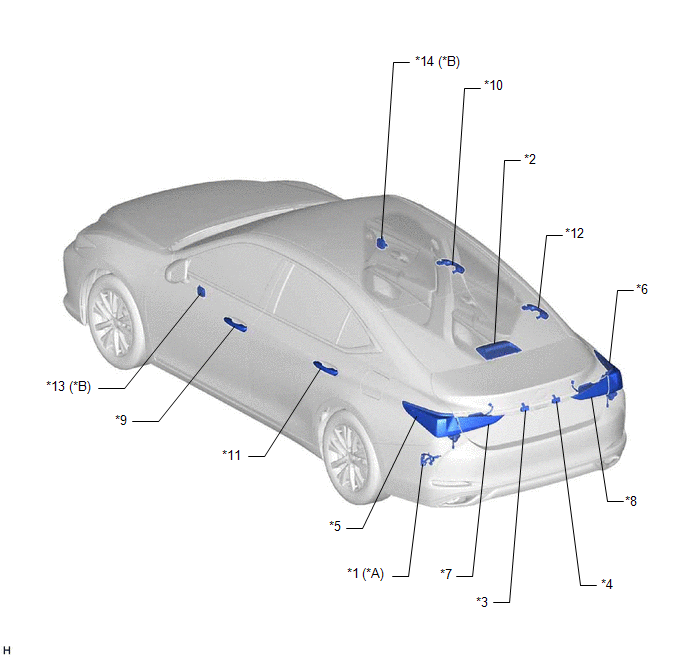

ILLUSTRATION

*A

for LED Type Turn Signal Light

*B

w/ Seat Position Memory

*1

REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

*2

CENTER STOP LIGHT SET

*3

LICENSE PLATE LIGHT ASSEMBLY LH

*4

LICENSE PLATE LIGHT ASSEMBLY RH

*5

REAR COMBINATION LIGHT ASSEMBLY LH

- REAR COMBINATION LIGHT LENS AND BODY LH (for TMC Made)

*6

REAR COMBINATION LIGHT ASSEMBLY RH

- REAR COMBINATION LIGHT LENS AND BODY RH (for TMC Made)

*7

REAR LIGHT ASSEMBLY LH

*8

REAR LIGHT ASSEMBLY RH

*9

FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH

*10

FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH

*11

REAR DOOR OUTSIDE HANDLE ASSEMBLY LH

*12

REAR DOOR OUTSIDE HANDLE ASSEMBLY RH

*13

OUTER MIRROR CONTROL ECU ASSEMBLY LH

*14

OUTER MIRROR CONTROL ECU ASSEMBLY RH

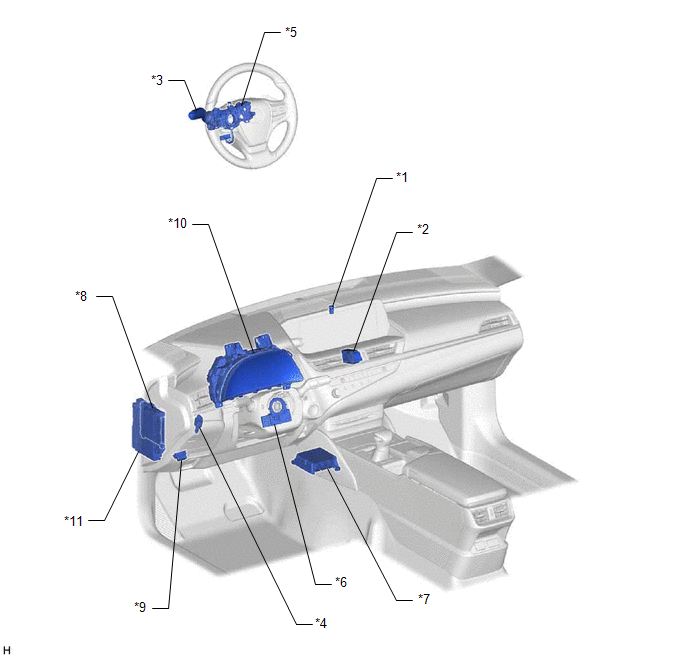

ILLUSTRATION

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

*3

TURN SIGNAL SWITCH

*4

STOP LIGHT SWITCH ASSEMBLY

*5

STEERING WHEEL SWITCH HOUSING

*6

STEERING SENSOR

*7

AIRBAG ECU ASSEMBLY

*8

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*9

DLC3

*10

COMBINATION METER ASSEMBLY

*11

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- TAIL RELAY

- BKUP LP RELAY

- TAIL FUSE

- BKUP LP FUSE

- ECU-IG1 NO. 3 FUSE

- ECU-DCC NO. 2 FUSE

- HAZ FUSE

- METER-IG2 FUSE

- STOP FUSE

- ECU-ACC FUSE

-

-
