OPERATION CHECK

AUTOMATIC LIGHT CONTROL SYSTEM OPERATION CHECK

NOTICE:

Make sure that the customize settings are set to default when performing the automatic light control system operation check.

Click here

(a) Turn the engine switch on (IG).

(b) Turn the light control switch to the AUTO position.

(d) Check that the taillights and low beam headlights come on.

(e) Uncover the automatic light control sensor.

(f) Check that the low beam headlights and taillights turn off.

LIGHT AUTO TURN-OFF SYSTEM OPERATION CHECK

NOTICE:

Make sure that the customize settings are set to default when performing the light auto turn-off system operation check.

Click here

(a) When the taillights are on (low beam headlights are not on)

(1) Close all of the doors.

(2) Turn the engine switch on (IG).

(3) Turn the taillights on.

(4) Turn the engine switch off.

(5) Open the driver door.

(6) Check that all of the lights turn off immediately.

(b) When the low beam headlights are on

(1) Close all of the doors.

(2) Turn the engine switch on (IG).

(3) Turn the low beam headlights on.

(4) Turn the engine switch off.

(5) Open any of the doors.

(6) Close the door.

(7) Check that all of the lights turn off after 30 seconds (delay function).

HINT:

Before the lights turn off, if the lock button on the key is pushed after all of the doors are locked, all of the lights will turn off immediately.

DAYTIME RUNNING LIGHT SYSTEM OPERATION CHECK

NOTICE:

Make sure that the customize settings are set to default when performing the daytime running light system operation check.

Click here

(a) Start the engine.

(b) Turn the light control switch to the tail or AUTO position (with the low beam headlights not turned on via the automatic light control system).*1

(c) Turn the light control switch to the off, tail or AUTO position (with the low beam headlights not turned on via the automatic light control system).*2

(d) Release the parking brake.

(e) Check that the daytime running lights come on.

*1: w/ DRL OFF Switch
*2: w/o DRL OFF Switch

NOTICE:

Make sure that the customize settings are set to default when performing the wiper-linked low beam headlight control system operation check.

Click here

WIPER-LINKED LOW BEAM HEADLIGHT CONTROL SYSTEM OPERATION CHECK

(a) Turn the engine switch on (IG).

(b) Shine a light on the automatic light control sensor.*

HINT:

*: If troubleshooting is being performed in a bright area, such as outside on a sunny day, it will not be necessary to perform this step.

(d) Operate the front wipers for 10 seconds or more (except MIST or washer-linked wiper operation) and check that the low beam headlights*1 or high beam headlights*2 illuminate.

*1: Dimmer switch not high position
*2: Dimmer switch high position

WELCOME LIGHT ILLUMINATION CONTROL OPERATION CHECK

NOTICE:

When operation of the alarm memory function is requested, welcome light illumination control will not operate.
Make sure that the customize settings are set to default when performing the welcome light illumination control operation check.
Click here

(a) Turn the engine switch off.

(b) Turn the light control switch to the AUTO position.

(d) Close and lock all of the doors.

(e) Unlock all of the doors using the wireless door unlock or entry door unlock function.

(f) Check that the taillights, parking lights, front side marker lights and license plate lights illuminate for 15 seconds.

OUTSIDE HANDLE FOOT LIGHT CONTROL OPERATION CHECK

NOTICE:

Make sure that the customize settings are set to default when performing the outside handle foot light control operation check.

Click here

(a) The operation and condition of this control are described below.

Operation	Condition
Fade in and illuminate constantly	When any of the following conditions is met, the lights fade in and illuminate constantly: A key is detected in the actuation area. Any door is unlocked when the engine switch is off and all of the doors are closed. The engine switch is off, any door is opened when all doors are closed.
Illuminate for 15 seconds, and then 2 steps fade out	When any of the following conditions is met, the lights illuminate for 15 seconds, and then in 2 steps fade out: An actuation area-linked function is used.* All doors are closed and then any door is opened. Any door is unlocked when the engine switch is off and all of the doors are closed. The engine switch is off, any door is opened when all doors are closed. Any door is closed or opened.
Fade out immediately	When the following condition is met, the lights fade out immediately: The engine switch is turned from off to on (ACC) or on (IG).
2 steps fade out immediately	When any of the following conditions is met, the lights 2 steps fade out immediately: All doors are locked when all doors are closed and any door is unlocked. All doors are locked again when all doors are closed and locked. All doors are closed and then any door is opened.

HINT:

*: When the lights are on, if the key leaves the actuation areas around the doors, the lights fade out after approximately 3 seconds.

CORNERING LIGHT CONTROL OPERATION CHECK

(a) Turn the engine switch on (IG).

(b) Turn the light control switch to the head position.

(c) Perform the following operations while driving the vehicle at 30 km/h (19 mph) or less and check that the cornering lights operate appropriately.

Operate the left turn signal switch and check that the cornering light LH illuminates.*
Operate the right turn signal switch and check that the cornering light RH illuminates.*
Turn the steering wheel 80 degrees or more to the left and check that the cornering light LH illuminates. Turn the steering wheel to an angle of 30 degrees or less and check that the cornering light LH turns off.*
Turn the steering wheel 80 degrees or more to the right and check that the cornering light RH illuminates. Turn the steering wheel to an angle of 30 degrees or less and check that the cornering light RH turns off.*
Move the shift lever to R and check that the cornering light LH and cornering light RH illuminate.

NOTICE:

When disconnecting the cable from the battery terminal, if the steering angle sensor steering neutral point is not stored, the cornering lights may not operate as listed above in*. When disconnecting the cable from the battery terminal, perform the confirmation driving pattern to store the steering angle sensor steering neutral point.

Click here

AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM OPERATION CHECK (for LED Type Turn Signal Light)

(a) Stop the vehicle on a level surface and keep the vehicle height unchanged.

(b) Start the engine.

AFS OPERATION CHECK (for LED Type Turn Signal Light)

NOTICE:

Make sure that the customize settings are set to default when performing the AFS operation check.

Click here

(a) Perform the following operation with the low beam headlights on and check that the headlight ECU sub-assembly LH performs low speed control of the AFS:

Drive the vehicle at a speed between 10 km/h (6 mph) and 30 km/h (19 mph) and turn the steering wheel 27 degrees or more.

(b) Perform the following operation with the low beam headlights on and check that the headlight ECU sub-assembly LH performs medium-to-high speed control of the AFS:

Drive the vehicle at a speed of 30 km/h (19 mph) or more and turn the steering wheel 7.5 degrees or more.

Stop the engine.
Turn the low beam headlights off.
Decrease the vehicle speed to less than 5 km/h (3 mph).
Reduce the steering angle to less than 6 degrees.
Move the shift lever to N or R.

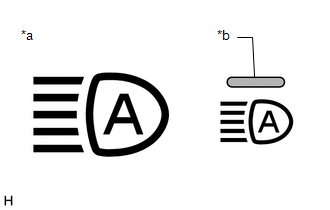

*a	Automatic High Beam Indicator Light on Combination Meter Assembly
*b	Automatic High Beam Switch Indicator

AUTOMATIC HIGH BEAM SYSTEM OPERATION CHECK

(a) Check the operation of the automatic high beam indicator light.

(1) Turn the engine switch on (IG).

(2) Turn the light control switch to the AUTO or head position.

(3) Move the dimmer switch to the high position.

(4) Press the automatic high beam switch (indicator illuminates).

HINT:

If the automatic high beam switch is turned on when the light control switch is not in the AUTO or head position, or the dimmer switch is not in the high position, "To Activate AHB, Switch Headlights to High Beam" will be displayed on the multi-information display.

(5) Check that the automatic high beam indicator illuminates.

NOTICE:

If the forward recognition camera cannot operate due to high vehicle interior temperatures, bad weather (rain, fog, etc.) or fogged up or dirty glass, the automatic high beam system will not operate and the automatic high beam indicator will not illuminate.

(b) Check the operation of the automatic high beam function.

(1) At night, when driving the vehicle with the automatic high beam system in standby mode, check that the high beams automatically turn on after a short delay when all of the following conditions are met:

The vehicle speed is more than approximately 34 km/h (21 mph).
The area in front of the vehicle is dark.
There are no oncoming vehicles with headlights on.
There are no preceding vehicles with taillights on.
There are few streetlights along the street ahead.

(2) At night, when driving the vehicle with the high beams turned on by the automatic high beam system, check that the automatic high beam system turns off the high beams and returns to standby mode when any of the following conditions are met:

The vehicle speed is less than approximately 27 km/h (17 mph).
The level of ambient light is higher than a specified threshold.
There are oncoming vehicles with headlights on.
There are preceding vehicles with taillights on.
Light from streetlights ahead is higher than a specified threshold.
