Lexus ES: Parts Location
PARTS LOCATION

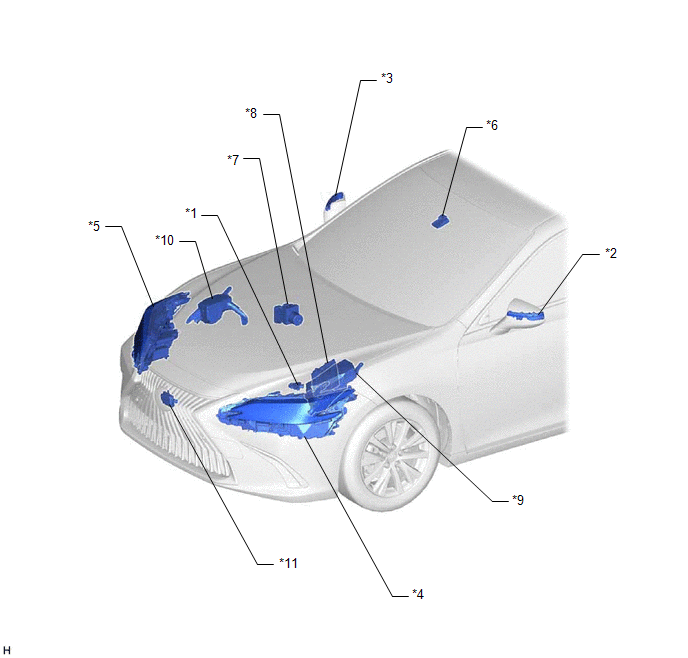

ILLUSTRATION
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH (for TMC Made) - HEADLIGHT CORD LH (for Bulb Type Turn Signal Light) (for TMC Made) |
| *5 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH (for TMC Made) - HEADLIGHT CORD RH (for Bulb Type Turn Signal Light) (for TMC Made) | *6 | FORWARD RECOGNITION CAMERA |
| *7 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *8 | ECM |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ALT FUSE | *10 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - H-LP LH RELAY - H-LP RH RELAY - H-LP LH FUSE - H-LP RH FUSE |
| *11 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |

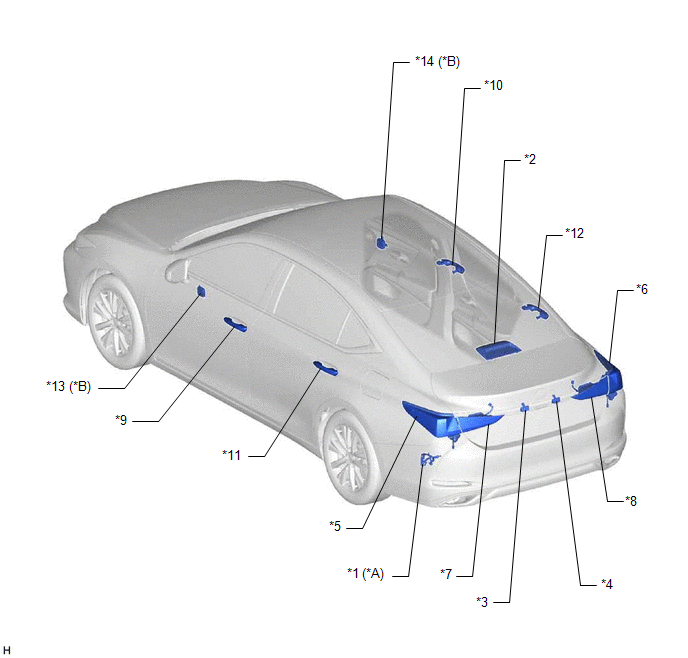

ILLUSTRATION
| *A | for LED Type Turn Signal Light | *B | w/ Seat Position Memory |
| *1 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH | *2 | CENTER STOP LIGHT SET |
| *3 | LICENSE PLATE LIGHT ASSEMBLY LH | *4 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH (for TMC Made) | *6 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH (for TMC Made) |
| *7 | REAR LIGHT ASSEMBLY LH | *8 | REAR LIGHT ASSEMBLY RH |
| *9 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH | *10 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH |
| *11 | REAR DOOR OUTSIDE HANDLE ASSEMBLY LH | *12 | REAR DOOR OUTSIDE HANDLE ASSEMBLY RH |
| *13 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *14 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |

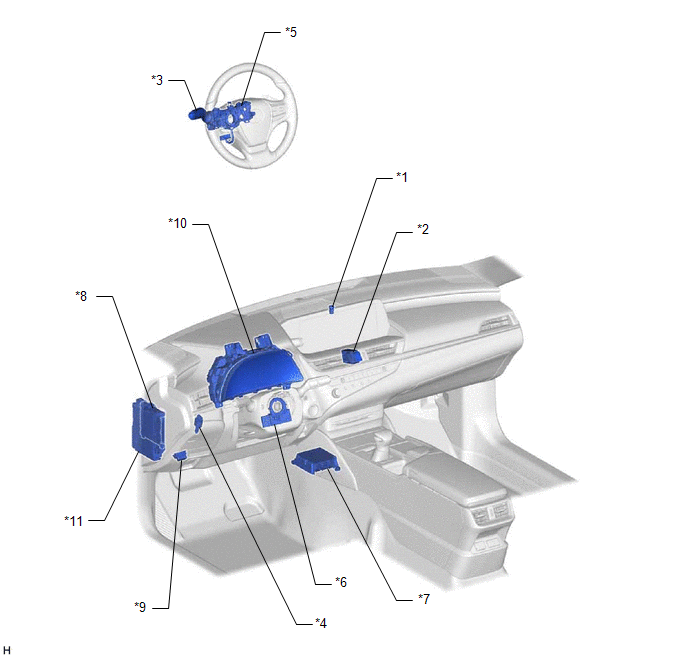

ILLUSTRATION
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | TURN SIGNAL SWITCH | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | STEERING WHEEL SWITCH HOUSING | *6 | STEERING SENSOR |
| *7 | AIRBAG ECU ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | *10 | COMBINATION METER ASSEMBLY |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL RELAY - BKUP LP RELAY - TAIL FUSE - BKUP LP FUSE - ECU-IG1 NO. 3 FUSE - ECU-DCC NO. 2 FUSE - HAZ FUSE - METER-IG2 FUSE - STOP FUSE - ECU-ACC FUSE | - | - |
