PARTS LOCATION

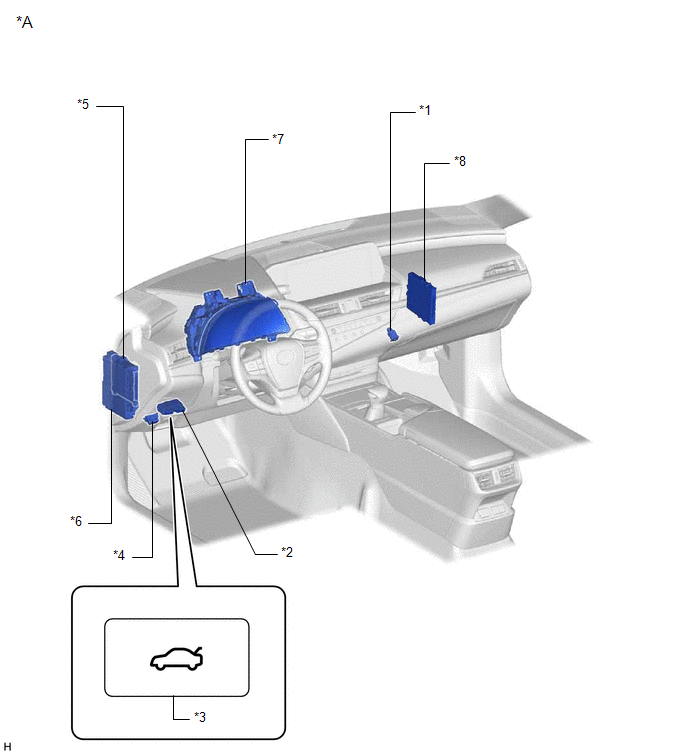

ILLUSTRATION
*1 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY | *2 | TRUNK AND FUEL SWITCH ASSEMBLY |
*3 | LUGGAGE COMPARTMENT DOOR OPENING SWITCH | *4 | DLC3 |
*5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
*7 | COMBINATION METER ASSEMBLY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |

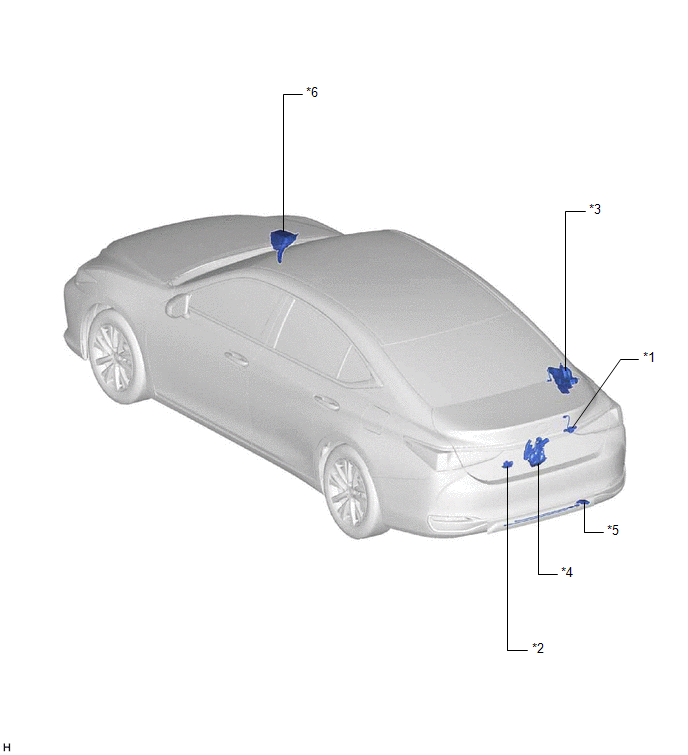

ILLUSTRATION
*1 | LUGGAGE ELECTRICAL KEY SWITCH | *2 | DOOR CONTROL SWITCH |
*3 | LUGGAGE CLOSER MOTOR ASSEMBLY | *4 | LUGGAGE DOOR CLOSER ASSEMBLY - CLOSER MOTOR - PAWL SWITCH - HALF LATCH SWITCH |
*5 | KICK DOOR CONTROL SENSOR | *6 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - PTL FUSE |
