Lexus ES: Parts Location

PARTS LOCATION

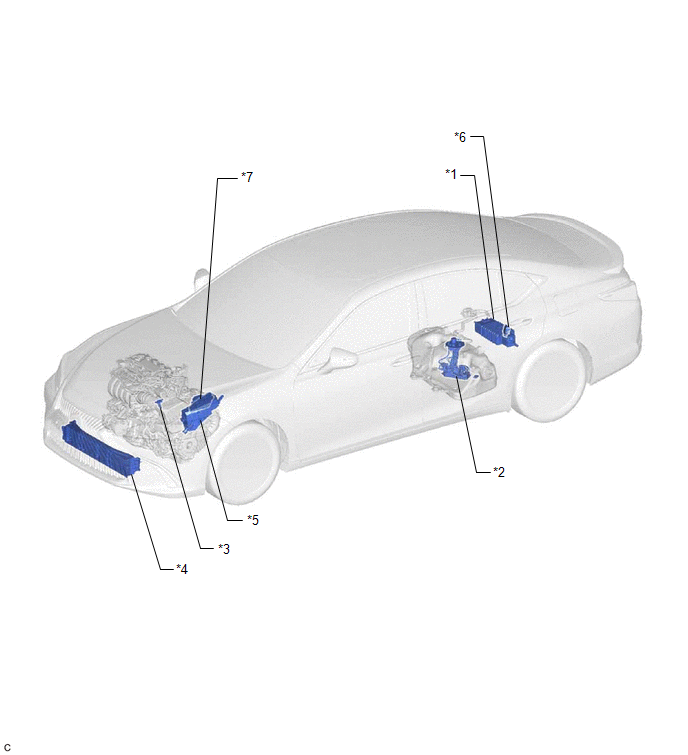

ILLUSTRATION

*1

CANISTER

*2

FUEL PUMP (for Low Pressure Side)

*3

MASS AIR FLOW METER SUB-ASSEMBLY

*4

RADIATOR SHUTTER ASSEMBLY

  • RADIATOR SHUTTER SUB-ASSEMBLY
  • SWING GRILLE ACTUATOR ASSEMBLY
    • GRILLE SHUTTER ECU

*5

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

*6

FUEL PUMP CONTROL ECU

*7

ECM

-

-

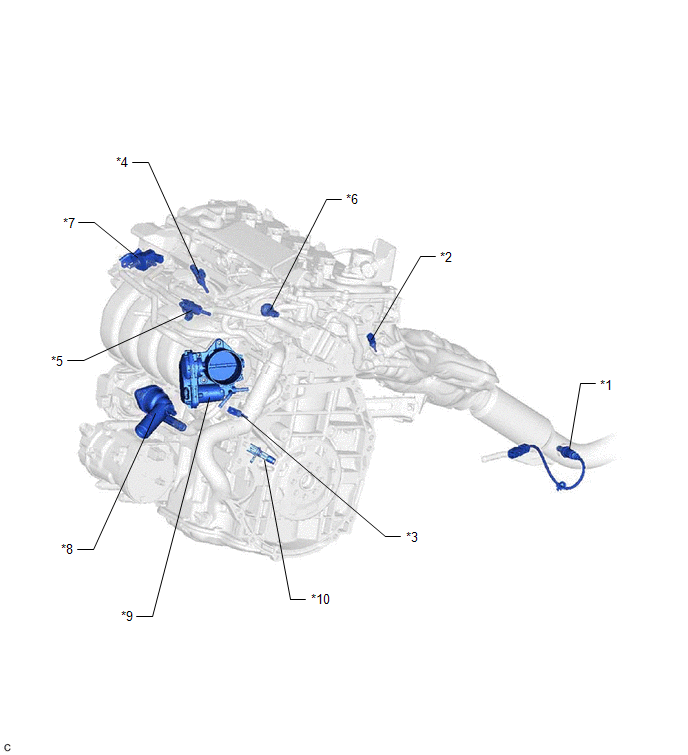

ILLUSTRATION

*1

AIR FUEL RATIO SENSOR (Sensor 2)

*2

ENGINE COOLANT TEMPERATURE SENSOR

*3

NO. 2 ENGINE COOLANT TEMPERATURE SENSOR

*4

PORT FUEL INJECTOR ASSEMBLY

*5

DIRECT FUEL INJECTOR ASSEMBLY

*6

NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side)

*7

PURGE VSV

*8

WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

*9

THROTTLE BODY WITH MOTOR ASSEMBLY

*10

CRANKSHAFT POSITION SENSOR

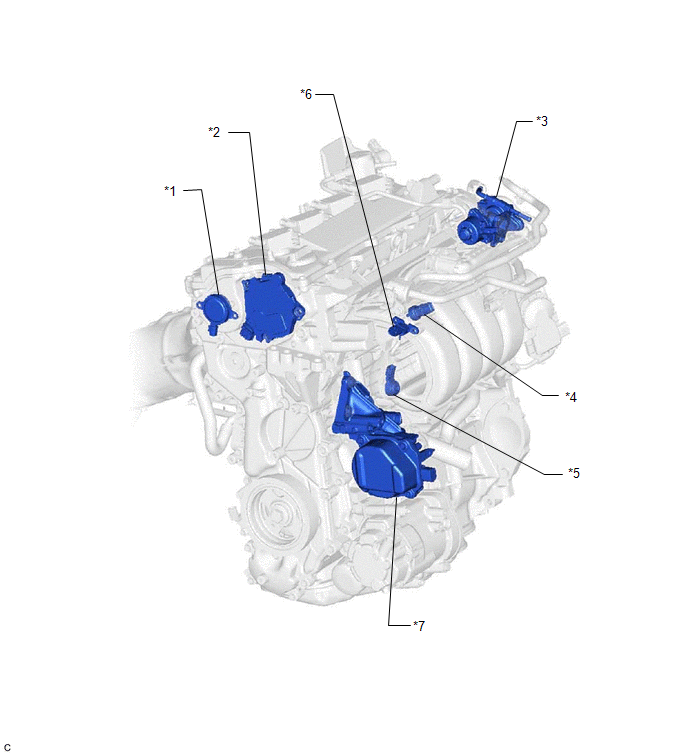

ILLUSTRATION

*1

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

*2

CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

*3

EGR VALVE ASSEMBLY

*4

FUEL PRESSURE SENSOR (for High Pressure Side)

*5

KNOCK CONTROL SENSOR

*6

MANIFOLD ABSOLUTE PRESSURE SENSOR

*7

WATER INLET HOUSING WITH WATER PUMP SUB-ASSEMBLY

-

-

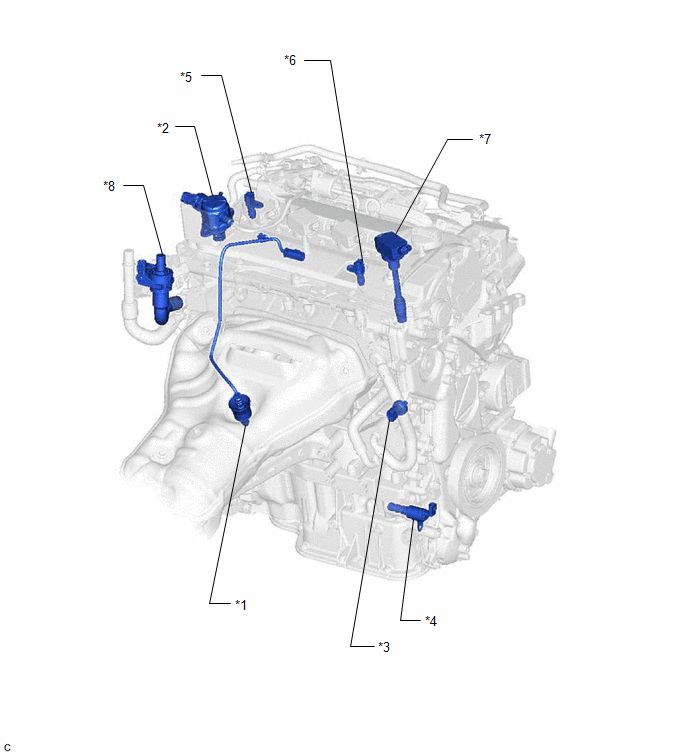

ILLUSTRATION

*1

AIR FUEL RATIO SENSOR (Sensor 1)

*2

FUEL PUMP ASSEMBLY (for High Pressure Side)

*3

OIL PRESSURE AND TEMPERATURE SENSOR

*4

OIL PRESSURE CONTROL VALVE ASSEMBLY

*5

CAMSHAFT POSITION SENSOR (for Intake Camshaft)

*6

CAMSHAFT POSITION SENSOR (for Exhaust Camshaft)

*7

IGNITION COIL ASSEMBLY

*8

WATER BYPASS HOSE ASSEMBLY

  • FLOW SHUTTING VALVE

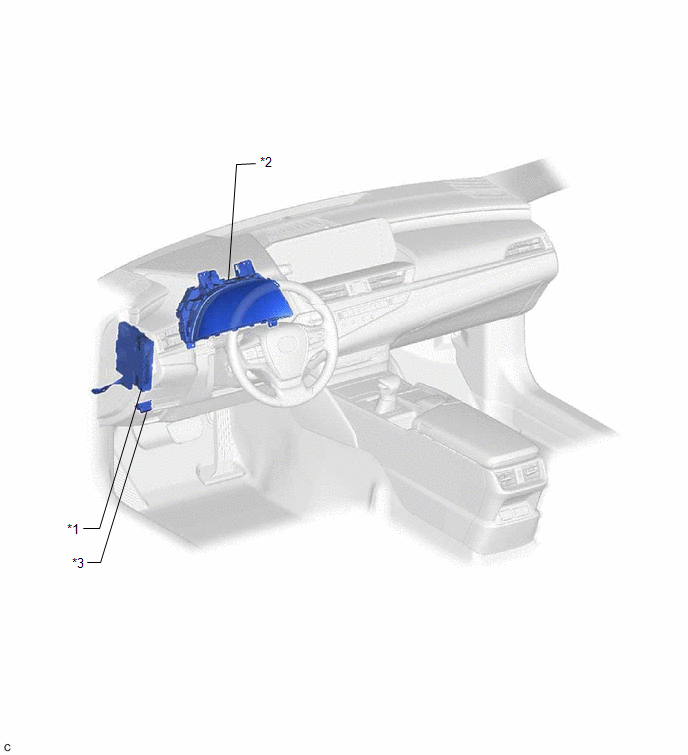

ILLUSTRATION

*1

HYBRID VEHICLE CONTROL ECU ASSEMBLY

*2

COMBINATION METER ASSEMBLY

*3

DLC3

-

-
