Lexus ES: LIN Communication Bus Malfunction (B2325)
DESCRIPTION
If the main body ECU (multiplex network body ECU) detects a communication error with an ECU connected to the door bus lines for 8 seconds or more, DTC B2325 will be stored.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B2325 | LIN Communication Bus Malfunction | The main body ECU (multiplex network body ECU) detects a communication error with an ECU connected to the door bus lines for 8 seconds or more. |
|
- *1: w/ Sliding Roof System
- *2: w/ Panoramic Moon Roof System
- *3: w/ Power Trunk Lid System

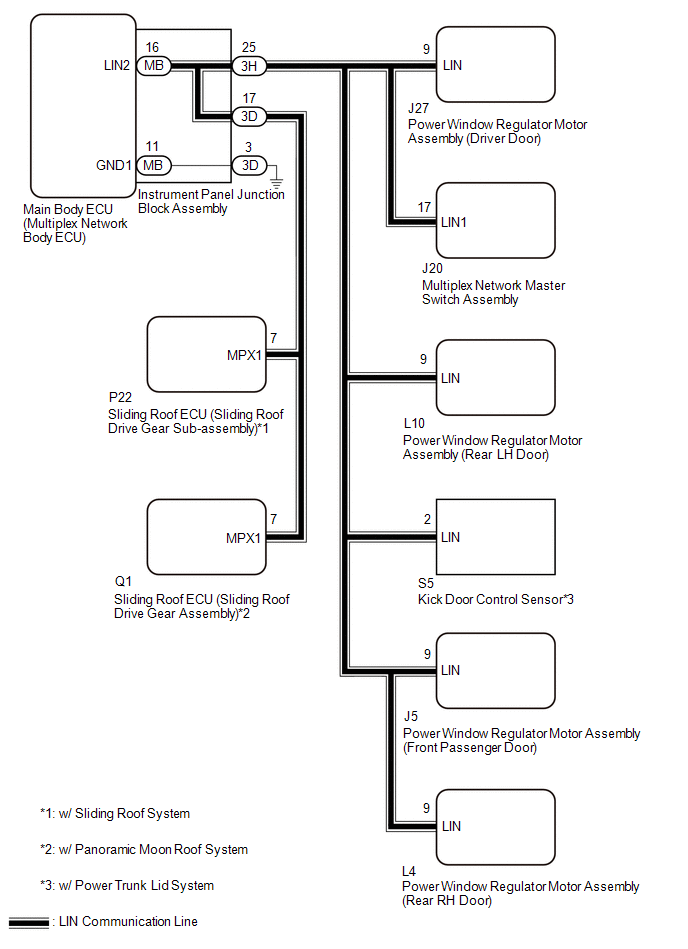

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
-
When a power window regulator motor assembly is replaced or removed and reinstalled, it is necessary to perform initialization.
Click here
.gif)
-
When the sliding roof ECU (sliding roof drive gear sub-assembly) is replaced or removed and reinstalled, it is necessary to perform initialization.*
Click here
- *: w/ Sliding Roof System
-
When the sliding roof ECU (sliding roof drive gear assembly) is replaced or removed and reinstalled, it is necessary to perform initialization.*
Click here
- *: w/ Panoramic Moon Roof System
-
Before replacing the main body ECU (multiplex network body ECU), refer to Registration.
Click here
PROCEDURE
| 1. | CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR) |
(a) Disconnect the J27 power window regulator motor assembly (driver door) connector.
(b) Clear the DTCs.
Body Electrical > Main Body > Clear DTCs(c) After 8 seconds have elapsed, check if the DTC is output.
Body Electrical > Main Body > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B2325 is output | A |
| DTC B2325 is not output | B |
| B | .gif) | REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR) |
|
.gif)
| 2. | CHECK MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
(a) Disconnect the J20 multiplex network master switch assembly connector.
(b) Clear the DTCs.
Body Electrical > Main Body > Clear DTCs(c) After 10 seconds have elapsed, check if the DTC is output.
Body Electrical > Main Body > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B2325 is output | A |
| DTC B2325 is not output | B |
| B | | REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
|
| 3. | CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR) |
(a) Disconnect the J5 power window regulator motor assembly (front passenger door) connector.
(b) Clear the DTCs.
Body Electrical > Main Body > Clear DTCs(c) After 10 seconds have elapsed, check if the DTC is output.
Body Electrical > Main Body > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B2325 is output | A |
| DTC B2325 is not output | B |
| B | | REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR) |
|
| 4. | CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR) |
(a) Disconnect the L4 power window regulator motor assembly (rear RH door) connector.
(b) Clear the DTCs.
Body Electrical > Main Body > Clear DTCs(c) After 10 seconds have elapsed, check if the DTC is output.
Body Electrical > Main Body > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B2325 is output | A |
| DTC B2325 is not output | B |
| B | | REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR) |
|
| 5. | CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR) |
(a) Disconnect the L10 power window regulator motor assembly (rear LH door) connector.
(b) Clear the DTCs.
Body Electrical > Main Body > Clear DTCs(c) After 10 seconds have elapsed, check if the DTC is output.
Body Electrical > Main Body > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B2325 is output*1 | A |
| DTC B2325 is output*2 | B |
| DTC B2325 is not output | C |
- *1: w/ Power Trunk Lid System
- *2: w/o Power Trunk Lid System
| B | | GO TO STEP 7 |
| C | | REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR) |
|
| 6. | CHECK KICK DOOR CONTROL SENSOR |
(a) Disconnect the S5 kick door control sensor connector.
(b) Clear the DTCs.
Body Electrical > Main Body > Clear DTCs(c) After 10 seconds have elapsed, check if the DTC is output.
Body Electrical > Main Body > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B2325 is output | A |
| DTC B2325 is not output | B |
| B | | REPLACE KICK DOOR CONTROL SENSOR |
|
| 7. | CHECK SLIDING ROOF ECU |
(a) Disconnect the P22 sliding roof ECU (sliding roof drive gear sub-assembly) connector.*1
(b) Disconnect the Q1 sliding roof ECU (sliding roof drive gear assembly) connector.*2
- *1: w/ Sliding Roof System
- *2: w/ Panoramic Moon Roof System
(c) Clear the DTCs.
Body Electrical > Main Body > Clear DTCs(d) After 10 seconds have elapsed, check if the DTC is output.
Body Electrical > Main Body > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B2325 is output | A |
| DTC B2325 is not output*1 | B |
| DTC B2325 is not output*2 | C |
- *1: w/ Sliding Roof System
- *2: w/ Panoramic Moon Roof System
| B | | REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) |
| C | | REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
|
| 8. | CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - EACH ECU) |
(a) Disconnect the 3H instrument panel junction block assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| 3H-25 - Body ground | Always | 10 kΩ or higher |
(c) Disconnect all other connectors in the same circuit.
(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| 3H-25 - Other terminals | Always | 10 kΩ or higher |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 9. | CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - SLIDING ROOF ECU) |
(a) Disconnect the 3D instrument panel junction block assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| 3D-17 - Body ground | Always | 10 kΩ or higher |
| 3D-17 - Other terminals | Always | 10 kΩ or higher |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 10. | INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
(a) Remove the instrument panel junction block assembly.
Click here
(b) Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

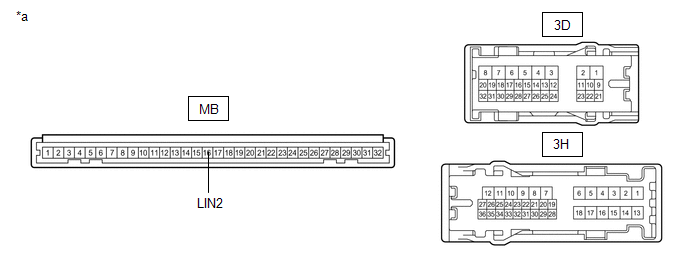

.png)
| *a | Component without harness connected (Instrument Panel Junction Block Assembly) | - | - |
(c) Measure the resistance according to the value(s) in the table below.
HINT:
This inspection is to check the LIN communication line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| 3H-25 - 3D-3 | Always | 10 kΩ or higher |
| MB-16 (LIN2) - Other terminals | Always | 10 kΩ or higher |
| NG | | REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
|
| 11. | INSPECT MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
(a) Install the main body ECU (multiplex network body ECU) to the instrument panel junction block assembly.
Click here
(b) Install the instrument panel junction block assembly.

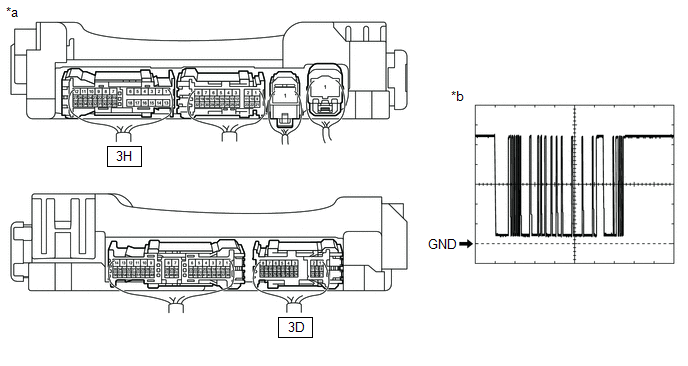

.png)
| *a | Component with harness connected (Instrument Panel Junction Block Assembly) | *b | Waveform |
(c) Using a Techstream, check the waveform.
HINT:
This inspection is to check the LIN communication line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).
OK:
| Tester Connection | Condition | Tool Setting | Specified Condition |
|---|---|---|---|
| 3H-25 - Body ground | Engine switch on (IG) | 2 V/DIV., 200 ms/DIV. | Pulse generation (See waveform) |
| 3D-17 - Body ground | Engine switch on (IG) | 2 V/DIV., 200 ms/DIV. | Pulse generation (See waveform) |
| OK | | USE SIMULATION METHOD TO CHECK |
| NG | | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
