Lexus ES (XZ10) Service Manual / Vehicle Interior / Wiper / Washer / Washer Motor / Installation

INSTALLATION

PROCEDURE

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

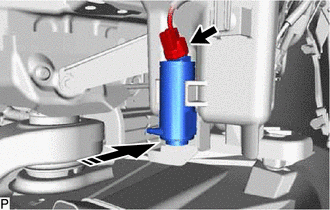

(a) Install the windshield washer motor and pump assembly as shown in the illustration.

Install in this Direction

(b) Connect the connector.

(c) Connect the washer hose.

2. ADD WASHER FLUID

(a) Connect the washer hose.

(b) Add washer fluid to the washer jar.

3. INSTALL FRONT FENDER LINER RETAINER

HINT:

Use the same procedure for the RH side and LH side.

Click here

4. INSTALL REAR FENDER SPLASH SHIELD SUB-ASSEMBLY RH

(a) Install the rear fender splash shield sub-assembly RH with the 13 clips and 6 screws.

(b) Engage the 3 claws.

5. INSTALL PIN HOLD CLIP

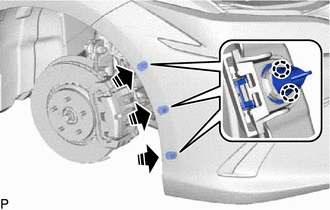

(a) Engage the 6 claws to install the 3 pin hold clips as shown in the illustration.

Install in this Direction

6. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

(a) Install the front wheel opening extension pad RH with the 3 screws.

7. INSTALL FRONT WHEEL RH

Click here
