Lexus ES: Components

COMPONENTS

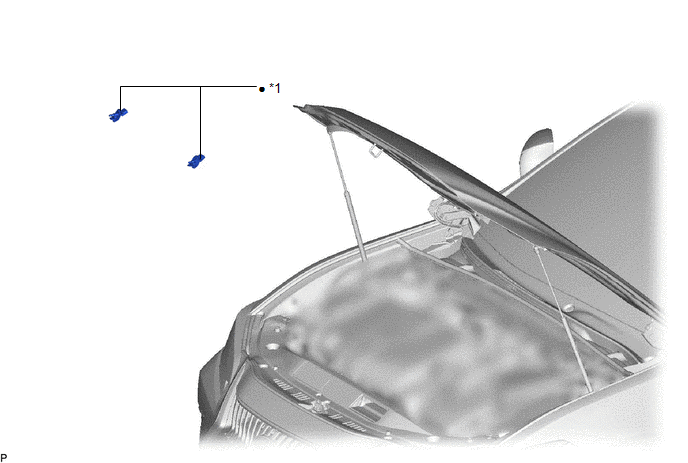

ILLUSTRATION

*1

WASHER NOZZLE SUB-ASSEMBLY

-

-

Non-reusable part

-

-

READ NEXT:

 On-vehicle Inspection

ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT WASHER NOZZLE SUB-ASSEMBLY (a) Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield. Standard: Cent

 Removal

REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1. REMOVE WASHER NOZZLE SUB-ASSEMBLY (a) Using a

 Adjustment

ADJUSTMENT PROCEDURE 1. REMOVE WASHER NOZZLE SUB-ASSEMBLY Click here 2. ADJUST WASHER NOZZLE SUB-ASSEMBLY (a) Select a washer nozzle sub-assembly so the position the washer fluid hits the windshield
