Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL STOP LIGHT SWITCH ASSEMBLY

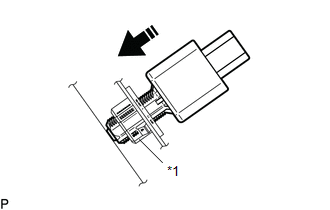

(a) Insert the stop light switch assembly until the threaded sleeve hits the pedal as shown in the illustration.

*1

Stop Light Switch Mounting Adjuster

Insert in this Direction

NOTICE:

When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.

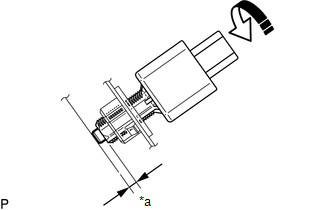

(b) Turn the stop light switch assembly 1/4 turn clockwise as shown in the illustration to install it.

*a

Protrusion of the Plunger

Turn in this Direction

Torque:

1.5 N·m {15 kgf·cm, 13 in·lbf}

or less

(c) Connect the connector.

(d) Check the protrusion of the plunger.

Protrusion of the Plunger

Area

Measurement

a

0.5 to 2.6 mm (0.0197 to 0.102 in.)

(e) If the protrusion is not as specified, recheck the stop light switch assembly installation and perform brake pedal adjustment if necessary.

for Gasoline Model:

Click here

for HV Model:

Click here

NOTICE:

Do not depress or support the brake pedal.

2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here
