Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the steering wheel switch housing removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Control System (for HV Model)

Pre-collision System (for HV Model)

Parking Support Brake System (for HV Model)*

Lighting System (for HV Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for HV Model)

Panoramic View Monitor System (for HV Model)

Initialize power trunk lid system

Power Trunk Lid System (for HV Model)

Removal/installation of the spiral cable with sensor sub-assembly

Steering angle zero point learning (Initialize parking support brake system)

  • Parking Support Alert System (for HV Model)
  • Parking Support Brake System (for HV Model)

  • Steering angle zero point learning (Initialize parking assist monitor system)
  • Steering angle setting

Parking Assist Monitor System (for HV Model)

for Initialization

for Calibration

Steering angle zero point learning (Initialize panoramic view monitor system)

Panoramic View Monitor System (for HV Model)

for Initialization

for Calibration

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

NOTICE:

  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)
Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Control System (for Gasoline Model)

Pre-collision System (for Gasoline Model)

Parking Support Brake System (for Gasoline Model)*

Lighting System (for Gasoline Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for Gasoline Model)

Panoramic View Monitor System (for Gasoline Model)

Initialize power trunk lid system

Power Trunk Lid System (for Gasoline Model)

Removal/installation of the spiral cable with sensor sub-assembly

Steering angle zero point learning (Initialize parking support brake system)

  • Parking Support Alert System (for Gasoline Model)
  • Parking Support Brake System (for Gasoline Model)

  • Steering angle zero point learning (Initialize parking assist monitor system)
  • Steering angle setting

Parking Assist Monitor System (for Gasoline Model)

for Initialization

for Calibration

Steering angle zero point learning (Initialize panoramic view monitor system)

Panoramic View Monitor System (for Gasoline Model)

for Initialization

for Calibration

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)

PROCEDURE

1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click here

2. REMOVE TILT AND TELESCOPIC SWITCH (for Power Tilt and Power Telescopic Steering Column)

Click here

3. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

Click here

4. REMOVE TURN SIGNAL SWITCH

Click here

5. REMOVE STEERING WHEEL SWITCH HOUSING

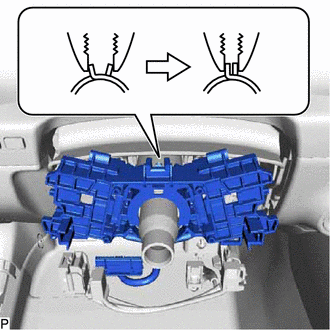

(a) Using pliers, expand the clamp as shown in the illustration.

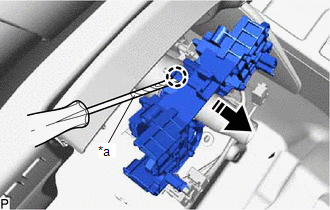

(b) While holding the clamp expanded, using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the steering wheel switch housing as shown in the illustration.

*a

Protective Tape

Remove in this Direction
