Lexus ES (XZ10) Service Manual / Vehicle Interior / Door / Hatch / Luggage Compartment Door Opener Main Switch / Installation

INSTALLATION

PROCEDURE

1. INSTALL LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY

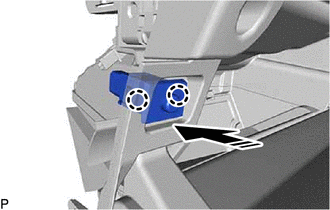

(a) Engage the 2 claws to install the luggage door opening cancel switch assembly as shown in the illustration.

Install in this Direction

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

Click here

3. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click here
