INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

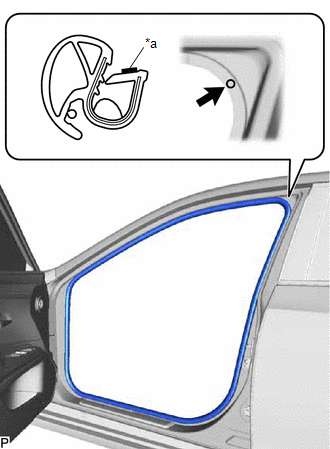

(a) Align the alignment mark on the front door opening trim weatherstrip with the flange on the vehicle body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip.

*a

Alignment Mark

Flange Position

NOTICE:

  • Make sure to align the alignment mark with the flange when installing the weatherstrip. If the alignment mark is not aligned, water ingress may occur.
  • After installation, check that the corners fit correctly.

HINT:

  • Make sure to install the part of the front door opening trim weatherstrip near the alignment mark first.
  • The color of the alignment marks on the front door opening trim weatherstrip LH and front door opening trim weatherstrip RH are different.

    Alignment Mark:

    Location

    Color

    for LH Side

    Pink

    for RH Side

    Blue

2. INSTALL ROOF HEADLINING ASSEMBLY
