Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

After installing the luggage compartment door support assembly, use your hand to open and close the luggage door. Make sure the luggage door can open and close smoothly.

PROCEDURE

1. INSTALL LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY

NOTICE:

  • Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.
  • Do not wear cotton gloves or other similar materials when handling the piston rod. Fibers may attach to the rod and result in gas leaks.
  • Do not apply any horizontal load to the luggage compartment door support assembly in order to prevent the piston rod from deforming.

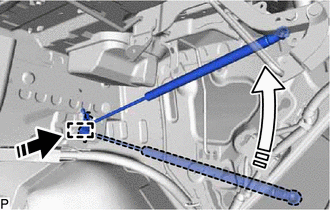

(a) Engage the guide as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

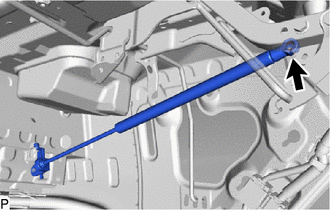

(b) Engage the ball joint to install the luggage compartment door support assembly.

NOTICE:

Install the luggage compartment door support assembly while supporting the luggage door by hand.

(c) Check that the ball joint is engaged securely and the luggage compartment door support assembly cannot be pulled off.

2. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER RH

Click here

3. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH

Click here

4. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

HINT:

Use the same procedure as for the LH side.

Click here

5. INSTALL LUGGAGE COMPARTMENT DOOR COVER

Click here

6. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE

Click here

7. INSTALL REAR FLOOR FINISH PLATE

Click here

8. INSTALL SPARE WHEEL COVER TRAY

Click here

9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

Click here
