Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

(a) Install the front lower arm bushing stopper to the front lower No. 1 suspension arm sub-assembly.

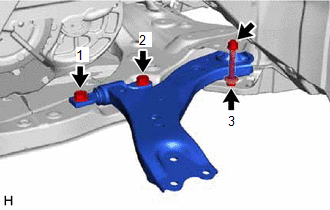

(b) Install the front lower No. 1 suspension arm sub-assembly to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.

Torque:

Bolt (1), (2) :

200 N·m {2039 kgf·cm, 148 ft·lbf}

Bolt (3) :

135 N·m {1377 kgf·cm, 100 ft·lbf}

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

(c) Connect the front lower No. 1 suspension arm sub-assembly to the front lower ball joint assembly with the bolt and 2 nuts.

Torque:

92 N·m {938 kgf·cm, 68 ft·lbf}

2. INSTALL FRONT FENDER APRON SEAL LH

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

3. INSTALL FRONT FLOOR COVER LH

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

4. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY (for A25A-FKS, A25A-FXS)

for A25A-FKS: Click here

for A25A-FXS: Click here

5. INSTALL NO. 3 ENGINE UNDER COVER (for 2GR-FKS)

Click here

6. INSTALL NO. 1 ENGINE UNDER COVER

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

7. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

8. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

9. INSTALL FRONT WHEEL

Click here

10. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click here

11. PERFORM INITIALIZATION

for HV Model:
*1: for LED type turn signal light
  • Parking Support Alert System
  • Parking Support Brake System

Parking Assist Monitor System

for Initialization:

for Calibration:

Panoramic View Monitor System

for Initialization:

for Calibration:

Lighting System*1

for Gasoline Model:
*1: for LED type turn signal light
  • Parking Support Alert System
  • Parking Support Brake System

Parking Assist Monitor System

for Initialization:

for Calibration:

Panoramic View Monitor System

for Initialization:

for Calibration:

Lighting System*1
