INSTALLATION
PROCEDURE
1. INSTALL SERVICE PLUG GRIP
CAUTION:
Be sure to wear insulated gloves.
NOTICE:
Before installing the service plug grip, check that no parts or tools remain and that the high voltage terminals and connectors are connected securely.

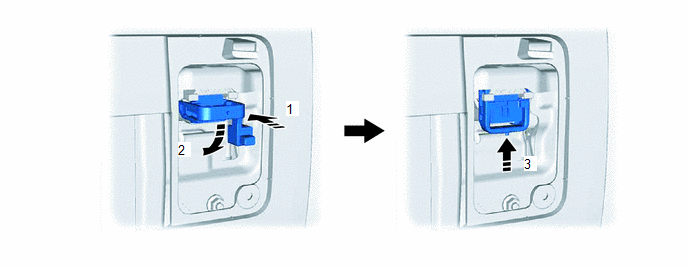

(a) While wearing insulated gloves, and temporarily install the service plug grip as indicated by the arrow (1) shown in the illustration.
(b) Rotate the handle of the service plug grip 90° toward the HV battery and slide it in the direction indicated by the arrow (3) shown in the illustration until a click sound is heard to install the service plug grip.
2. INSTALL BATTERY SERVICE HOLE COVER
Click here .gif)
3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
