Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL FUEL PRESSURE SENSOR

HINT:

Perform "Inspection After Repair" after replacing the fuel pressure sensor.

Click here

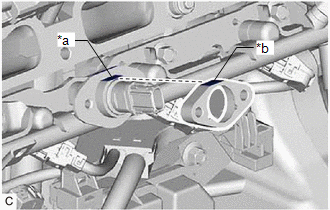

(a) Temporarily install a new fuel pressure sensor to the fuel delivery pipe as shown in the illustration.

NOTICE:

Make sure that the cutout of the fuel delivery pipe is aligned with the cutout of the fuel pressure sensor.

*a

Cutout (Fuel Delivery Pipe)

*b

Cutout (Fuel Pressure Sensor)

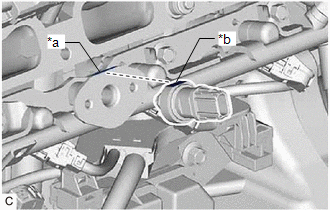

(b) Temporarily install the No. 1 fuel pressure sensor holder to the fuel delivery pipe as shown in the illustration.

NOTICE:

Make sure that the cutout of the fuel pressure sensor is aligned with the cutout of the No. 1 fuel pressure sensor holder.

*a

Cutout (Fuel Pressure Sensor)

*b

Cutout (No. 1 Fuel Pressure Sensor Holder)

(c) Using an 8 mm socket wrench, install the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(d) Connect the fuel pressure sensor connector.

2. INSTALL INTAKE MANIFOLD

Click here

3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

4. INSPECT FOR FUEL LEAK

Click here

5. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the fuel pressure sensor.

Click here
