INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL NO. 2 FUEL PRESSURE SENSOR

HINT:

Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor.

Click here

(a) Install a new O-ring to the No. 2 fuel pressure sensor.

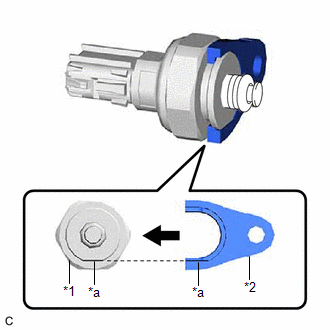

(b) Install the No. 2 fuel pressure sensor holder to the No. 2 fuel pressure sensor as shown in the illustration.

*1

No. 2 Fuel Pressure Sensor

*2

No. 2 Fuel Pressure Sensor Holder

*a

Flat

(c) Using an 8 mm socket wrench, install the No. 2 fuel pressure sensor with the No. 2 fuel pressure sensor holder to the fuel delivery pipe sub-assembly with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(d) Connect the No. 2 fuel pressure sensor connector.

2. TEMPORARILY INSTALL FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

Click here

3. TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

Click here

4. INSTALL FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

Click here

5. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

Click here

6. CONNECT FUEL TUBE SUB-ASSEMBLY

Click here

7. INSTALL NO. 2 WATER BY-PASS PIPE

Click here

8. INSTALL EGR VALVE ASSEMBLY

Click here

9. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

Click here

10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

11. INSPECT FOR FUEL LEAK

Click here

12. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor.

Click here
