Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL CYLINDER HEAD GASKET

(a) Clean the cylinder block sub-assembly and cylinder head sub-assembly with solvent.

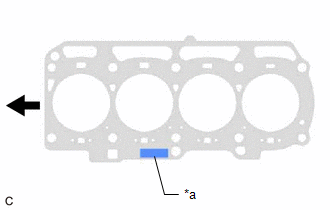

(b) Place a new cylinder head gasket on the cylinder block sub-assembly as shown in the illustration.

*a

Lot No.

Front of Engine

NOTICE:

  • Make sure that the cylinder head gasket is installed in the correct orientation.
  • Remove any oil from the contact surfaces.

2. INSTALL CYLINDER HEAD SUB-ASSEMBLY

Click here

3. INSTALL NO. 2 CAMSHAFT

Click here

4. INSTALL CAMSHAFT

Click here

5. INSTALL CAMSHAFT BEARING CAP

Click here

6. INSTALL VALVE STEM CAP

Click here

7. INSTALL VALVE LASH ADJUSTER ASSEMBLY

Click here

8. INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

Click here

9. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY

Click here

10. INSTALL FUEL PUMP LIFTER GUIDE

Click here

11. INSTALL TIMING CHAIN COVER ASSEMBLY

Click here

12. INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

Click here

13. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

Click here

14. INSTALL NO. 1 CHAIN VIBRATION DAMPER

Click here

15. INSTALL CHAIN TENSIONER SLIPPER

Click here

16. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

Click here

17. INSTALL CHAIN SUB-ASSEMBLY

Click here

18. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY

Click here

19. INSTALL OIL PUMP DRIVE CHAIN SUB-ASSEMBLY

Click here

20. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

Click here

21. INSTALL NO. 2 TIMING CHAIN COVER ASSEMBLY

Click here

22. INSTALL TIMING CHAIN COVER OIL SEAL

Click here

23. INSTALL SPARK PLUG TUBE GASKET

Click here

24. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

Click here

25. INSTALL WATER BY-PASS OUTLET SUB-ASSEMBLY

Click here

26. INSTALL WATER OUTLET

Click here

27. INSTALL CRANKSHAFT PULLEY ASSEMBLY

Click here

28. INSTALL CAM TIMING CONTROL MOTOR O-RING

Click here

29. INSTALL CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

Click here

30. INSTALL O-RING

Click here

31. INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

32. INSTALL OIL PRESSURE CONTROL VALVE ASSEMBLY

Click here

33. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

Click here

34. INSTALL IGNITION COIL ASSEMBLY

Click here

35. INSTALL DIRECT FUEL INJECTOR ASSEMBLY

Click here

36. INSTALL FUEL DELIVERY PIPE

Click here

37. INSTALL PORT FUEL INJECTOR ASSEMBLY

Click here

38. INSTALL NO. 5 ENGINE WIRE

Click here

39. INSTALL INJECTOR VIBRATION INSULATOR

Click here

40. INSTALL NO. 1 DELIVERY PIPE SPACER

Click here

41. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY

Click here

42. INSTALL NO. 7 WATER BY-PASS HOSE

Click here

43. TEMPORARILY INSTALL FUEL PUMP ASSEMBLY (for High Pressure)

Click here

44. TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

Click here

45. INSTALL FUEL PUMP ASSEMBLY (for High Pressure)

Click here

46. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

Click here

47. CONNECT FUEL TUBE SUB-ASSEMBLY

Click here

48. INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET

Click here

49. INSTALL INTAKE MANIFOLD

Click here

50. INSTALL NO. 2 WATER BY-PASS PIPE

Click here

51. INSTALL NO. 3 WATER BY-PASS PIPE

Click here

52. INSTALL EGR VALVE ASSEMBLY

Click here

53. INSTALL NO. 4 WATER BY-PASS HOSE

Click here

54. INSTALL NO. 1 EGR PIPE SUB-ASSEMBLY

Click here

55. INSTALL EGR COOLER ASSEMBLY

Click here

56. INSTALL THROTTLE BODY GASKET

Click here

57. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

Click here

58. INSTALL EXHAUST MANIFOLD (TWC: Front Catalyst)

Click here

59. INSTALL MANIFOLD STAY

Click here

60. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

Click here

61. INSTALL FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

Click here

62. INSTALL NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

Click here

63. INSTALL COMPRESSOR WITH MOTOR ASSEMBLY

Click here

64. INSTALL ENGINE HANGERS

Click here

65. REMOVE ENGINE ASSEMBLY FROM ENGINE STAND

Click here
