Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.

Torque:

6.0 N·m {61 kgf·cm, 53 in·lbf}

(b) Connect the transmission control cable assembly to the vehicle body with the 2 nuts.

Torque:

6.0 N·m {61 kgf·cm, 53 in·lbf}

(c) Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

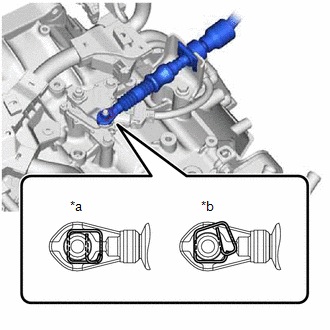

(d) Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.

NOTICE:

Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

*a

Correct

*b

Incorrect

2. INSTALL NO. 1 CONSOLE BOX DUCT

(a) Install the No. 1 console box duct.

3. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

Click here

4. INSTALL FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

(a) Install the front lower No. 1 floor heat insulator to the vehicle body with the 2 nuts.

Torque:

4.9 N·m {50 kgf·cm, 43 in·lbf}

5. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Click here

6. INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click here

7. INSTALL ECM

Click here

8. INSTALL BATTERY

Click here

9. INSPECT SHIFT LEVER POSITION

Click here

10. ADJUST SHIFT LEVER POSITION

Click here
