Lexus ES (XZ10) Service Manual / Drivetrain / Ub80f (automatic Transmission / Transaxle) / Valve Body Assembly / Disassembly

DISASSEMBLY

PROCEDURE

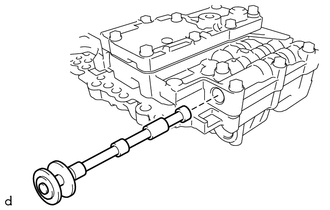

1. REMOVE MANUAL VALVE

(a) Remove the manual valve from the transmission valve body assembly.

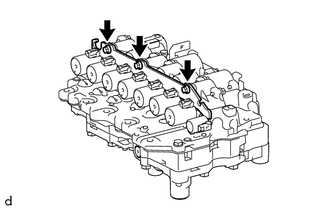

2. REMOVE SOLENOID LOCK PLATE

(a) Remove the 3 bolts and solenoid lock plate from the transmission valve body assembly.

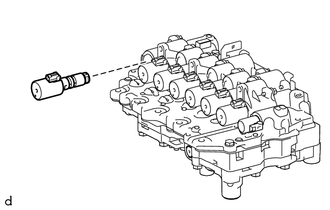

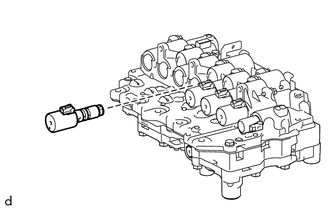

3. REMOVE SOLENOID (SLU) VALVE

(a) Remove the solenoid (SLU) valve from the transmission valve body assembly.

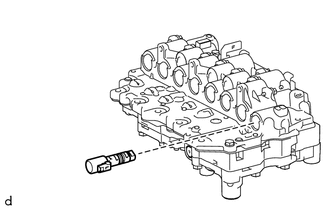

4. REMOVE SOLENOID (SL5) VALVE

(a) Remove the solenoid (SL5) valve from the transmission valve body assembly.

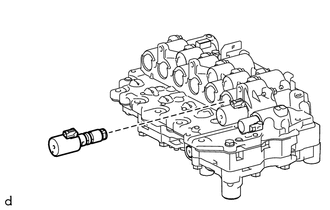

5. REMOVE SOLENOID (SL6) VALVE

(a) Remove the solenoid (SL6) valve from the transmission valve body assembly.

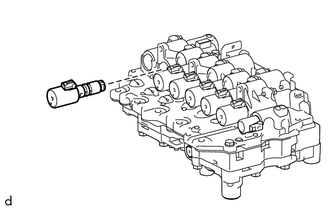

6. REMOVE SOLENOID (SL4) VALVE

(a) Remove the solenoid (SL4) valve from the transmission valve body assembly.

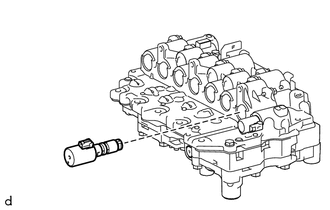

7. REMOVE SOLENOID (SL3) VALVE

(a) Remove the solenoid (SL3) valve from the transmission valve body assembly.

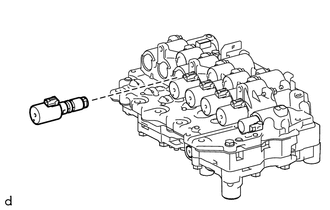

8. REMOVE SOLENOID (SL1) VALVE

(a) Remove the solenoid (SL1) valve from the transmission valve body assembly.

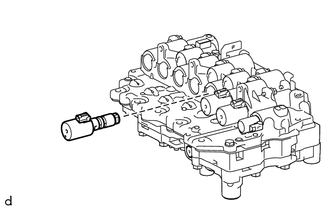

9. REMOVE SOLENOID (SL2) VALVE

(a) Remove the solenoid (SL2) valve from the transmission valve body assembly.

10. REMOVE SOLENOID (SLT) VALVE

(a) Remove the solenoid (SLT) valve from the transmission valve body assembly.

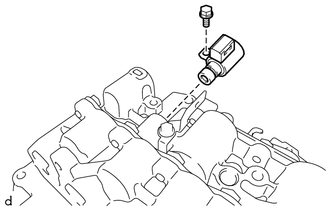

11. REMOVE SOLENOID (SL) VALVE

(a) Remove the bolt and solenoid (SL) valve from the transmission valve body assembly.
