Lexus ES (XZ10) Service Manual / Drivetrain / Ua80e (automatic Transmission / Transaxle) / Shift Paddle Switch / Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 SWITCH WIRE

HINT:

Perform this procedure only when replacement of the No. 1 switch wire is necessary.

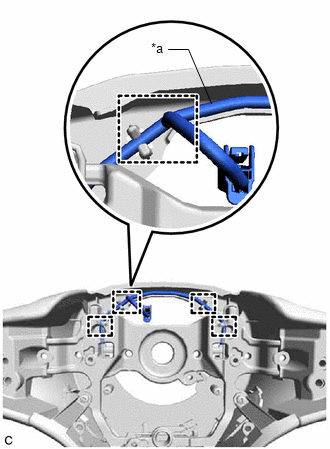

(a) Engage the 4 guides to install the No. 1 switch wire to the steering wheel assembly.

NOTICE:

Make sure that the junction of the No. 1 switch wire is the right of the guide as shown in the illustration.

*a

No. 1 Switch Wire

2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

(a) Connect the 2 shift paddle switch (transmission shift switch assembly) connectors to install the 2 shift paddle switches (transmission shift switch assemblies) to the No. 1 switch wire.

(b) Engage the 2 clamps.

(c) Engage the 4 claws to install the 2 shift paddle switches (transmission shift switch assemblies) to the steering wheel assembly.

(d) Install 2 new screws.

Torque:

1.7 N·m {17 kgf·cm, 15 in·lbf}

3. INSTALL STEERING PAD SWITCH ASSEMBLY

Click here

4. INSTALL STEERING WHEEL ASSEMBLY

Click here
