Lexus ES: Inspection

INSPECTION

PROCEDURE

1. INSPECT LUGGAGE DOOR OPENING SWITCH (TRUNK AND FUEL SWITCH ASSEMBLY)

(a) Check the switch.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

4 (B) - 3 (L)

Pressed (On)

Below 25 Ω

4 (B) - 3 (L)

Not pressed (Off)

1 MΩ or higher

If the result is not as specified, replace the luggage door opening switch (trunk and fuel switch assembly).

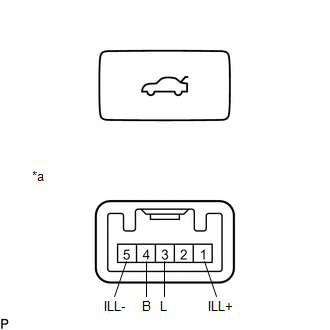

*a

Component without harness connected

(Luggage Door Opening Switch (Trunk and Fuel Switch Assembly))

(b) Check the switch illumination.

(1) Apply auxiliary battery voltage to the switch connector and check that the luggage compartment door opening switch assembly illuminates.

OK:

Auxiliary Battery Connection

Specified Condition

Auxiliary battery positive (+) → Terminal 1 (ILL+)

Auxiliary battery negative (-) → Terminal 5 (ILL-)

Illumination illuminates

If the result is not as specified, replace the luggage door opening switch (trunk and fuel switch assembly).
