DESCRIPTION

When the engine switch is turned on (IG), the IG power source circuit supplies positive (+) voltage to the multiplex tilt and telescopic ECU.

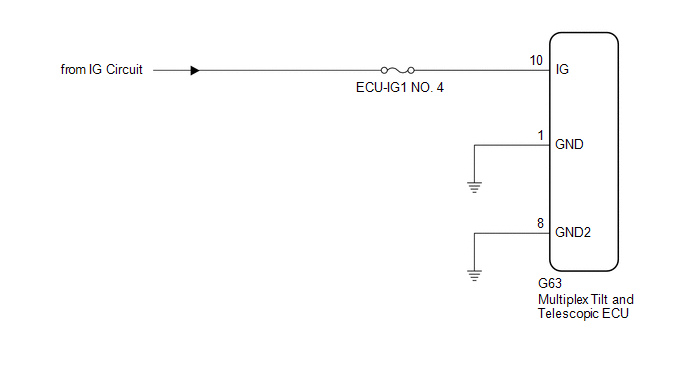

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY)

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

*a

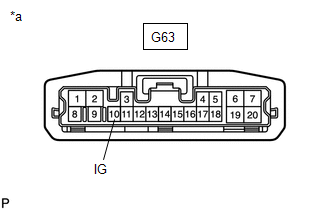

Front view of wire harness connector

(to Multiplex Tilt and Telescopic ECU)

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G63-10 (IG) - Body ground

Engine switch on (IG)

11 to 14 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

2.

CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Disconnect the G63 multiplex tilt and telescopic ECU connector.

*a

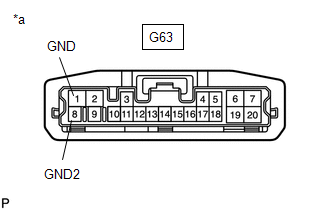

Front view of wire harness connector

(to Multiplex Tilt and Telescopic ECU)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G63-1 (GND) - Body ground

Always

Below 1 Ω

G63-8 (GND2) - Body ground

Always

Below 1 Ω
OK

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
