DESCRIPTION
Refer to the description for DTC P0ABF11.
Click here
DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Warning Indicate |
---|---|---|---|---|---|
P0ABF2A | Hybrid/EV Battery Current Sensor "A" Signal Stuck In Range | The battery current sensor output is stuck even when battery voltage change. (1 trip detection logic) |
| Comes on | Master Warning Light: Comes on |
DTC No. | Data List |
---|---|
P0ABF2A | Hybrid Battery Current for Hybrid Battery Control*1 |
HINT:
*1: The value of "Hybrid Battery Current for Hybrid Battery Control" usually changes by 4 A or more while the vehicle is accelerating and decelerating.
MONITOR DESCRIPTION
If the battery voltage sensor detects a malfunction in the battery current sensor, the hybrid vehicle control ECU will illuminate the MIL and store a DTC.
MONITOR STRATEGY
Related DTCs | P0AC0 (INF P0ABF2A): Current sensor malfunction |
Required sensors/components | Battery current sensor |
Frequency of operation | Continuous |
Duration | TMC's intellectual property |
MIL operation | 1 driving cycle |
Sequence of operation | None |
TYPICAL ENABLING CONDITIONS
The monitor will run whenever the following DTCs are not stored | TMC's intellectual property |
Other conditions belong to TMC's intellectual property | - |
TYPICAL MALFUNCTION THRESHOLDS
TMC's intellectual property | - |
COMPONENT OPERATING RANGE
Battery voltage sensor | DTC P0AC0 (INF P0ABF2A) is not detected |
CONFIRMATION DRIVING PATTERN
HINT:
Click here
Click here
HINT:
[*1]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
HINT:
PROCEDURE
1. | CHECK DTC OUTPUT (HYBRID CONTROL) |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
(d) Check and record any HV system DTCs and freeze frame data.
Powertrain > Hybrid Control > Trouble Codes Result | Proceed to |
---|---|
Only DTC P0ABF2A is output or DTC P0ABF2A and DTCs other than those in the following table are output. | A |
DTC P0ABF2A and any of the DTCs in the following table are output at the same time. | B |
Relevant DTC | |
---|---|
P0A9563 | High Voltage Fuse Accumulated Load History |
P0ABF11 | Hybrid/EV Battery Current Sensor "A" Circuit Short to Ground |
P0ABF15 | Hybrid/EV Battery Current Sensor "A" Circuit Short to Auxiliary Battery or Open |
P0AFC00 | Hybrid/EV Battery Sensor Module |
P0AFC96 | Hybrid/EV Battery Sensor Module Component Internal Failure |
P1CBB12 | Hybrid/EV Battery Current Sensor Power Supply Circuit Short to Auxiliary Battery |
P1CBB14 | Hybrid/EV Battery Current Sensor Power Supply Circuit Short to Ground or Open |
P308A12 | Hybrid/EV Battery Voltage Sensor All Circuit Short to Auxiliary Battery |
P0B3B14, P0B4014, P0B4514, P0B4A14, P0B4F14, P0B5414, P0B5914, P0B5E14, P0B6314, P0B6814, P0B6D14, P0B7214 | Hybrid/EV Battery Voltage Sensor "A - L" Circuit Short to Ground or Open |
(e) Turn the power switch off.
B | GO TO DTC CHART (HYBRID CONTROL SYSTEM) |
|
2. | READ VALUE USING TECHSTREAM |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
NOTICE:
Do not turn the power switch on (READY).
(c) Enter the following menus: Powertrain / Hybrid Control / Data List / Hybrid Battery Block 1 to 11 Voltage.
NOTICE:
Select "Hybrid Battery Block 1 to 11 Voltage" only. (Do not select any other Data List items.)
Powertrain > Hybrid Control > Data List Tester Display |
---|
Hybrid Battery Block 1 Voltage |
Hybrid Battery Block 2 Voltage |
Hybrid Battery Block 3 Voltage |
Hybrid Battery Block 4 Voltage |
Hybrid Battery Block 5 Voltage |
Hybrid Battery Block 6 Voltage |
Hybrid Battery Block 7 Voltage |
Hybrid Battery Block 8 Voltage |
Hybrid Battery Block 9 Voltage |
Hybrid Battery Block 10 Voltage |
Hybrid Battery Block 11 Voltage |
(d) Check the voltage of each HV battery block voltage of "Hybrid Battery Block 1 to 11 Voltage" in the Data List with the power switch on (IG).
Specified Condition:

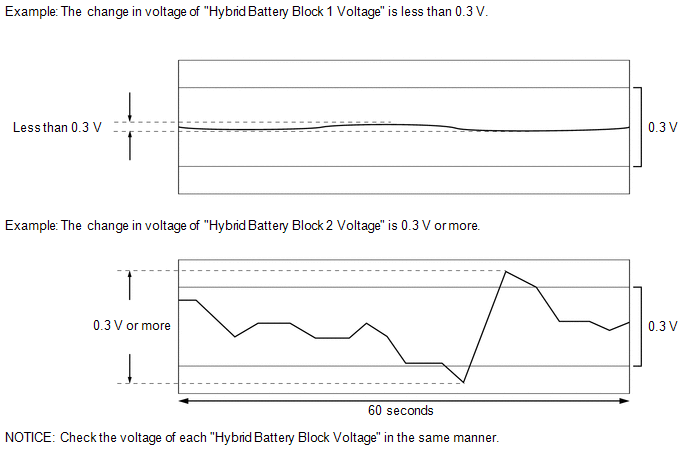

Any "Hybrid Battery Block Voltage" changes by 0.3 V or more, 60 seconds after the power switch is turned on (IG). (The difference between the maximum and minimum voltage is 0.3 V or more.)
Result | Proceed to |
---|---|
The change in voltage of any "Hybrid Battery Block Voltage" is 0.3 V or more. | A |
Other than above | B |
(e) Turn the power switch off.
A | REPLACE BATTERY VOLTAGE SENSOR |
B | REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY |
