Lexus ES: Ecm

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 2 ECM BRACKET

(a) Install the No. 2 ECM bracket to the ECM with the 2 screws.

Torque:

4.5 N·m {46 kgf·cm, 40 in·lbf}

2. INSTALL NO. 1 ECM BRACKET

(a) Install the No. 1 ECM bracket to the ECM with the 2 screws.

Torque:

4.5 N·m {46 kgf·cm, 40 in·lbf}

3. INSTALL ECM

(a) Install the ECM with the 2 bolts and nut.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

NOTICE:

If the ECM has been struck or dropped, replace it.

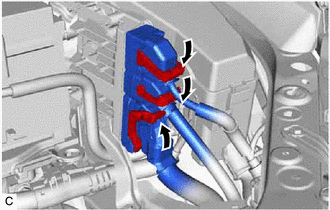

(b) Connect the 3 ECM connectors and rotate the 3 levers to lock them.

NOTICE:

  • When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
  • Be sure to securely connect the ECM connectors.

4. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click here

5. INSTALL INLET AIR CLEANER ASSEMBLY

Click here

6. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

Click here

7. INSTALL COOL AIR INTAKE DUCT SEAL

Click here

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click here

9. PERFORM INITIALIZATION

Click here
