DTC COMBINATION TABLE
HOW TO INTERPRET COMMUNICATION DTCS (DTCS THAT START WITH U)
(a) If a CAN communication error cannot be reproduced, determine the suspected malfunctioning part using the DTCs stored in ECUs that are connected to the CAN buses by following the procedure below.
HINT:
Communication DTCs (DTCs that start with U) indicate a communication error between the ECU that stores the DTC and the ECU that is indicated by the DTC.

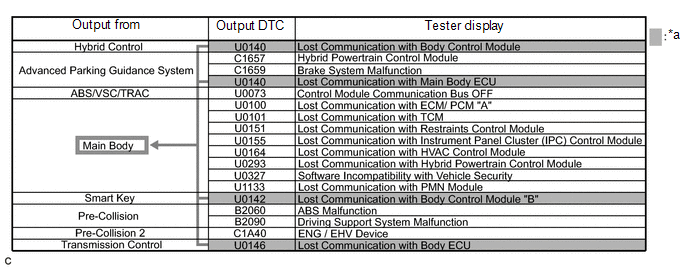

(1) If multiple ECUs store a communication DTC for a particular ECU, a communication stop of the ECU is suspected.
.png)
| *a | Items to be Checked | - | - |
NOTICE:
- This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
-
Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC. (Regarding output DTCs, refer to DTC Table by ECU.)
Click here
.gif)
HINT:
As multiple ECUs indicate a communication stop with the main body ECU, the possibility of a communication stop of the main body ECU is high.

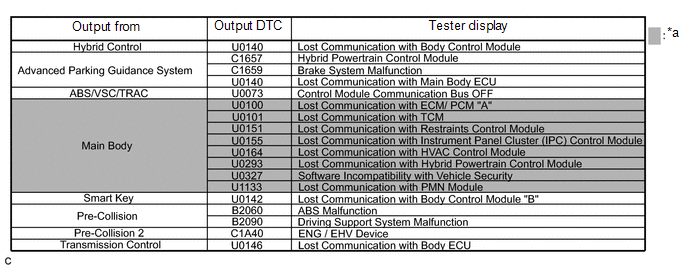

(2) If almost all of the communication DTCs of an ECU are stored, a communication stop of the ECU is suspected.
.png)
| *a | Items to be Checked | - | - |
NOTICE:
- This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
-
Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC. (Regarding output DTCs, refer to DTC Table by ECU.)
Click here
HINT:
- If almost all of the DTCs of the main body ECU are stored, the possibility of a communication stop of the main body ECU is high.
- When a CAN communication error occurs, many DTCs are output. DTCs other than communication error DTCs (such as DTCs that start with C or B) and communication DTCs for the ABS system are important DTCs, however it may be easier to determine the malfunctioning part by examining the overall situation without considering these DTCs.

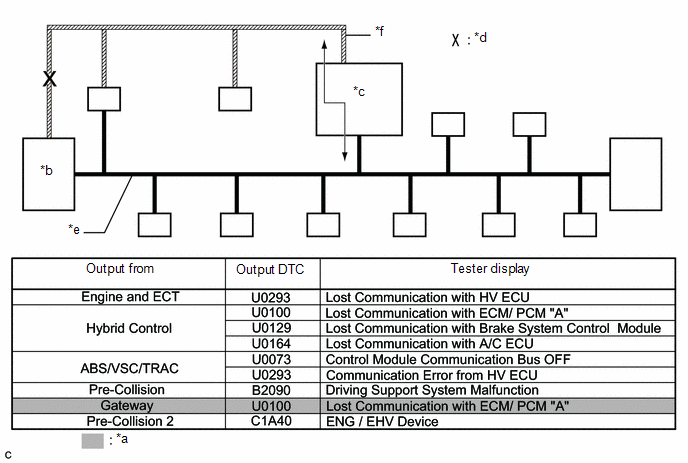

(b) To help determine the part of the sub bus that has a communication error, prioritize the communication stop DTCs stored in the gateway function equipped ECU.
.png)
| *a | Items to be Checked | *b | ECM |
| *c | Gateway function equipped ECU | *d | Location of malfunction |
| *e | Central bus | *f | Sub bus |
NOTICE:
This DTC table is from another model, and is only used here to show the ECUs connected to both a central bus and a sub bus. It shows DTCs output when there is an open in the main bus lines for the ECM on the sub bus. This table does not show DTCs applicable to this vehicle.
HINT:
- As gateway function equipped ECUs (sub bus monitor ECU) monitor signals from all ECUs that are connected to sub buses, gateway function equipped ECUs can detect ECUs with a communication stop more accurately.
- When there is a communication stop for the gateway function equipped ECU (gateway), communication with ECUs connected to other buses such as the central bus stops. Therefore, communication DTCs for ECUs connected to other buses are also stored.
(c) When any of the following malfunctions occurs, many DTCs are likely to be output from many ECUs. Because of this, it may be difficult to determine the probable malfunctioning part.
- Short between CAN lines (CANH and CANL)
- Short between a CAN line (CANH or CANL) and ground
- Short between a CAN line (CANH or CANL) and +B
- Open in a CAN branch line (CANH or CANL) of an ECU or sensor
- Open in a CAN main bus line (CANH or CANL) between 2 ECUs that have a terminating resistor
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 1, PAST COMMUNICATION ERROR)
(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 1 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
- ○: DTC is output.
- -: DTC is not output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U007488 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
- If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| Open in CAN branch line(s) | |||||
| Output ECU | Output DTC | Clearance Warning ECU Communication Stop Mode | Front Camera Module Communication Stop Mode | Millimeter Wave Radar Sensor Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | ○ | - | - | |
| U0124 | ○ | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| U0164 | ○ | - | - | ||
| U0265 | ○ | - | - | ||
| Forward Recognition Camera | U010087 | - | ○ | - | |
| U012587 | - | ○ | - | ||
| U012687 | - | ○ | - | ||
| U012987 | - | ○ | - | ||
| U013187 | - | ○ | - | ||
| U014087 | - | ○ | - | ||
| U015587 | - | ○ | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | ○ | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Bus 1 | Rear Television Camera Assembly | U0100 | - | - | - |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | ○ | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | ○ | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | ○ | - | ||
| Bus 4 | Brake Actuator Assembly*2 | U010087 | - | - | - |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | ○ | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Bus 5 | Meter Mirror Sub-assembly | U010087 | - | - | - |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | ○ | - | ||
| U111087 | ○ | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Combination Meter Assembly | U010087 | - | - | - | |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | ○ | - | ||
| U110687 | - | - | - | ||
| U111087 | ○ | - | - | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| Open in CAN branch line(s) | |||||
| Output ECU | Output DTC | Parking Assist ECU Communication Stop Mode | Blind Spot Monitor Sensor Communication Stop Mode | Rear Television Camera Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | ○ | ||
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | ○ | - | - | |
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0163 | ○ | - | - | ||
| U0233 | ○ | ○ | - | ||
| U0265 | ○ | - | ○ | ||
| U1110 | ○ | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | ○ | - | |
| U0125 | - | ○ | - | ||
| U0126 | - | ○ | - | ||
| U0129 | - | ○ | - | ||
| U0142 | - | ○ | - | ||
| Bus 1 | Rear Television Camera Assembly | U0100 | - | - | ○ |
| U0126 | - | - | ○ | ||
| U0129 | - | - | ○ | ||
| U0140 | - | - | ○ | ||
| U0163 | - | - | ○ | ||
| U0233 | - | ○ | ○ | ||
| U023B | ○ | - | ○ | ||
| U1110 | - | - | ○ | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | ○ | - | - | ||
| U0265 | - | - | ○ | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Bus 4 | Brake Actuator Assembly*2 | U010087 | - | - | - |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Bus 5 | Meter Mirror Sub-assembly | U010087 | - | - | - |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Combination Meter Assembly | U010087 | - | - | - | |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | ○ | - | ||
| U023A87 | - | - | - | ||
| U110687 | - | - | - | ||
| U111087 | - | - | - | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| Open in CAN main bus line(s) | |||||
| Output ECU | Output DTC | Central Gateway ECU (Network Gateway ECU) | No. 1 CAN Junction Connector to No. 6 CAN Junction Connector | No. 6 CAN Junction Connector to Junction Terminal | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | ○ | - | - | |
| U0124 | ○ | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| U0164 | ○ | - | - | ||
| U0265 | - | ○ | - | ||
| Forward Recognition Camera | U010087 | ○ | - | - | |
| U012587 | ○ | - | - | ||
| U012687 | ○ | - | - | ||
| U012987 | ○ | - | - | ||
| U013187 | ○ | - | - | ||
| U014087 | ○ | - | - | ||
| U015587 | ○ | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | ○ | - | - | |
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0163 | ○ | - | - | ||
| U0233 | - | ○ | - | ||
| U0265 | - | ○ | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | ○ | ○ | - | |
| U0125 | ○ | ○ | - | ||
| U0126 | ○ | ○ | - | ||
| U0129 | ○ | ○ | - | ||
| U0142 | ○ | ○ | - | ||
| Rear Television Camera Assembly | U0100 | ○ | ○ | - | |
| U0126 | ○ | ○ | - | ||
| U0129 | ○ | ○ | - | ||
| U0140 | ○ | ○ | - | ||
| U0163 | ○ | ○ | - | ||
| U0233 | - | - | - | ||
| U023B | - | ○ | - | ||
| U1110 | - | ○ | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Bus 3 | Radio Receiver Assembly*1 | U0129 | - | - | - |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | ○ | - | - | ||
| U0265 | ○ | ○ | - | ||
| U1110 | ○ | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | ○ | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Bus 5 | Position Control ECU Assembly LH | - | - | - | - |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | ○ | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | ○ | - | - | ||
| U111087 | ○ | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | ○ | ○ | - | ||
| U023A87 | ○ | - | - | ||
| U110687 | - | - | - | ||
| U111087 | ○ | - | - | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| CAN bus lines short circuit or short to GND | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | ○ | ○ | ○ | |
| U0124 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| Forward Recognition Camera | U010087 | ○ | ○ | ○ | |
| U012587 | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | ○ | ||
| U012987 | ○ | ○ | ○ | ||
| U013187 | ○ | ○ | ○ | ||
| U014087 | ○ | ○ | ○ | ||
| U015587 | ○ | ○ | ○ | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Bus 1 | Parking Assist ECU*1 | U0100 | ○ | ○ | ○ |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| Blind Spot Monitor Sensor RH | U0100 | ○ | ○ | ○ | |
| U0125 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| Rear Television Camera Assembly | U0100 | ○ | ○ | ○ | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | ○ | ○ | ○ | ||
| U023B | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Bus 4 | Absorber Control ECU*1 | U0100 | - | - | - |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | ○ | ○ | ○ | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | ○ | ○ | ○ | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | ○ | ○ | ○ | ||
| U111087 | ○ | ○ | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | ○ | ○ | ○ | ||
| U023A87 | ○ | ○ | ○ | ||
| U110687 | - | - | - | ||
| U111087 | ○ | ○ | ○ | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 2, PAST COMMUNICATION ERROR)
(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 2 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
- ○: DTC is output.
- -: DTC is not output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U007488 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
- If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| Open in CAN main bus line(s) | |||||
| Output ECU | Output DTC | Central Gateway ECU (Network Gateway ECU) | No. 4 CAN Junction Connector to No. 2 Junction Connector | ECM Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | ○ | ○ | ○ | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | ○ | ○ | ○ | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | ○ | ○ | ○ | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 1 | Blind Spot Monitor Sensor RH | U0100 | ○ | ○ | ○ |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Rear Television Camera Assembly | U0100 | ○ | ○ | ○ | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | ○ | ○ | ○ | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Absorber Control ECU*1 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Bus 4 | Rack and Pinion Power Steering Gear Assembly | U0100 | ○ | ○ | ○ |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | ○ | ○ | ○ | |
| U010187 | ○ | ○ | ○ | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | ○ | ○ | ○ | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | ○ | ○ | ○ | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Bus 5 | Meter Mirror Sub-assembly | U010087 | ○ | ○ | ○ |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | ○ | ○ | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | ○ | ○ | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Combination Meter Assembly | U010087 | ○ | ○ | ○ | |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | - | - | ||
| U110687 | - | - | - | ||
| U111087 | - | - | - | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| CAN bus lines short circuit or short to GND | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | ○ | ○ | ○ | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | ○ | ○ | ○ | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | ○ | ○ | ○ | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | ○ | ○ | ○ | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Rear Television Camera Assembly | U0100 | ○ | ○ | ○ | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | ○ | ○ | ○ | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Bus 3 | Radio Receiver Assembly*1 | U0129 | - | - | - |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Absorber Control ECU*1 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | ○ | ○ | ○ | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | ○ | ○ | ○ | |
| U010187 | ○ | ○ | ○ | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | ○ | ○ | ○ | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Bus 5 | Position Control ECU Assembly LH | - | - | - | - |
| Air Conditioning Amplifier Assembly | U0100 | ○ | ○ | ○ | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Meter Mirror Sub-assembly | U010087 | ○ | ○ | ○ | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | ○ | ○ | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | ○ | ○ | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | ○ | ○ | ○ |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | - | - | ||
| U110687 | - | - | - | ||
| U111087 | - | - | - | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 3, PAST COMMUNICATION ERROR)
(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 3 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
- ○: DTC is output.
- -: DTC is not output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U007488 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
- If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.
| - | Trouble Mode | |||||
|---|---|---|---|---|---|---|
| Open in CAN branch line(s) | ||||||
| Output ECU | Output DTC | Active Noise Control ECU Communication Stop Mode | Radio Receiver Assembly Communication Stop Mode | DCM Communication Stop Mode | Bus Buffer ECU Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | - | |
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Bus 1 | Parking Assist ECU*1 | U0100 | - | - | - | - |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | ○ | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | - | |
| U0125 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | ○ | - | - | ||
| U0233 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| ECM | - | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | ○ | - | - | - | |
| U012987 | ○ | - | - | - | ||
| U014087 | ○ | - | - | - | ||
| U016487 | ○ | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | ○ | - | - | |
| U0140 | - | ○ | - | - | ||
| U0155 | - | ○ | - | - | ||
| U0164 | - | ○ | - | - | ||
| U0198 | - | ○ | ○ | - | ||
| U023B | - | ○ | - | - | ||
| U0265 | - | ○ | - | - | ||
| U1110 | - | ○ | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | ○ | - | |
| U015587 | - | - | ○ | - | ||
| U016387 | - | ○ | ○ | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| Bus 4 | Absorber Control ECU*1 | U0100 | - | - | - | - |
| U0101 | - | - | - | - | ||
| U0122 | - | - | - | - | ||
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | - | |
| Steering Sensor | - | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | - | |
| U010187 | - | - | - | - | ||
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015187 | - | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | - | |
| U0122 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1117 | - | - | - | ○ | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | - | |
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | - | ○ | - | - | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | - |
| U0101 | - | - | - | - | ||
| U0120 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | - | ○ | - | - | ||
| U0164 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U0199 | - | - | - | - | ||
| U0200 | - | - | - | - | ||
| U0208 | - | - | - | - | ||
| U0230 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1106 | - | - | - | - | ||
| U1115 | - | - | - | - | ||
| U1117 | - | - | - | ○ | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | - | |
| U012987 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| U016387 | - | ○ | - | - | ||
| U016487 | - | - | - | - | ||
| U023A87 | - | - | - | - | ||
| U111087 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0242 | - | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - | - |
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U013287 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015187 | - | - | - | - | ||
| U016387 | - | ○ | - | - | ||
| U016487 | - | ○ | - | - | ||
| U016887 | - | ○ | - | - | ||
| U018287 | - | - | - | - | ||
| U023087 | - | - | - | - | ||
| U023387 | - | - | - | - | ||
| U023A87 | - | - | - | - | ||
| U110687 | - | - | - | - | ||
| U111087 | - | - | - | - | ||
| U111287 | - | - | - | - | ||
| U111787 | - | - | - | ○ | ||
| U113387 | - | ○ | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U020887 | - | - | - | - | ||
| - | Trouble Mode | |||
|---|---|---|---|---|
| Open in CAN main bus line(s) | ||||
| Output ECU | Output DTC | Central Gateway ECU (Network Gateway ECU) (CA3H and CA3L Terminal) | Central Gateway ECU (Network Gateway ECU) (CAYH and CAYL Terminal) | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - |
| Bus 1 | Clearance Warning ECU Assembly*1 | U0100 | - | - |
| U0124 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0155 | - | - | ||
| U0164 | - | - | ||
| U0265 | - | - | ||
| Forward Recognition Camera | U010087 | - | - | |
| U012587 | - | - | ||
| U012687 | - | - | ||
| U012987 | - | - | ||
| U013187 | - | - | ||
| U014087 | - | - | ||
| U015587 | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0163 | ○ | - | ||
| U0233 | - | - | ||
| U0265 | - | - | ||
| U1110 | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | |
| U0125 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0142 | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0163 | ○ | - | ||
| U0233 | - | - | ||
| U023B | - | - | ||
| U1110 | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - |
| ECM | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | ○ | - | |
| U012987 | ○ | - | ||
| U014087 | ○ | - | ||
| U016487 | ○ | - | ||
| Bus 3 | Radio Receiver Assembly*1 | U0129 | ○ | - |
| U0140 | ○ | - | ||
| U0155 | ○ | - | ||
| U0164 | ○ | - | ||
| U0198 | - | - | ||
| U023B | ○ | - | ||
| U0265 | ○ | - | ||
| U1110 | ○ | - | ||
| DCM (Telematics Transceiver) | U014087 | ○ | - | |
| U015587 | ○ | - | ||
| U016387 | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - |
| Occupant Detection ECU | U0125 | - | - | |
| U0129 | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | |
| U0101 | - | - | ||
| U0122 | - | - | ||
| U0124 | - | - | ||
| U0126 | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | |
| Steering Sensor | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | |
| U0129 | - | - | ||
| U023A | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | |
| U010187 | - | - | ||
| U012587 | - | - | ||
| U012687 | - | - | ||
| U014087 | - | - | ||
| U015187 | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | |
| U0142 | - | - | ||
| U0182 | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | |
| U0122 | - | - | ||
| U0142 | - | - | ||
| U0155 | - | - | ||
| U0327 | - | - | ||
| U1117 | ○ | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | |
| Position Control ECU Assembly LH | - | - | - | |
| Bus 5 | Air Conditioning Amplifier Assembly | U0100 | - | - |
| U0131 | - | - | ||
| U0142 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0163 | ○ | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | |
| U0101 | - | - | ||
| U0120 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0163 | ○ | - | ||
| U0164 | - | - | ||
| U0182 | - | - | ||
| U0199 | - | - | ||
| U0200 | - | - | ||
| U0208 | - | - | ||
| U0230 | - | - | ||
| U023A | - | - | ||
| U0327 | - | - | ||
| U1106 | - | - | ||
| U1115 | - | - | ||
| U1117 | ○ | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | |
| U012987 | - | - | ||
| U014087 | - | - | ||
| U015587 | - | - | ||
| U016387 | ○ | - | ||
| U016487 | - | - | ||
| U023A87 | - | - | ||
| U111087 | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | |
| U0142 | - | - | ||
| U0155 | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | |
| U0140 | - | - | ||
| U0155 | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | |
| U0101 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0142 | - | - | ||
| U0155 | - | - | ||
| U0242 | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - |
| U012687 | - | - | ||
| U012987 | - | - | ||
| U013187 | - | - | ||
| U013287 | - | - | ||
| U014087 | - | - | ||
| U015187 | - | - | ||
| U016387 | ○ | - | ||
| U016487 | - | - | ||
| U016887 | - | - | ||
| U018287 | - | - | ||
| U023087 | - | - | ||
| U023387 | - | - | ||
| U023A87 | - | - | ||
| U110687 | - | - | ||
| U111087 | - | - | ||
| U111287 | - | - | ||
| U111787 | ○ | - | ||
| U113387 | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | |
| U015587 | - | - | ||
| U020887 | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| CAN bus lines short circuit or short to GND | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Bus 1 | Parking Assist ECU*1 | U0100 | - | - | - |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | ○ | ○ | ○ | |
| U012987 | ○ | ○ | ○ | ||
| U014087 | ○ | ○ | ○ | ||
| U016487 | ○ | ○ | ○ | ||
| Radio Receiver Assembly*1 | U0129 | ○ | ○ | ○ | |
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0198 | ○ | ○ | ○ | ||
| U023B | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| DCM (Telematics Transceiver) | U014087 | ○ | ○ | ○ | |
| U015587 | ○ | ○ | ○ | ||
| U016387 | ○ | ○ | ○ | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Bus 4 | Absorber Control ECU*1 | U0100 | - | - | - |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | ○ | ○ | ○ | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | ○ | ○ | ○ | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | ○ | ○ | ○ | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | ○ | ○ | ○ | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | - | - | ||
| U110687 | - | - | - | ||
| U111087 | - | - | - | ||
| U111287 | - | - | - | ||
| U111787 | ○ | ○ | ○ | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 4, PAST COMMUNICATION ERROR)
(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 4 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
- ○: DTC is output.
- -: DTC is not output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U007488 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
- If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| Open in CAN branch line(s) | |||||
| Output ECU | Output DTC | Restraints Occupant Classification System Module Communication Stop Mode | Suspension Control ECU Communication Stop Mode | Tire Pressure Monitor ECU Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 1 | Blind Spot Monitor Sensor RH | U0100 | - | - | - |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | ○ | - | - | |
| U0129 | ○ | - | - | ||
| Absorber Control ECU*1 | U0100 | - | ○ | - | |
| U0101 | - | ○ | - | ||
| U0122 | - | ○ | - | ||
| U0124 | - | ○ | - | ||
| U0126 | - | ○ | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | ○ | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | ○ | - | - | |
| Bus 4 | Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Bus 5 | Meter Mirror Sub-assembly | U010087 | - | - | - |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Combination Meter Assembly | U010087 | - | - | - | |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | ○ | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | - | - | ||
| U110687 | - | - | - | ||
| U111087 | - | - | - | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| Open in CAN branch line(s) | |||||
| Output ECU | Output DTC | Steering Angle Sensor Communication Stop Mode | Power Steering ECU Communication Stop Mode | Skid Control ECU Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | - | - | ○ | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | ○ | - | - | ||
| U012987 | - | - | ○ | ||
| U013187 | - | ○ | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | |
| U0126 | ○ | - | - | ||
| U0129 | - | - | ○ | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | - | - | ○ | ||
| U0142 | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | |
| U0126 | ○ | - | - | ||
| U0129 | - | - | ○ | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | ○ | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | ○ | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | ○ | ||
| Absorber Control ECU*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | ○ | ||
| U0124 | - | - | - | ||
| U0126 | ○ | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | ○ | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | ○ | - | |
| U0129 | - | ○ | ○ | ||
| U023A | - | ○ | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | ○ | |
| U010187 | - | - | ○ | ||
| U012587 | - | - | ○ | ||
| U012687 | ○ | - | ○ | ||
| U014087 | - | - | ○ | ||
| U015187 | - | - | ○ | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Bus 5 | Headlight ECU Sub-assembly RH*1 | U0126 | ○ | - | - |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | ○ | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | ○ | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | - | - | ○ | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | ○ | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | - | - | ○ | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Combination Meter Assembly | U010087 | - | - | - | |
| U012687 | ○ | - | - | ||
| U012987 | - | - | ○ | ||
| U013187 | - | ○ | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | - | - | ||
| U110687 | - | - | ○ | ||
| U111087 | - | - | - | ||
| U111287 | ○ | - | - | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
| - | Trouble Mode | |||||
|---|---|---|---|---|---|---|
| Open in CAN main bus line(s) | ||||||
| Output ECU | Output DTC | Central Gateway ECU (Network Gateway ECU) | No. 7 CAN Junction Connector to No. 4 CAN Junction Connector | No. 4 CAN Junction Connector to No. 2 CAN Junction Connector | Center Airbag Sensor Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Bus 1 | Clearance Warning ECU Assembly*1 | U0100 | - | - | - | - |
| U0124 | ○ | ○ | ○ | - | ||
| U0126 | ○ | ○ | - | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | ○ | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | - | - | ||
| U012987 | ○ | ○ | ○ | - | ||
| U013187 | ○ | ○ | ○ | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | - | |
| U0126 | ○ | ○ | - | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | - | |
| U0125 | ○ | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | - | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0142 | - | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | - | |
| U0126 | ○ | ○ | - | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| ECM | - | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Bus 3 | Stereo Component Equalizer Assembly | U010087 | - | - | - | - |
| U012987 | ○ | ○ | ○ | - | ||
| U014087 | - | - | - | - | ||
| U016487 | - | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | ○ | ○ | ○ | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0198 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Occupant Detection ECU | U0125 | - | ○ | ○ | ○ | |
| U0129 | - | ○ | ○ | - | ||
| Absorber Control ECU*1 | U0100 | ○ | - | - | - | |
| U0101 | ○ | - | - | - | ||
| U0122 | - | ○ | ○ | - | ||
| U0124 | - | ○ | ○ | ○ | ||
| U0126 | - | ○ | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | ○ | ○ | - | |
| Steering Sensor | - | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | ○ | ○ | ○ | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | ○ | ○ | ○ | - | |
| U0129 | - | - | - | - | ||
| U023A | ○ | ○ | ○ | - | ||
| Brake Actuator Assembly*2 | U010087 | ○ | ○ | ○ | - | |
| U010187 | ○ | ○ | ○ | - | ||
| U012587 | - | - | - | ○ | ||
| U012687 | - | - | ○ | - | ||
| U014087 | ○ | ○ | ○ | - | ||
| U015187 | - | - | - | ○ | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Bus 5 | Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | - |
| Headlight ECU Sub-assembly RH*1 | U0126 | ○ | ○ | - | - | |
| U0142 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | - | |
| U0122 | ○ | ○ | ○ | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1117 | - | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | - | |
| U0131 | ○ | ○ | ○ | - | ||
| U0142 | - | - | - | - | ||
| U0151 | ○ | ○ | ○ | ○ | ||
| U0155 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0120 | - | - | - | - | ||
| U0126 | ○ | ○ | - | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0151 | ○ | ○ | ○ | ○ | ||
| U0155 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U0199 | - | - | - | - | ||
| U0200 | - | - | - | - | ||
| U0208 | - | - | - | - | ||
| U0230 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1106 | ○ | ○ | ○ | - | ||
| U1115 | - | - | - | - | ||
| U1117 | - | - | - | - | ||
| Bus 5 | Meter Mirror Sub-assembly | U010087 | - | - | - | - |
| U012987 | ○ | ○ | ○ | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| U016487 | - | - | - | - | ||
| U023A87 | - | - | - | - | ||
| U111087 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0126 | ○ | ○ | - | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0242 | - | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - | - |
| U012687 | ○ | ○ | - | - | ||
| U012987 | ○ | ○ | ○ | - | ||
| U013187 | ○ | ○ | ○ | - | ||
| U013287 | ○ | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015187 | ○ | ○ | ○ | ○ | ||
| U016387 | - | - | - | - | ||
| U016487 | - | - | - | - | ||
| U016887 | - | - | - | - | ||
| U018287 | - | - | - | - | ||
| U023087 | - | - | - | - | ||
| U023387 | - | - | - | - | ||
| U023A87 | - | - | - | - | ||
| U110687 | ○ | ○ | ○ | - | ||
| U111087 | - | - | - | - | ||
| U111287 | ○ | ○ | - | - | ||
| U111787 | ○ | ○ | - | - | ||
| U113387 | - | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U020887 | - | - | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| CAN bus lines short circuit or short to GND | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Bus 1 | Clearance Warning ECU Assembly*1 | U0100 | - | - | - |
| U0124 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | ○ | ||
| U012987 | ○ | ○ | ○ | ||
| U013187 | ○ | ○ | ○ | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | |
| U0125 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | ○ | ○ | ○ | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Bus 3 | Radio Receiver Assembly*1 | U0129 | ○ | ○ | ○ |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | ○ | ○ | ○ | |
| U0129 | ○ | ○ | ○ | ||
| Absorber Control ECU*1 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0122 | ○ | ○ | ○ | ||
| U0124 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| Tire Pressure Warning ECU and Receiver | U0129 | ○ | ○ | ○ | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | ○ | ○ | ○ | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | ○ | ○ | ○ | |
| U0129 | ○ | ○ | ○ | ||
| U023A | ○ | ○ | ○ | ||
| Brake Actuator Assembly*2 | U010087 | ○ | ○ | ○ | |
| U010187 | ○ | ○ | ○ | ||
| U012587 | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | ○ | ||
| U014087 | ○ | ○ | ○ | ||
| U015187 | ○ | ○ | ○ | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | ○ | ○ | ○ | |
| U0142 | - | - | - | ||
| U0182 | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Bus 5 | Position Control ECU Assembly LH | - | - | - | - |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | ○ | ○ | ○ | ||
| U1115 | - | - | - | ||
| U1117 | - | - | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | |
| U012987 | ○ | ○ | ○ | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0242 | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - |
| U012687 | ○ | ○ | ○ | ||
| U012987 | ○ | ○ | ○ | ||
| U013187 | ○ | ○ | ○ | ||
| U013287 | ○ | ○ | ○ | ||
| U014087 | - | - | - | ||
| U015187 | ○ | ○ | ○ | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | - | - | - | ||
| U018287 | - | - | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | - | - | ||
| U110687 | ○ | ○ | ○ | ||
| U111087 | - | - | - | ||
| U111287 | ○ | ○ | ○ | ||
| U111787 | - | - | - | ||
| U113387 | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | |
| U015587 | - | - | - | ||
| U020887 | - | - | - | ||
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 5, PAST COMMUNICATION ERROR)
(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 5 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
- ○: DTC is output.
- -: DTC is not output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U007488 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
- If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.
| - | Trouble Mode | |||||
|---|---|---|---|---|---|---|
| Open in CAN branch line(s) | ||||||
| Output ECU | Output DTC | Door Mirror ECU RH Communication Stop Mode | Headlight ECU RH Communication Stop Mode | Luggage Door ECU Communication Stop Mode | Door Mirror ECU LH Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | - | |
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Bus 1 | Parking Assist ECU*1 | U0100 | - | - | - | - |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | - | |
| U0125 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| ECM | - | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | - | |
| U012987 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U016487 | - | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0198 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| Bus 4 | Absorber Control ECU*1 | U0100 | - | - | - | - |
| U0101 | - | - | - | - | ||
| U0122 | - | - | - | - | ||
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | - | |
| Steering Sensor | - | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | - | |
| U010187 | - | - | - | - | ||
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015187 | - | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | ○ | - | - | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | ○ | - | - | |
| U0142 | - | ○ | - | - | ||
| U0182 | - | ○ | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | ○ | - | |
| U0122 | - | - | ○ | - | ||
| U0142 | - | - | ○ | - | ||
| U0155 | - | - | ○ | - | ||
| U0327 | - | - | ○ | - | ||
| U1117 | - | - | ○ | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | ○ | |
| Position Control ECU Assembly LH | - | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | - | |
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | - |
| U0101 | - | - | - | - | ||
| U0120 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U0199 | ○ | - | - | - | ||
| U0200 | - | - | - | ○ | ||
| U0208 | - | - | - | - | ||
| U0230 | - | - | ○ | - | ||
| U023A | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1106 | - | - | - | - | ||
| U1115 | - | - | - | - | ||
| U1117 | - | - | - | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | - | |
| U012987 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| U016487 | - | - | - | - | ||
| U023A87 | - | - | - | - | ||
| U111087 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0242 | - | ○ | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - | - |
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U013287 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015187 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| U016487 | - | - | - | - | ||
| U016887 | - | - | - | - | ||
| U018287 | - | - | - | - | ||
| U023087 | - | - | ○ | - | ||
| U023387 | - | - | - | - | ||
| U023A87 | - | - | - | - | ||
| U110687 | - | - | - | - | ||
| U111087 | - | - | - | - | ||
| U111287 | - | - | - | - | ||
| U111787 | - | - | - | - | ||
| U113387 | - | - | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U020887 | - | - | - | - | ||
| - | Trouble Mode | |||||
|---|---|---|---|---|---|---|
| Open in CAN branch line(s) | ||||||
| Output ECU | Output DTC | Driver Seat Control ECU Communication Stop Mode | Air Conditioning Amplifier Communication Stop Mode | Main Body ECU Communication Stop Mode | Headup Display Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | - | |
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | ○ | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | ○ | - | - | ||
| U0265 | - | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U014087 | - | - | ○ | - | ||
| U015587 | - | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | ○ | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | - | |
| U0125 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | ○ | - | ||
| Bus 1 | Rear Television Camera Assembly | U0100 | - | - | - | - |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | ○ | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| ECM | - | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | - | |
| U012987 | - | - | - | - | ||
| U014087 | - | - | ○ | - | ||
| U016487 | - | ○ | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | - | |
| U0140 | - | - | ○ | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | ○ | - | - | ||
| U0198 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | ○ | - | |
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0122 | - | - | - | - | ||
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | - | |
| Steering Sensor | - | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | - | |
| Bus 4 | Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | - |
| U0129 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | - | |
| U010187 | - | - | - | - | ||
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U014087 | - | - | ○ | - | ||
| U015187 | - | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | ○ | - | |
| Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - | - | |
| U0142 | - | - | ○ | - | ||
| U0182 | - | - | - | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | - | |
| U0122 | - | - | - | - | ||
| U0142 | - | - | ○ | - | ||
| U0155 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1117 | - | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | ○ | - | |
| Position Control ECU Assembly LH | - | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | ○ | - | - | |
| U0131 | - | ○ | - | - | ||
| U0142 | - | ○ | ○ | - | ||
| U0151 | - | ○ | - | - | ||
| U0155 | - | ○ | - | - | ||
| U0163 | - | ○ | - | - | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | ○ | - |
| U0101 | - | - | ○ | - | ||
| U0120 | - | - | ○ | - | ||
| U0126 | - | - | ○ | - | ||
| U0129 | - | - | ○ | - | ||
| U0151 | - | - | ○ | - | ||
| U0155 | - | - | ○ | - | ||
| U0163 | - | - | ○ | - | ||
| U0164 | - | ○ | ○ | - | ||
| U0182 | - | - | ○ | - | ||
| U0199 | - | - | ○ | - | ||
| U0200 | - | - | ○ | - | ||
| U0208 | ○ | - | ○ | - | ||
| U0230 | - | - | ○ | - | ||
| U023A | - | - | ○ | - | ||
| U0327 | - | - | ○ | - | ||
| U1106 | - | - | ○ | - | ||
| U1115 | - | - | ○ | - | ||
| U1117 | - | - | ○ | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | ○ | |
| U012987 | - | - | - | ○ | ||
| U014087 | - | - | ○ | ○ | ||
| U015587 | - | - | - | ○ | ||
| U016387 | - | - | - | ○ | ||
| U016487 | - | ○ | - | ○ | ||
| U023A87 | - | - | - | ○ | ||
| U111087 | - | - | - | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | - | |
| U0142 | - | - | ○ | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | - | |
| U0140 | - | - | ○ | - | ||
| U0155 | - | - | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | ○ | - | ||
| U0155 | - | - | - | - | ||
| U0242 | - | - | - | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | - | - | - | - |
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U013287 | - | - | - | - | ||
| U014087 | - | - | ○ | - | ||
| U015187 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| U016487 | - | ○ | - | - | ||
| U016887 | - | ○ | - | - | ||
| U018287 | - | - | - | - | ||
| U023087 | - | - | - | - | ||
| U023387 | - | - | - | - | ||
| U023A87 | - | - | - | - | ||
| U110687 | - | - | - | - | ||
| U111087 | - | - | - | - | ||
| U111287 | - | - | - | - | ||
| U111787 | - | - | - | - | ||
| U113387 | - | ○ | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | ○ | - | |
| U015587 | - | - | - | - | ||
| U020887 | ○ | - | - | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| Open in CAN branch line(s) | |||||
| Output ECU | Output DTC | Certification ECU Communication Stop Mode | Headlight ECU LH Communication Stop Mode | Tilt and Telescopic ECU Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Clearance Warning ECU Assembly*1 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U016487 | - | - | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | - | - | - | |
| Bus 5 | Headlight ECU Sub-assembly RH*1 | U0126 | - | - | - |
| U0142 | - | - | - | ||
| U0182 | - | ○ | - | ||
| Luggage Closer Motor Assembly | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | ○ | - | - | ||
| U1117 | - | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | - | |
| Position Control ECU Assembly LH | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | ○ | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | ○ | - | ||
| U0199 | - | - | - | ||
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U023A | - | - | - | ||
| U0327 | ○ | - | - | ||
| U1106 | - | - | - | ||
| U1115 | - | - | ○ | ||
| U1117 | - | - | - | ||
| Meter Mirror Sub-assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U023A87 | - | - | - | ||
| U111087 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | - | - | |
| U0142 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | - | - |
| U0140 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | - | ○ | - | |
| U0101 | - | ○ | - | ||
| U0126 | - | ○ | - | ||
| U0129 | - | ○ | - | ||
| U0142 | - | ○ | - | ||
| U0155 | - | ○ | - | ||
| U0242 | - | ○ | - | ||
| Combination Meter Assembly | U010087 | - | - | - | |
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U013287 | - | - | - | ||
| U014087 | - | - | - | ||
| U015187 | - | - | - | ||
| U016387 | - | - | - | ||
| U016487 | - | - | - | ||
| U016887 | ○ | - | - | ||
| U018287 | - | ○ | - | ||
| U023087 | - | - | - | ||
| U023387 | - | - | - | ||
| U023A87 | - | - | - | ||
| U110687 | - | - | - | ||
| U111087 | - | - | - | ||
| U111287 | - | - | - | ||
| U111787 | - | - | - | ||
| U113387 | ○ | - | - | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | ○ | |
| U015587 | - | - | ○ | ||
| U020887 | - | - | ○ | ||
| - | Trouble Mode | |||||
|---|---|---|---|---|---|---|
| Open in CAN main bus line(s) | ||||||
| Output ECU | Output DTC | Central Gateway ECU (Network Gateway ECU) | No. 1 Junction Connector to No. 8 CAN Junction Connector | No. 8 CAN Junction Connector to No. 5 CAN Junction Connector | Combination Meter ECU Communication Stop Mode | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Bus 1 | Clearance Warning ECU Assembly*1 | U0100 | - | - | - | - |
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | ○ | ○ | ○ | - | ||
| U0155 | ○ | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | - | ||
| U0265 | - | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U014087 | ○ | ○ | ○ | - | ||
| U015587 | ○ | ○ | ○ | ○ | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | ○ | ○ | ○ | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | - | |
| U0125 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | ○ | ○ | ○ | - | ||
| Rear Television Camera Assembly | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | ○ | ○ | ○ | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| ECM | - | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Bus 3 | Stereo Component Equalizer Assembly | U010087 | - | - | - | - |
| U012987 | - | - | - | - | ||
| U014087 | ○ | ○ | ○ | - | ||
| U016487 | ○ | ○ | ○ | - | ||
| Radio Receiver Assembly*1 | U0129 | - | - | - | - | |
| U0140 | ○ | ○ | ○ | - | ||
| U0155 | ○ | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | - | ||
| U0198 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | ○ | ○ | ○ | - | |
| U015587 | ○ | ○ | ○ | ○ | ||
| U016387 | - | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0122 | - | - | - | - | ||
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | - | |
| Steering Sensor | - | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | - | |
| U010187 | - | - | - | - | ||
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U014087 | ○ | ○ | ○ | - | ||
| U015187 | - | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - | - |
| Bus 5 | Outer Mirror Control ECU Assembly RH | U0142 | - | ○ | ○ | - |
| Headlight ECU Sub-assembly RH*1 | U0126 | ○ | - | - | - | |
| U0142 | - | ○ | ○ | - | ||
| U0182 | - | ○ | ○ | - | ||
| Luggage Closer Motor Assembly | U0101 | ○ | ○ | - | - | |
| U0122 | ○ | ○ | - | - | ||
| U0142 | - | - | ○ | - | ||
| U0155 | - | - | ○ | ○ | ||
| U0327 | - | - | ○ | - | ||
| U1117 | ○ | ○ | - | - | ||
| Outer Mirror Control ECU Assembly LH | U0142 | - | - | ○ | - | |
| Position Control ECU Assembly LH | - | - | - | - | - | |
| Air Conditioning Amplifier Assembly | U0100 | ○ | ○ | ○ | - | |
| U0131 | ○ | ○ | ○ | - | ||
| U0142 | - | - | - | - | ||
| U0151 | ○ | ○ | ○ | - | ||
| U0155 | - | - | - | ○ | ||
| U0163 | ○ | ○ | ○ | - | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | ○ | ○ | ○ | - | |
| U0101 | ○ | ○ | ○ | - | ||
| U0120 | - | - | - | - | ||
| U0126 | ○ | ○ | ○ | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0151 | ○ | ○ | ○ | - | ||
| U0155 | - | - | - | ○ | ||
| U0163 | ○ | ○ | ○ | - | ||
| U0164 | ○ | ○ | ○ | - | ||
| U0182 | - | - | - | - | ||
| U0199 | - | ○ | ○ | - | ||
| U0200 | - | - | ○ | - | ||
| U0208 | - | - | ○ | - | ||
| U0230 | ○ | ○ | - | - | ||
| U023A | ○ | ○ | ○ | - | ||
| U0327 | - | - | - | - | ||
| U1106 | ○ | ○ | ○ | - | ||
| U1115 | - | - | - | - | ||
| U1117 | ○ | ○ | ○ | - | ||
| Bus 5 | Meter Mirror Sub-assembly | U010087 | ○ | ○ | ○ | - |
| U012987 | ○ | ○ | ○ | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | ○ | ||
| U016387 | ○ | ○ | ○ | - | ||
| U016487 | - | - | - | - | ||
| U023A87 | ○ | ○ | ○ | - | ||
| U111087 | ○ | ○ | ○ | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | ○ | ○ | - | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | ○ | ○ | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | ○ | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | ○ | ○ | ○ | - | |
| U0101 | ○ | ○ | ○ | - | ||
| U0126 | ○ | ○ | ○ | - | ||
| U0129 | ○ | ○ | ○ | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | ○ | ||
| U0242 | - | ○ | ○ | - | ||
| Bus 5 | Combination Meter Assembly | U010087 | ○ | ○ | ○ | ○ |
| U012687 | ○ | ○ | ○ | ○ | ||
| U012987 | ○ | ○ | ○ | ○ | ||
| U013187 | ○ | ○ | ○ | ○ | ||
| U013287 | ○ | ○ | ○ | ○ | ||
| U014087 | - | - | - | ○ | ||
| U015187 | ○ | ○ | ○ | ○ | ||
| U016387 | ○ | ○ | ○ | ○ | ||
| U016487 | - | - | - | ○ | ||
| U016887 | - | - | - | ○ | ||
| U018287 | - | - | - | ○ | ||
| U023087 | - | - | ○ | ○ | ||
| U023387 | ○ | ○ | ○ | ○ | ||
| U023A87 | ○ | ○ | ○ | ○ | ||
| U110687 | ○ | ○ | ○ | ○ | ||
| U111087 | ○ | ○ | ○ | ○ | ||
| U111287 | ○ | ○ | ○ | ○ | ||
| U111787 | ○ | ○ | ○ | ○ | ||
| U113387 | - | - | - | ○ | ||
| Multiplex Tilt and Telescopic ECU | U014287 | - | - | - | - | |
| U015587 | - | - | - | ○ | ||
| U020887 | - | - | ○ | - | ||
| - | Trouble Mode | ||||
|---|---|---|---|---|---|
| CAN bus lines short circuit or short to GND | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Bus 1 | Clearance Warning ECU Assembly*1 | U0100 | - | - | - |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0265 | - | - | - | ||
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | ○ | ○ | ○ | ||
| U015587 | ○ | ○ | ○ | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Parking Assist ECU*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor RH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | ○ | ○ | ○ | ||
| Rear Television Camera Assembly | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U023B | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| ECM | - | - | - | - | |
| Bus 3 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Stereo Component Equalizer Assembly | U010087 | - | - | - | |
| U012987 | - | - | - | ||
| U014087 | ○ | ○ | ○ | ||
| U016487 | ○ | ○ | ○ | ||
| Bus 3 | Radio Receiver Assembly*1 | U0129 | - | - | - |
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | ○ | ○ | ○ | |
| U015587 | ○ | ○ | ○ | ||
| U016387 | - | - | - | ||
| Option Connector (Bus Buffer ECU) | - | - | - | - | |
| Bus 4 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Absorber Control ECU*1 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Steering Sensor | - | - | - | - | |
| Airbag ECU Assembly | U0154 | - | - | - | |
| Rack and Pinion Power Steering Gear Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Brake Actuator Assembly*2 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U014087 | ○ | ○ | ○ | ||
| U015187 | - | - | - | ||
| Bus 5 | Central Gateway ECU (Network Gateway ECU)*3 | - | - | - | - |
| Outer Mirror Control ECU Assembly RH | U0142 | ○ | ○ | ○ | |
| Headlight ECU Sub-assembly RH*1 | U0126 | ○ | ○ | ○ | |
| U0142 | ○ | ○ | ○ | ||
| U0182 | ○ | ○ | ○ | ||
| Luggage Closer Motor Assembly | U0101 | ○ | ○ | ○ | |
| U0122 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0327 | ○ | ○ | ○ | ||
| U1117 | ○ | ○ | ○ | ||
| Outer Mirror Control ECU Assembly LH | U0142 | ○ | ○ | ○ | |
| Bus 5 | Position Control ECU Assembly LH | - | - | - | - |
| Air Conditioning Amplifier Assembly | U0100 | ○ | ○ | ○ | |
| U0131 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| Main Body ECU (Multiplex Network Body ECU) | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0120 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0182 | ○ | ○ | ○ | ||
| U0199 | ○ | ○ | ○ | ||
| U0200 | ○ | ○ | ○ | ||
| U0208 | ○ | ○ | ○ | ||
| U0230 | ○ | ○ | ○ | ||
| U023A | ○ | ○ | ○ | ||
| U0327 | ○ | ○ | ○ | ||
| U1106 | ○ | ○ | ○ | ||
| U1115 | ○ | ○ | ○ | ||
| U1117 | ○ | ○ | ○ | ||
| Meter Mirror Sub-assembly | U010087 | ○ | ○ | ○ | |
| U012987 | ○ | ○ | ○ | ||
| U014087 | ○ | ○ | ○ | ||
| U015587 | ○ | ○ | ○ | ||
| U016387 | ○ | ○ | ○ | ||
| U016487 | ○ | ○ | ○ | ||
| U023A87 | ○ | ○ | ○ | ||
| U111087 | ○ | ○ | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | ○ | ○ | |
| U0142 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | ○ | ○ | |
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| Headlight ECU Sub-assembly LH*1 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0242 | ○ | ○ | ○ | ||
| Bus 5 | Combination Meter Assembly | U010087 | ○ | ○ | ○ |
| U012687 | ○ | ○ | ○ | ||
| U012987 | ○ | ○ | ○ | ||
| U013187 | ○ | ○ | ○ | ||
| U013287 | ○ | ○ | ○ | ||
| U014087 | ○ | ○ | ○ | ||
| U015187 | ○ | ○ | ○ | ||
| U016387 | ○ | ○ | ○ | ||
| U016487 | ○ | ○ | ○ | ||
| U016887 | ○ | ○ | ○ | ||
| U018287 | ○ | ○ | ○ | ||
| U023087 | ○ | ○ | ○ | ||
| U023387 | ○ | ○ | ○ | ||
| U023A87 | ○ | ○ | ○ | ||
| U110687 | ○ | ○ | ○ | ||
| U111087 | ○ | ○ | ○ | ||
| U111287 | ○ | ○ | ○ | ||
| U111787 | ○ | ○ | ○ | ||
| U113387 | ○ | ○ | ○ | ||
| Multiplex Tilt and Telescopic ECU | U014287 | ○ | ○ | ○ | |
| U015587 | ○ | ○ | ○ | ||
| U020887 | ○ | ○ | ○ | ||
READ NEXT:
Diagnosis System
DIAGNOSIS SYSTEM CHECK FOR INSTALLED SYSTEMS (ECUS AND SENSORS) THAT USE CAN COMMUNICATION (a) The systems (ECUs and sensors) that use CAN communication vary depending on the vehicle and optional equi
Terminals Of Ecu
TERMINALS OF ECU NOTICE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the di
Problem Symptoms Table
PROBLEM SYMPTOMS TABLE HINT:
Use the table below to help determine the cause of problem symptoms.
Inspect the fuses and relays related to this system before inspecting the suspected areas below.
SEE MORE:
Reassembly
REASSEMBLY CAUTION / NOTICE / HINT NOTICE: This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts. Click here PROCEDURE 1. INSTALL STRAIGHT PIN NOTICE: It is not necessary to remove the straight pins unless they
Sensor (Motor) Failure (B2341,B2344)
DESCRIPTION When the sliding roof ECU (sliding roof drive gear sub-assembly) detects a motor malfunction and the sliding roof operation is stopped, DTC B2341 is stored. When the sliding roof ECU (sliding roof drive gear sub-assembly) detects a gear position malfunction and the sliding roof operation
