Lexus ES: Dtc Check / Clear
DTC CHECK / CLEAR
CHECK FOR DTC
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Motor Generator / Trouble Codes.
Powertrain > Motor Generator > Trouble Codes(e) Check the DTCs and freeze frame data, and then write them down.
(f) Check the details of the DTCs.
| Display Item | Description |
|---|---|
| Test Failed | Shows the malfunction judgment results during the current trip. |
| Pending | Shows the malfunction judgment results up to now (Indicates the possibility of a malfunction when no DTC is confirmed.) |
| Confirmed | Shows the DTCs confirmed up to now (The number of current trips differs for each DTC.) |
- A pending DTC is a DTC that is stored in the motor generator control ECU during the 1st trip when 2 trip detection logic is used.
- Freeze frame data is stored for each of the latest result DTCs, pending DTCs and confirmed DTCs.
CHECK FREEZE FRAME DATA
(a) If a DTC is present, select it in order to display its freeze frame data.
(b) Read the freeze frame data recorded when the DTC was stored.
CHECK TIME STAMP
HINT:
By checking Time Stamp, the time and order in which DTCs were stored in an ECU can be checked.
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Enter the following menus: Health Check.
(d) Perform the following steps when the data setting screen is displayed.
(e) Select the systems for which to perform Health Check and check for time stamp data.
- Powertrain
- Chassis
- Body
- Store All Data
(f) Select "Yes" when "Do you want to store time stamp data?" is displayed.
HINT:
If "Yes" is not selected, time stamp data will not be stored.
(g) After Health Check has completed, select "Time Stamp Data" to display the Time Stamp screen.
(h) Select the desired system from the drop-down list on the bottom of the Time Stamp screen.
(i) Check the order and time which DTCs were stored for the selected system.
CHECK FOR DTC (SYSTEMS EXCEPT MOTOR GENERATOR CONTROL ECU)
HINT:
The motor generator control ECU maintains communication with other ECUs, such as the hybrid vehicle control ECU, ECM and skid control ECU assembly. Therefore, if the motor generator control ECU outputs a DTC, it is necessary to check for and make a note of any DTCs stored for other systems.
(a) If DTCs are present, check the relevant systems.
HINT:
If DTCs for the CAN communication system are present in addition to other DTCs, first troubleshoot and repair in the CAN communication system malfunctions.
CLEAR DTC
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Motor Generator / Trouble Codes.
(e) Clear the DTCs and freeze frame data.
Powertrain > Motor Generator > Clear DTCsNOTICE:
Clearing the DTCs will also clear the freeze frame data, diagnosis related information.

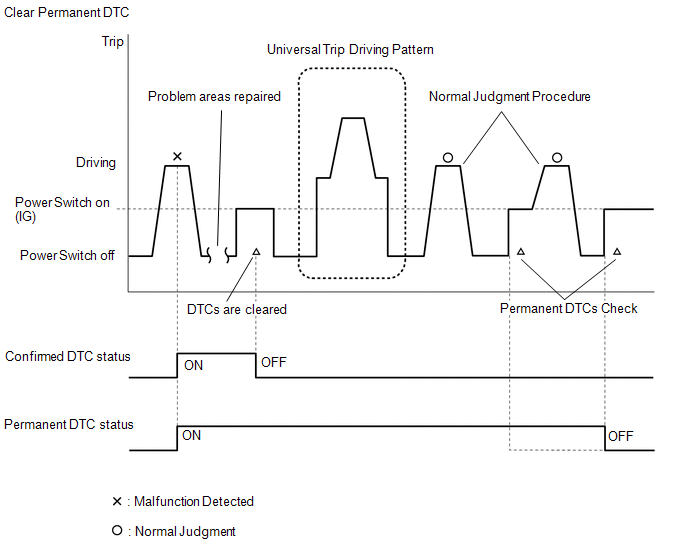

CLEAR PERMANENT DTC
- After clearing current DTCs using the Techstream (or by disconnecting the cable from the negative (-) auxiliary battery terminal), permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.
-
To clear permanent DTCs, all of the following conditions must be are met:
- There is a history that universal trip driving was performed.
- The vehicle has been judged as normal for 2 trips. (Normal judgment does not have to be performed in 2 consecutive trip, but normal judgment should occur in the latest trip.)
- No malfunctions are detected.
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Motor Generator / Trouble Codes.
Powertrain > Motor Generator > Trouble CodesHINT:
If "YES" is displayed for the value of "PERMANENT" at the top right of the Techstream screen, permanent DTCs are stored.
(e) Select the "Generic" tab.
(f) Check if permanent DTCs are stored.
HINT:
If permanent DTCs are not output, it is not necessary to continue this procedure.
(g) Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Powertrain > Motor Generator > Clear DTCsNOTICE:
Do not clear the DTCs or disconnect the cable from the auxiliary battery terminal after performing this step.
(h) Perform the universal trip.
CAUTION:
When performing the driving pattern, obey all speed limits and traffic laws.
HINT:

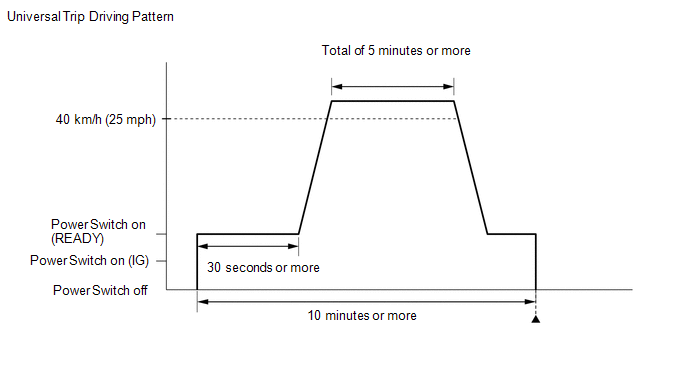

The universal trip driving pattern and normal judgment procedure can be performed consecutively in the same driving cycle.
.png)
.png)
(1) Turn the power switch on (READY) and wait for 30 seconds or more.
(2) Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more.
HINT:
It is possible to complete the drive pattern even if the vehicle decelerates to less than 40 km/h (25 mph) during the driving cycle provided that the vehicle is driven at 40 km/h (25 mph) or more for a total of 5 minutes.
(3) Allow 10 minutes or more to elapse from the time the power switch turned on (READY).
(i) Turn the power switch off and wait for 2 minutes or more.
(j) Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.
HINT:
Do not turn the power switch off by mistake during this step.
(k) With power switch on (READY) and wait for 5 seconds or more.
(l) Turn the power switch off and wait for 2 minutes or more.
(m) Turn the power switch on (IG).
(n) Enter the following menus: Powertrain / Motor Generator / Trouble Codes.
Powertrain > Motor Generator > Trouble Codes(o) Check that the permanent DTCs have been cleared.
HINT:
If permanent DTCs are not output, it is not necessary to continue this procedure.
(p) Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.
HINT:
Do not turn the power switch off by mistake during this step.
(q) With power switch on (READY) and wait for 5 seconds or more.
(r) Turn the power switch off and wait for 2 minutes or more.
(s) Turn the power switch on (IG).
(t) Enter the following menus: Powertrain / Motor Generator / Trouble Codes.
Powertrain > Motor Generator > Trouble Codes(u) Check that the permanent DTCs have been cleared.
HINT:
Permanent DTCs will be cleared if a normal judgment is obtained during 3 consecutive driving cycles with the MIL illuminated.
REPLACE INVERTER WITH CONVERTER ASSEMBLY PARTS
NOTICE:
This procedure is designed to be used as a reference for the inspection procedure of each DTC. Do not perform repairs using only this procedure.
(a) Check the DTCs that were output when the vehicle was brought to the workshop. Refer to DTC Malfunctioning Area Table and replace parts as necessary.
HINT:
- Using only the DTCs listed in the DTC Malfunctioning Area Table, perform the following judgment.
- If multiple DTCs with different malfunctioning areas were output when the vehicle was brought to the workshop, replace all of the respective malfunctioning parts. If any of the output DTCs list the inverter with converter assembly as the malfunctioning area, it is only necessary to replace the inverter with converter assembly.
- If any malfunctions of inverter with converter assembly related parts are found, or if signs of coolant (LLC) leaks, water intrusion, excessive deposits or damage are found in the inverter with converter assembly, replace the inverter with converter assembly.
DTC MALFUNCTIONING AREA TABLE
(a) Using DTC Malfunctioning Area Table, confirm the malfunctioning area indicated by the DTC.
- Motor generator control ECU kit (MG ECU)
- HV converter kit (DCDC converter)
- Inverter with converter assembly
| DTC | MG ECU | DCDC converter |
| Inverter with converter assembly |
|---|---|---|---|---|
| P0A1B49 | - | - | - | ○ |
| P0A1B94 | ○ | - | - | - |
| P0A9300 | - | - | - | ○ |
| P0AA000 | - | - | - | ○ |
| P0AA073 | - | - | - | ○ |
| P0AA373 | - | - | - | ○ |
| P0AA649 | - | - | - | ○ |
| P0AE173 | - | - | - | ○ |
| P0C7600 | - | - | - | ○ |
| P0D2D1C | - | - | - | ○ |
| P0E311C | - | - | - | ○ |
| P1C2D62 | - | - | - | ○ |
| P1C6A9F | ○ | - | - | - |
| P1C6C9F | ○ | - | - | - |
| P1C7E49 | - | - | - | ○ |
| P1C7F49 | - | - | - | ○ |
| P1C8149 | - | - | - | ○ |
| P1C8249 | - | - | - | ○ |
| P1C8349 | - | - | - | ○ |
| P1CE213 | - | - | - | ○ |
| P1CE292 | - | - | - | ○ |
| P300449 | - | - | - | ○ |
| P312387 | - | - | - | ○ |
| P31B300 | - | - | - | ○ |
| P321E9F | - | - | - | ○ |
| P33BF9F | ○ | - | - | - |
| DTC | MG ECU | DCDC converter |
| Inverter with converter assembly |
|---|---|---|---|---|
| *1: Because the components to be replaced will differ depending on the conditions, follow the diagnostic procedure for the applicable DTC. | ||||
| P033500 | ○ | - | - | - |
| P033531 | ○ | - | - | - |
| P034000 | ○ | - | - | - |
| P034031 | ○ | - | - | - |
| P062F44 | ○ | - | - | - |
| P062F46 | ○ | - | - | - |
| P06B01C | ○ | - | - | - |
| P06D61C | ○ | - | - | - |
| P0A0011 | ○ | - | - | - |
| P0A0015 | ○ | - | - | - |
| P0A001C | - | - | - | ○ |
| P0A0812 | - | - | ○ | - |
| P0A0814 | - | - | ○ | - |
| P0A1112 | - | - | ○ | - |
| P0A1114 | - | - | ○ | - |
| P0A1A47 | ○ | - | - | - |
| P0A1A49 | ○ | - | - | - |
| P0A1B1F | ○ | - | - | - |
| P0A3F16 | ○ | - | - | - |
| P0A3F1F | ○ | - | - | - |
| P0A3F21 | ○ | - | - | - |
| P0A3F22 | ○ | - | - | - |
| P0A4B16 | ○ | - | - | - |
| P0A4B1F | ○ | - | - | - |
| P0A4B21 | ○ | - | - | - |
| P0A4B22 | ○ | - | - | - |
| P0A6012 | - | - | - | ○ |
| P0A6014 | - | - | - | ○ |
| P0A601C | - | - | - | ○ |
| P0A601F | - | - | - | ○ |
| P0A6312 | - | - | - | ○ |
| P0A6314 | - | - | - | ○ |
| P0A631C | - | - | - | ○ |
| P0A631F | - | - | - | ○ |
| P0A7872 | - | - | - | ○ |
| P0A7873 | - | - | - | ○ |
| P0A789E | - | - | - | ○ |
| P0A7A72 | - | - | - | ○ |
| P0A7A73 | - | - | - | ○ |
| P0A7A9E | - | - | - | ○ |
| P0A9000 | - | - | - | ○ |
| P0A9200 | - | - | - | ○ |
| P0A949E | - | - | - | ○ |
| P0AED11 | ○ | - | - | - |
| P0AED15 | ○ | - | - | - |
| P0AED1C | - | - | - | ○ |
| P0BE512 | - | - | - | ○ |
| P0BE514 | - | - | - | ○ |
| P0BE51F | - | - | - | ○ |
| P0BE528 | - | - | - | ○ |
| P0BE912 | - | - | - | ○ |
| P0BE914 | - | - | - | ○ |
| P0BE91F | - | - | - | ○ |
| P0BE928 | - | - | - | ○ |
| P0BED12 | - | - | - | ○ |
| P0BED14 | - | - | - | ○ |
| P0BED1F | - | - | - | ○ |
| P0BED28 | - | - | - | ○ |
| P0BFD62 | - | - | - | ○ |
| P0BFF1D | - | - | - | ○ |
| P0C1900 | - | - | - | ○ |
| P0C3811 | ○ | - | - | - |
| P0C3815 | ○ | - | - | - |
| P0C381C | - | - | - | ○ |
| P0C3D11 | ○ | - | - | - |
| P0C3D15 | ○ | - | - | - |
| P0C3D1C | - | - | - | ○ |
| P0C5013 | ○ | - | - | - |
| P0C5016 | ○ | - | - | - |
| P0C5017 | ○ | - | - | - |
| P0C501F | ○ | - | - | - |
| P0C5A13 | ○ | - | - | - |
| P0C5A16 | ○ | - | - | - |
| P0C5A17 | ○ | - | - | - |
| P0C5A1F | ○ | - | - | - |
| P0C6413 | ○ | - | - | - |
| P0C6416 | ○ | - | - | - |
| P0C6417 | ○ | - | - | - |
| P0C641F | ○ | - | - | - |
| P0C6913 | ○ | - | - | - |
| P0C6916 | ○ | - | - | - |
| P0C6917 | ○ | - | - | - |
| P0C691F | ○ | - | - | - |
| P0C7917 | - | - | - | ○ |
| P0CA300 | - | - | - | ○ |
| P0D2D16 | ○ | - | - | - |
| P0D2D17 | ○ | - | - | - |
| P0D2D1F | ○ | - | - | - |
| P0D3319 | - | - | - | ○ |
| P0DFA62 | - | - | - | ○ |
| P0E0012 | - | - | - | ○ |
| P0E0014 | - | - | - | ○ |
| P0E001F | - | - | - | ○ |
| P0E0028 | - | - | - | ○ |
| P0E0412 | - | - | - | ○ |
| P0E0414 | - | - | - | ○ |
| P0E041F | - | - | - | ○ |
| P0E0428 | - | - | - | ○ |
| P0E0812 | - | - | - | ○ |
| P0E0814 | - | - | - | ○ |
| P0E081F | - | - | - | ○ |
| P0E0828 | - | - | - | ○ |
| P0E3116 | ○ | - | - | - |
| P0E3117 | ○ | - | - | - |
| P0E311F | ○ | - | - | - |
| P0E5111 | - | - | - | ○ |
| P0E5115 | - | - | - | ○ |
| P0E511F | - | - | - | ○ |
| P0E5128 | - | - | - | ○ |
| P0E512A | - | - | - | ○ |
| P0E5717 | - | - | - | ○ |
| P0E5811 | ○ | - | - | - |
| P0E5815 | ○ | - | - | - |
| P0E581C | - | - | - | ○ |
| P0E7100 | - | - | - | ○ |
| P1C2A1C | ○ | - | - | - |
| P1C2A49 | ○ | - | - | - |
| P1C2B1C | ○ | - | - | - |
| P1C2B49 | ○ | - | - | - |
| P1C2E46 | ○ | - | - | - |
| P1C5D19 | - | - | - | ○ |
| P1C5F19 | - | - | - | ○ |
| P1C601F | ○ | - | - | - |
| P1C621F | ○ | - | - | - |
| P1C641F | ○ | - | - | - |
| P1C651F | ○ | - | - | - |
| P1C671F | - | - | - | ○ |
| P1C691F | - | - | - | ○ |
| P1CA51D | - | - | - | ○ |
| P1CAC49 | ○ | - | - | - |
| P1CAD49 | ○ | - | - | - |
| P1CAF38 | ○ | - | - | - |
| P1CB038 | ○ | - | - | - |
| P1CB59E | - | - | - | ○ |
| P1CB69E | - | - | - | ○ |
| P1CCC96 | *1 | |||
| P1CFF62 | - | - | - | ○ |
| P31241F | ○ | - | - | - |
| P312487 | ○ | - | - | - |
| P313383 | ○ | - | - | - |
| P313386 | ○ | - | - | - |
| P313387 | ○ | - | - | - |
| P313483 | ○ | - | - | - |
| P313486 | ○ | - | - | - |
| P313487 | ○ | - | - | - |
| P314F1F | - | - | - | ○ |
| P31531D | - | - | - | ○ |
| U010087 | ○ | - | - | - |
| U029387 | ○ | - | - | - |
| U117087 | ○ | - | - | - |
READ NEXT:
Freeze Frame Data
FREEZE FRAME DATA FREEZE FRAME DATA HINT: The motor generator control ECU records vehicle and driving condition information as freeze frame data the moment a DTC is stored. It can be used for estimati
Vehicle Behavior Chart
VEHICLE BEHAVIOR CHART VEHICLE BEHAVIOR CHART (a) Vehicle behavior categorized by DTC If a DTC is output, the vehicle behaves as follows. DTC No. Detection Item Vehicle Behavior when DTC is Out
Data List / Active Test
DATA LIST / ACTIVE TEST DATA LIST NOTICE:
Some Data List values may vary significantly if there are slight differences in the environment in which the vehicle is operating when measurements are obt
SEE MORE:
Installation
INSTALLATION PROCEDURE 1. INSTALL INVERTER WATER PUMP ASSEMBLY (a) Connect the No. 2 inverter cooling hose and No. 3 inverter cooling hose to the inverter water pump assembly and slide the 2 clips to secure them. NOTICE:
Make sure to align the alignment marks of the hoses with the ribs of th
DC/DC Converter Enable Component Internal Failure (P1CCC96)
DESCRIPTION The DC/DC converter converts the DC 244.8 V of the HV battery into DC 12 V in order to supply power to areas such as the vehicle lighting system, audio system and various ECUs. Additionally, it charges the auxiliary battery. A transistor bridge circuit initially converts DC 244.8 V into
